Greasing
About Greasing
Since there may be adhesion or damage due
to lack of grease on moving parts, they must
be greased.
Add urea-based No. 2 grease in accordance
with the Maintenance Schedule.
Other locations where the specified grease or
lubricant is used are indicated in "Greasing
Points".
Add grease using the specified grease or
lubricant.

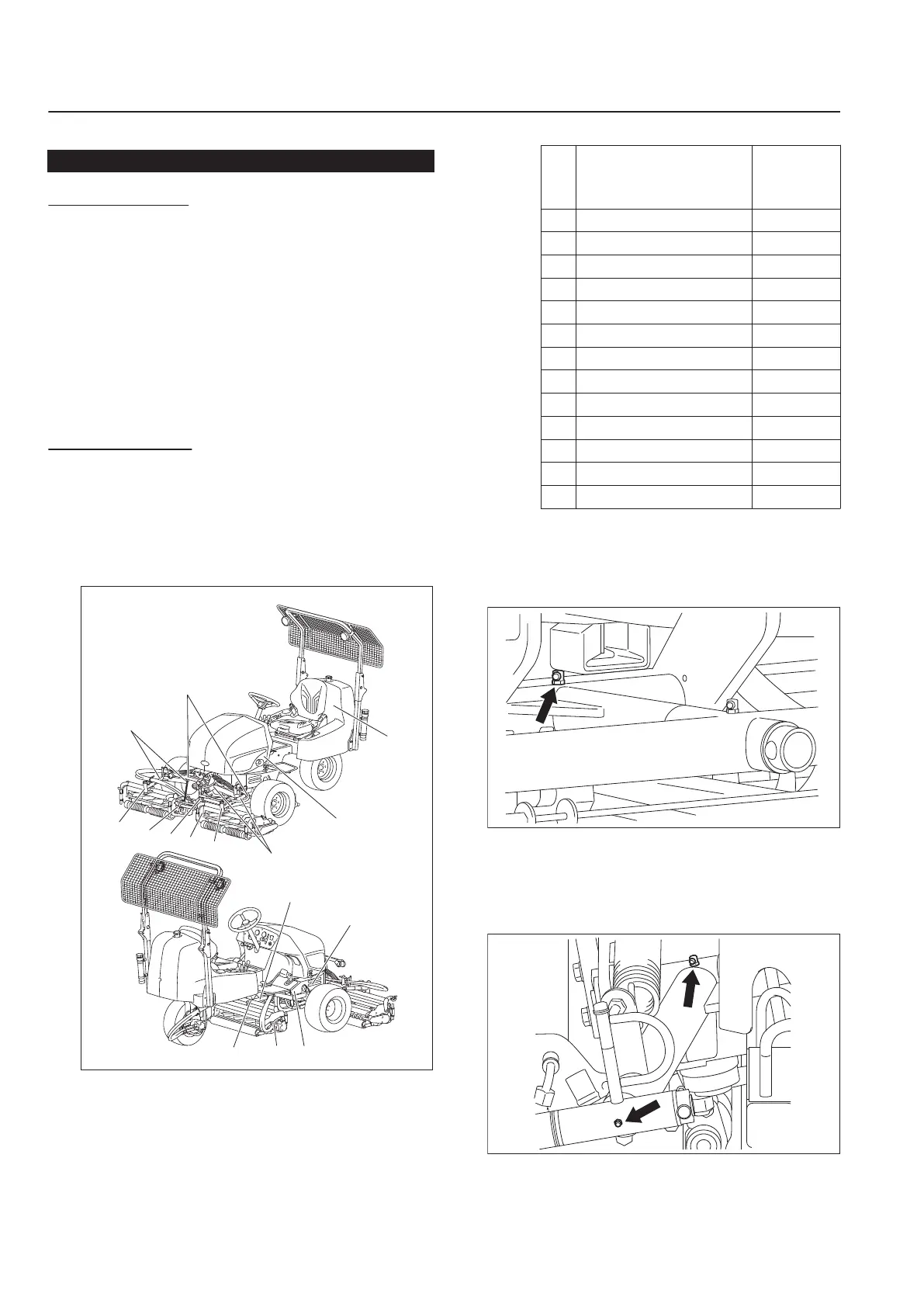

Greasing Points
Grease nipples are installed in the following
locations.
Add grease every 50 hours of operation.
If specified locations, periods and grease are
additionally described below, follow the
instructions.
9
1
1
1
813
2
3,4,6,7
5
10
11
13
13
12
12
6348CD8D
Greasing Points_001
Location
No. of
greasing
points
1 Lift arm fulcrum 5
2 Mower arm fulcrum 1
3 Brake pedal shaft fulcrum 1
4 Brake lever shaft 1
5 Rear wheel housing 1
6 Tension lever 1
7 Neutral cam lever 1
8 Traveling pedal shaft fulcrum 1
9 Traveling pedal relay lever 1
10 Front wheel brake lever 2
11 Mower lift cam lever 1
12 Mower coupling 2
13 Reel motor shaft 3
Lift arm fulcrum
Mower unit #1
There is one greasing point on the lift arm
fulcrum connected to the mower unit.
8bq62b-269
Greasing Points_002
Mower units #2 and #3
There are two greasing points on the lift
arm fulcrum connected to each mower
unit.
8bq62b-270
Greasing Points_003
1.
