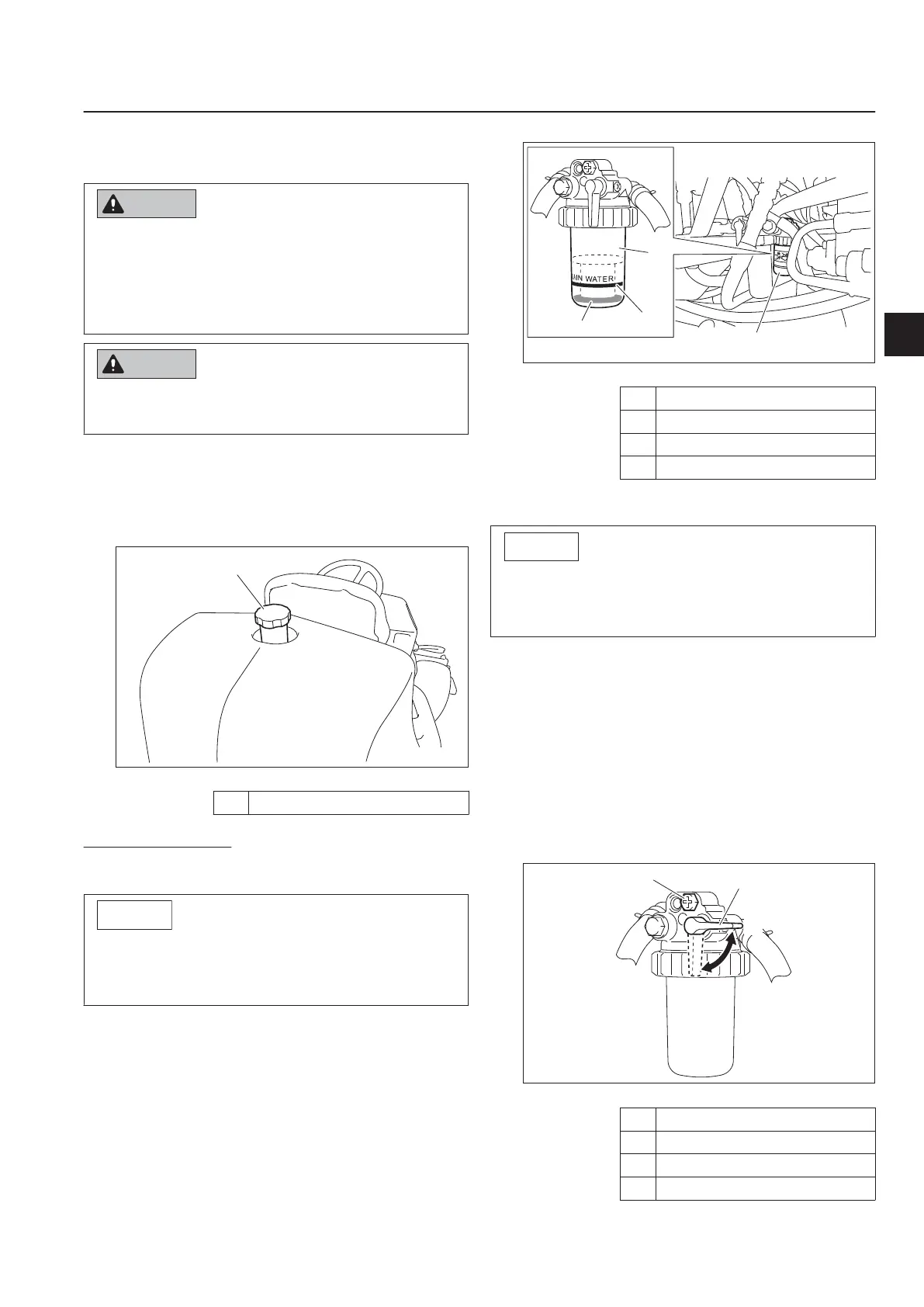

Supply of Fuel
Warning
Do not supply fuel above F (FULL) level of the
fuel gauge.
If you supply too much fuel, it might overflow
from the cap when you travel or work on a
slope.
Warning
Keep away from fire while refueling.
Do not smoke while refueling.
If the fuel gauge in the meter panel indicates
a level close to E (EMPTY), supply fuel
(diesel) at your earliest convenience.
The fuel tank capacity is approximately 25.0
dm
3
(25.0 L).
1
2e4emp-006
Supply of Fuel_001
1
Tank cap
Water Separator
Inspection of Water Separator
Important
Water-contaminated fuel may impair engine
startability, decrease output or damage engine
parts.
The water separator removes water from the
fuel.
Make sure that debris and water have not
accumulated in the cup.
With the float raised, water contamination is
confirmed.
When the float reaches the drain level,
drain the water.
1.
2
1
4
3
v1spa6-007
Inspection of Water Separator_001
1
Water Separator
2 Float
3 Cup
4 Drain level
Draining of Water Separator
Important
Water-contaminated fuel may impair engine
startability, decrease output or damage engine
parts.
Drain water from the water separator
according to the maintenance schedule.
And drain water whenever the float is raised
by water.
Stop the engine, and then turn the key
switch to the "OFF" position.
Place a container under the water
separator.
Close the fuel cock of the fuel filter.
Close the fuel cock of the water separator.
1
2
A
B
v1spa6-005
Draining of Water Separator_001
1
Fuel cock
2 Air-bleeding plug
A ON (open)
B OFF (close)
1.
2.
3.
4.
