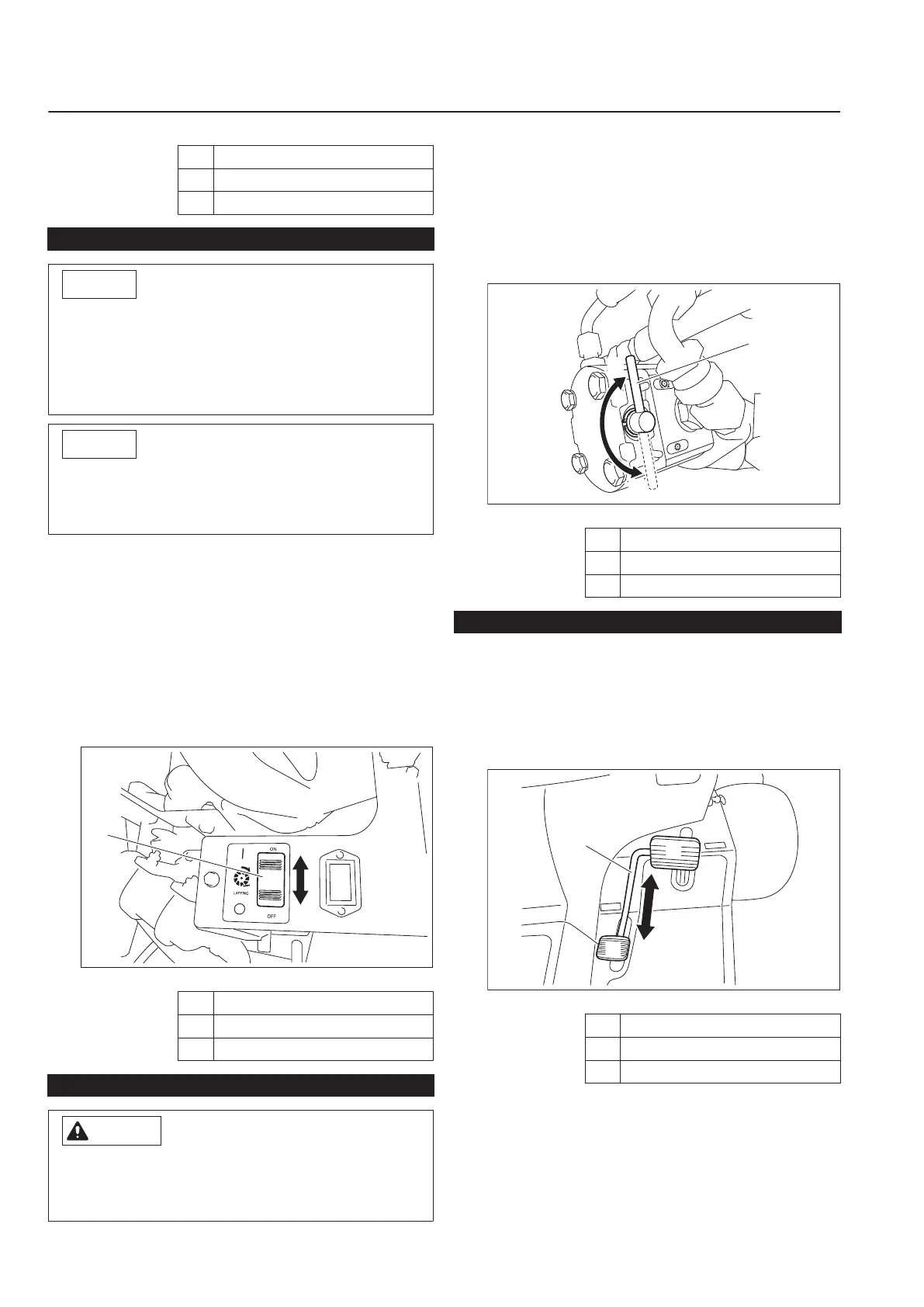

Baroness LM331 - Description of Functions

1 Reel rotation switch
A Rotation
B Stop
Reel Reverse Switch
Important
Do not switch the reel reverse switch to the
"ON" or "OFF" position while the reel cutter
(cutting cylinder) is rotating.
Otherwise, a hydraulic system malfunction will
occur.
Important
If the reel rotation switch is not set to the
"Rotation" position, the reel cutter (cutting
cylinder) will not rotate.
The reel reverse switch is located under the
hood.
This switches the rotation direction of the reel
cutter (cutting cylinder).
When the reel reverse switch is set to the "ON"
position, the reel cutters (cutting cylinders) of all
mower units rotate in reverse (back lapping
rotation). When the reel reverse switch is set to
the "OFF" position, the reel cutters (cutting
cylinders) rotate normally.
A
B
1
kp6cmu-005
Reel Reverse Switch_001
1
Reel reverse switch
A ON (reverse rotation)
B OFF (normal rotation)
Reel Rotation/Stop Switching Lever
Caution
Before operating the reel rotation/stop
switching lever, be sure to set the reel rotation
switch to the "Stop" position.
The reel rotation/stop switching lever is located
on the reel motor attached to each mower unit. It
is used during cutting and back lapping.
Shift the lever(s) to the "Rotation" position only
for the mower unit(s) to be used for cutting or
back lapping. Leave the lever(s) for other mower
units in the "Stop" position.
A
B
1
zzpqiy-003
Reel Rotation/Stop Switching Lever_001
1
Reel rotation/stop switching lever
A Rotation
B Stop
Traveling Pedal
The traveling pedal is located in the right foot
area.
When the forward end is depressed, the
machine travels forward. When the backward
end is depressed, the machine travels
backward.
1
A
B
yo3h9x-010
Traveling Pedal_001
1
Traveling pedal
A Forward
B Backward
