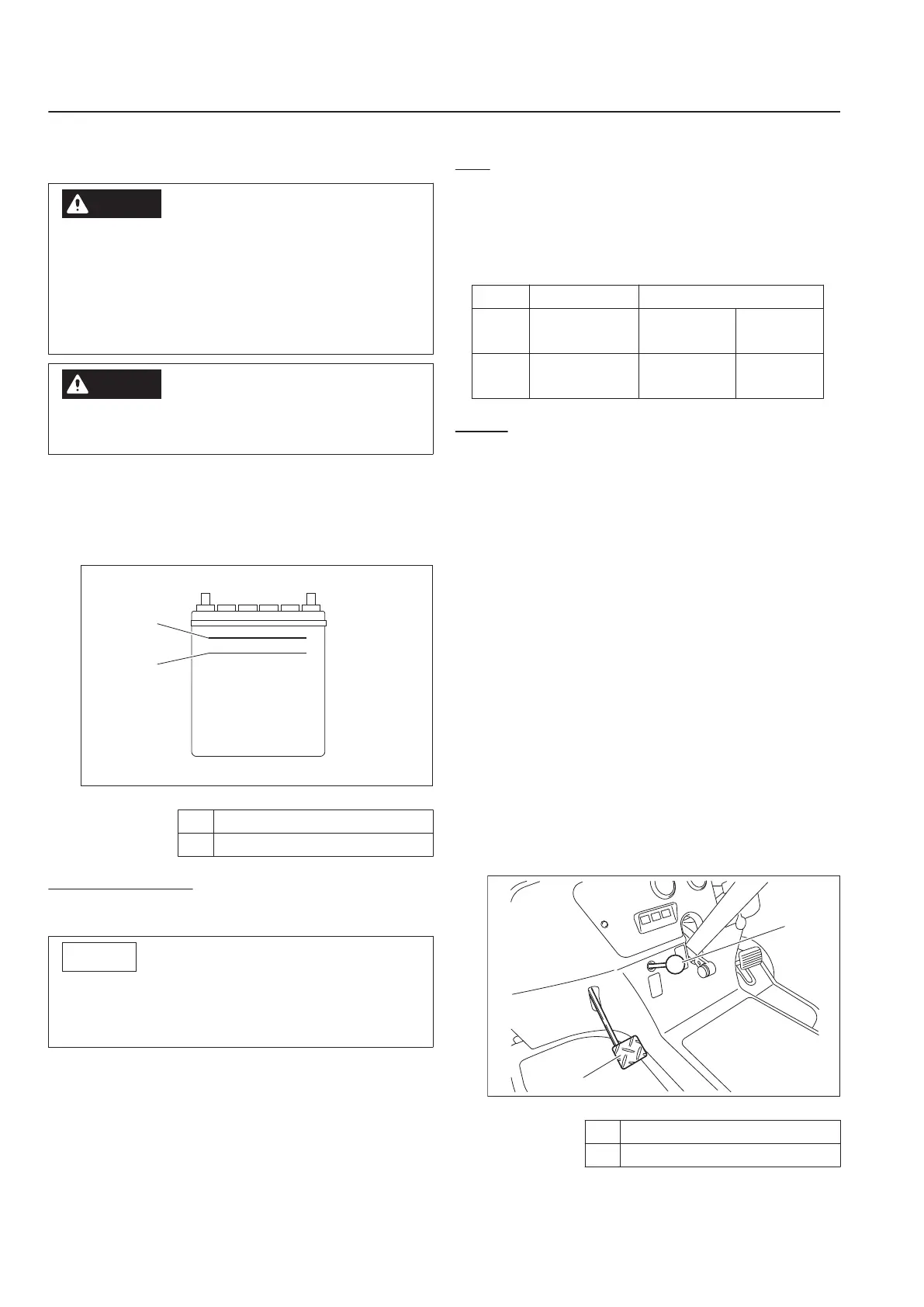

Baroness LM331 - Brake; Electrical Wiring; Tire

Supply of Battery Fluid
Danger
Danger
Be careful not to let your skin, eyes or clothes,
etc., come into contact with the battery fluid or
accidentally swallow the fluid.
Should your skin or clothes come into contact
with the battery fluid, immediately wash them
away with water.
Danger
Danger
When you supply battery fluid, wear protective
garments and safety glasses, etc.
If the battery fluid level is lower than
halfway between the UPPER LEVEL
(maximum) line and LOWER LEVEL
(minimum) line, add purified water up to the
UPPER LEVEL (maximum) line.
UPPER LEVEL
LOWER LEVEL
1
2
48yhlu-006
Supply of Battery Fluid_001
1
UPPER LEVEL
2 LOWER LEVEL
Electrical Wiring
Inspection of Electrical Wiring
Important
Electrical short circuit will cause fire, electrical
leakage and malfunction of electrical
equipments.
Inspect electrical wiring for poor terminal
connections, damaged wiring or terminals,
loose connections, weather-related
deterioration and chemical-related
deterioration.
If necessary, repair before operating the
machine.
1.
Tire
Inspection of Tires
Check the pneumatic pressure of the tires.
Make sure that there are no cracks,
damage or abnormal wear.
Tire size Pneumatic pressure
Front
wheel
20 x 12.00-10
140 kPa (1.4
kgf/cm
2
)
20 psi
Rear
wheel
20 x 8.00-10
140 kPa (1.4
kgf/cm
2
)
20 psi
Brake
Inspection of Brake Pedal
When depressing the brake pedal fully,
make sure that there is appropriate
clearance between the floorboard and the
pedal or pedal reserve distance.
When depressing the brake pedal fully,
make sure that the pedal reaction is not
spongy and that there is no noise.
When depressing the brake pedal during
traveling, make sure that the machine stops
smoothly and the braking is sufficiently
effective.
Inspection of Parking Brake
Depress the brake pedal and pull the
parking brake lever to check that the
parking brake is applied effectively.
Make sure that the brake is not applied
even slightly after you depress the brake
pedal to release the parking brake lever.
1
2
r6e5n8-004
Inspection of Parking Brake 001
1
Brake pedal
2 Parking brake lever
1.
2.
1.
2.
3.
1.
2.
