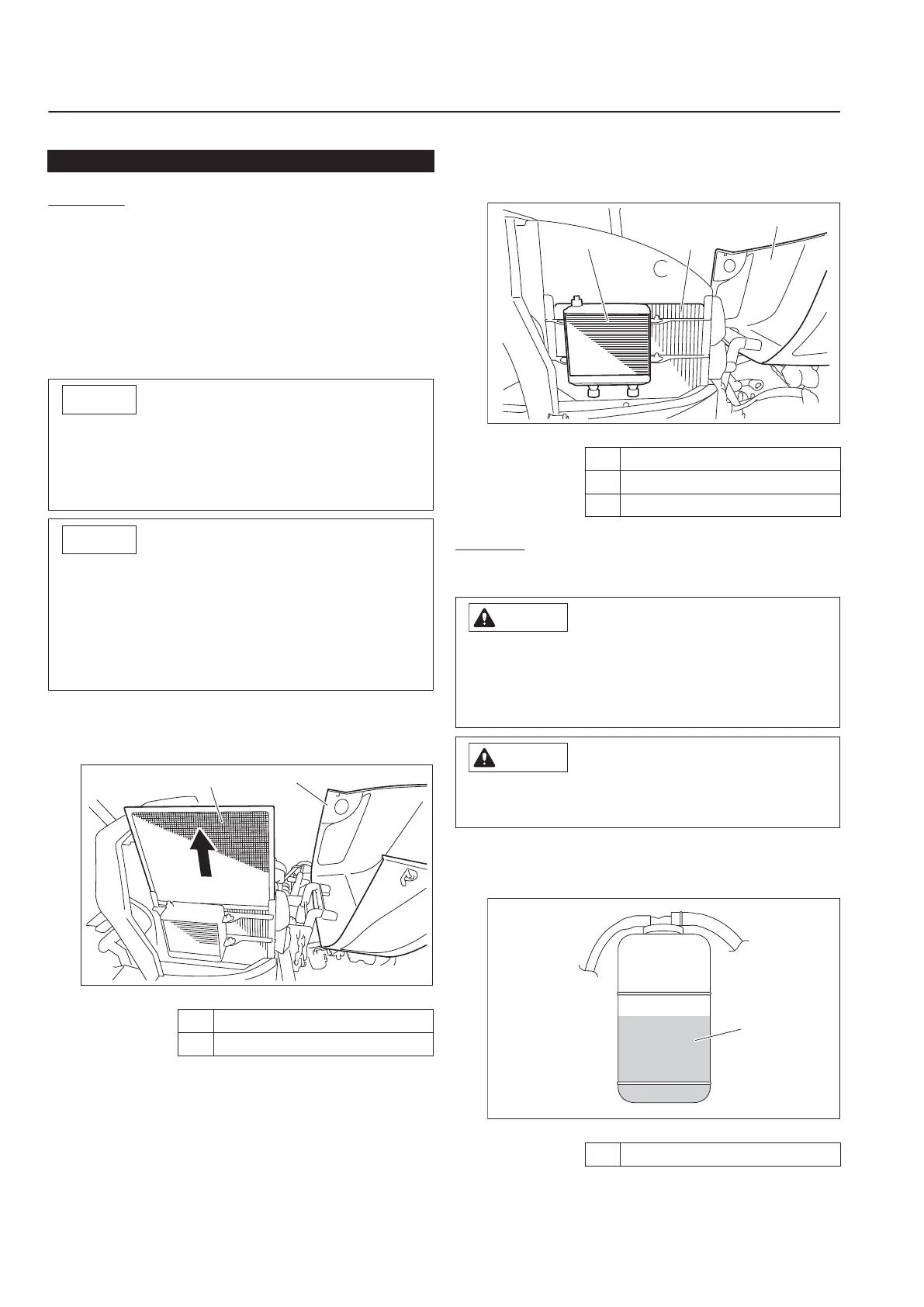

Baroness LM331 - Inspection and Cleaning

Inspection and Cleaning
Radiator
Inspection of Radiator
Make sure that there is no damage to the
radiator.
Make sure that the radiator is not
contaminated.
Cleaning of Radiator
Important
An unclean radiator may cause the engine to
overheat or seize.
It may also cause malfunction of the hydraulic
system.
Important
Do not use solid objects, such as a spatula or
screwdriver, or high-pressure water to clean
the radiator or oil cooler.
Otherwise, special fins or tubes may be
damaged, possibly resulting in reduced
cooling performance or coolant leakage.
Open the hood.
"Opening and Closing of Hood" (Page 5-2)
Pull up the dust screen to remove it.
1
2
va4j43-009
Cleaning of Radiator_001
1
Hood
2 Dust screen
1.
2.
1.
2.
Carefully clean the front and back of the
dust screen and radiator with water or
compressed air.
1
2
3
va4j43-010
Cleaning of Radiator_002
1
Hood
2 Radiator
3 Oil cooler
Coolant
Inspection of Coolant
Caution
Do not touch the radiator or coolant during
engine operation or immediately after the
engine has been turned off.
Otherwise, you may get burned.
Caution
Inspection should take place after the engine
has well cooled down.
Make sure that the coolant level in the
reserve tank is between "FULL" and
"LOW.”
FULL
LOW
1
ckvlsx-001
Inspection of Coolant_001
1
Reserve tank
3.
1.
LM331
Handling Instructions
Page 5-4
Inspection and Cleaning
