Baroness LM331 - Maintenance; Fuel Filter Element Change

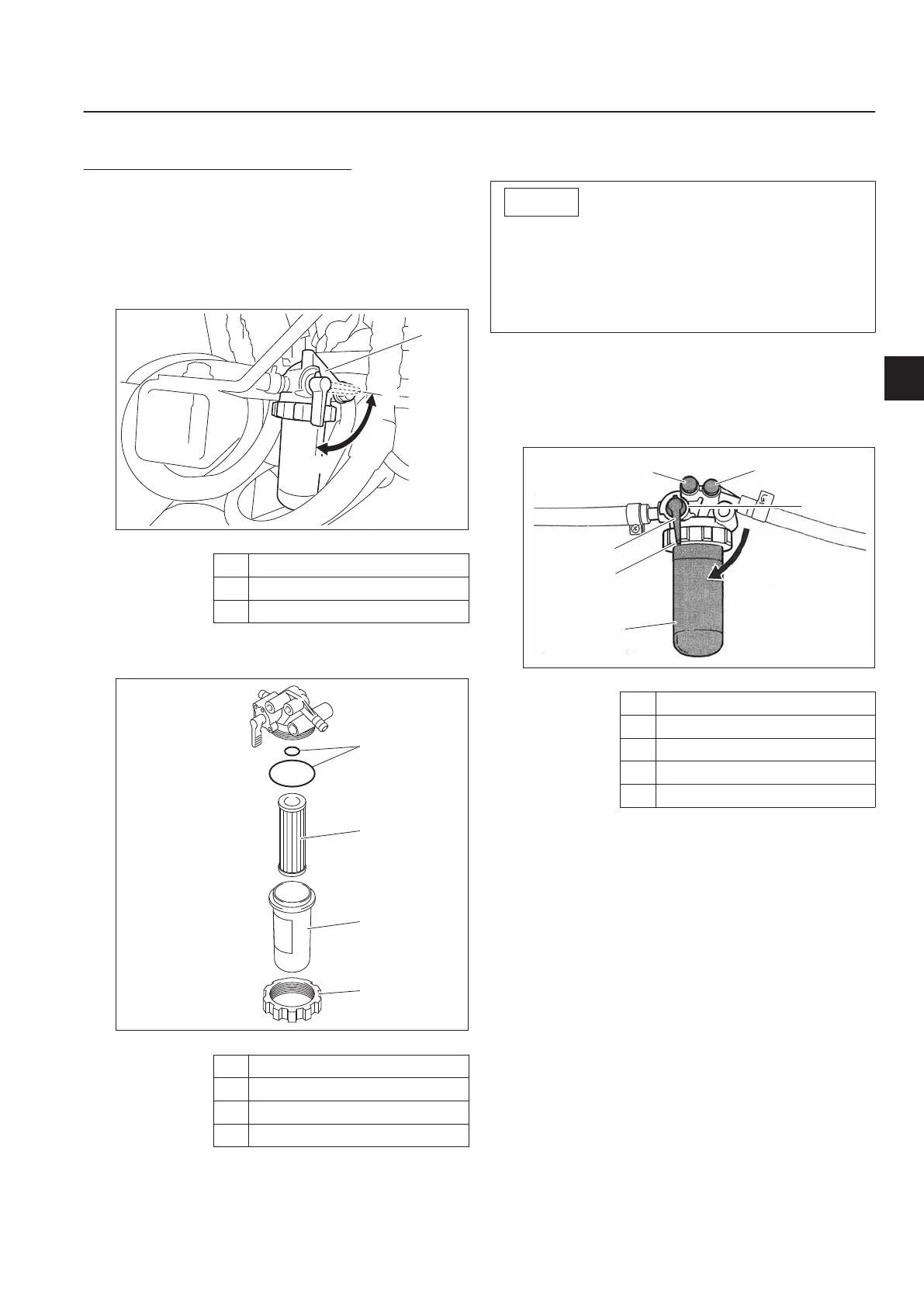

Change of Fuel Filter Element
If dust or dirt accumulates in the fuel filter, the
fuel flow will become insufficient.
Replace the fuel filter at the appropriate times.
The fuel filter is on the left side under the rear
right of the seat.
Close the fuel cock of the fuel filter.
1
A
B
zihgka-002
Change of Fuel Filter Element_001
1
Fuel filter
A ON (open)
B OFF (close)
Remove the ring nut, and then remove the
cup.
1
2
3
4
zihgka-001
Change of Fuel Filter Element_002
1
O-ring
2 Element
3 Cup
4 Ring nut
1.
2.
Clean the inside of the filter cup with diesel
fuel.
Important
During installation, prevent contamination with
dirt or dust.
If the fuel is contaminated with dirt or dust
etc., the fuel injection pump and injection
nozzle will become worn.
Install a new fuel filter element, and then
correctly install all parts in their original
positions.
Fill up the fuel tank with fuel, and then open
the fuel cock.
1
2
A
B
3
3
kou8ls-003
Change of Fuel Filter Element_003
1
Fuel cock
2 Fuel filter
3 Air-bleeding plug
A ON (open)
B OFF (close)
Note:
Air bleeding is not required since it occurs
automatically.
3.
4.
5.
Maintenance
LM331
Maintenance
Page 6-17
Adjustment and Replacement
