Portable Operation
For temporary base station operation the Barrett 950 can be operated from batteries using
either a single wire, end fed, portable broadband antenna Barrett P/N BC91204 or a tactical
rapid deploy dipole, Barrett P/N BC91502 as illustrated below:-

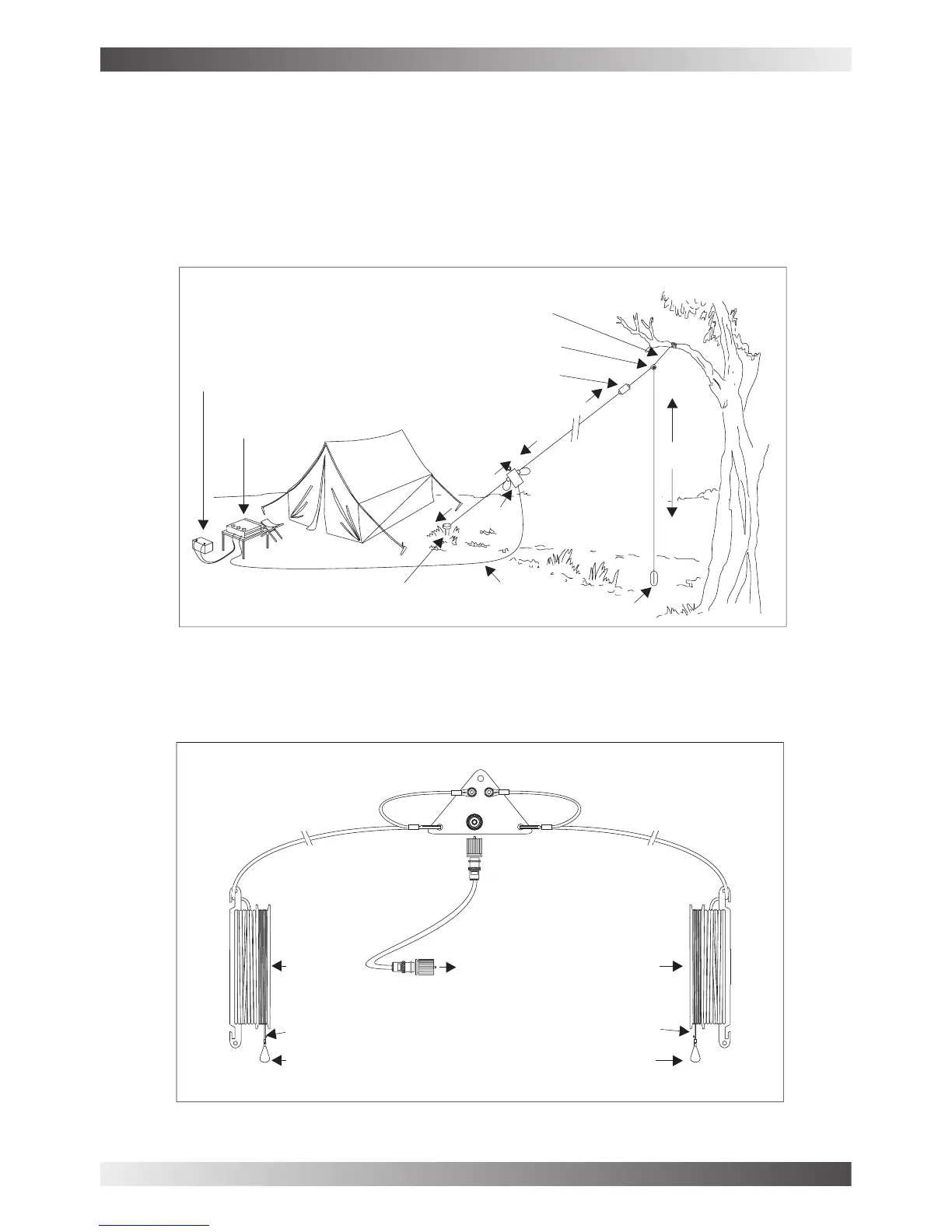

End fed single wire broadband used in a typical temporary base station:-
Tactical rapid deploy tuned dipole:-
TRANSCEIVER
12V BATTERY
POWER SUPPLY
3 METERS
16 METERS
COAXIAL FEEDER
TO TRANSCEIVER
EARTH STAKE WITH
CROCODILE CLIP FROM
ANTENNA CLIPPED TO IT
HANG COUPLING
SECTION EITHER
VERTICALLY OR
AT AN ANGLE
USING A NYLON
HALYARD
BALUN
INSULATOR
8 METERS
NYLON
HALYARD
NYLON
LEADTHROUGH
LOAD CASE
NYLON
HALYARD
INSULATING
CABLE
BOBIN
INSULATING
CABLE
BOBIN
LEAD
WEIGHT
LEAD
WEIGHT
NYLON
HALYARD
COAXIAL FEEDER
TO TRANSCEIVER
BARRETT 950 HF TRANSCEIVER
