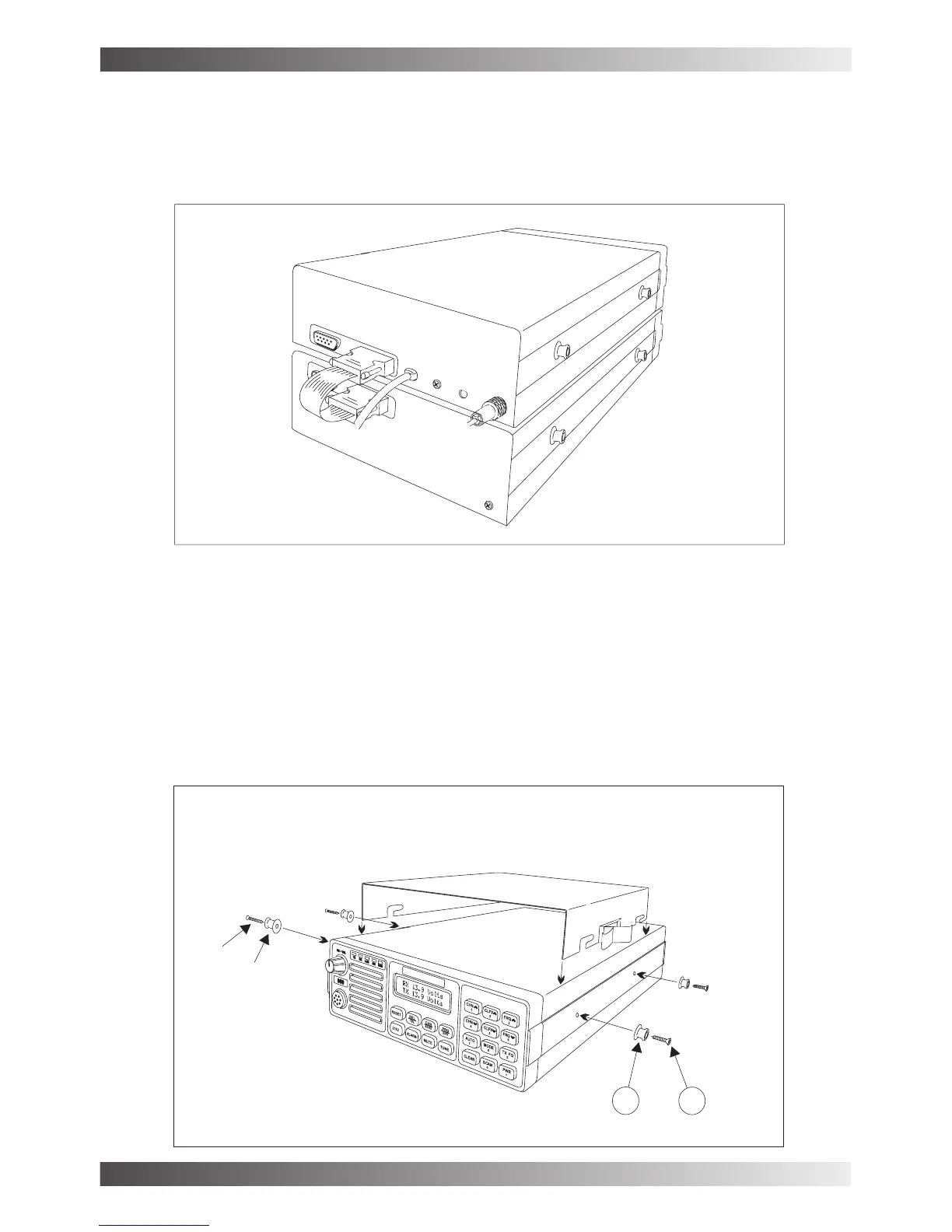

The BCA90021 cable assembly is available to interconnect the Barrett 950 transceiver and
ancillary units such as the 923 modem as illustrated below:-
The BCA90001 universal mounting cradle is available to mount Barrett 900 series products
in vehicles or vessels
The cradle kit comprises the following parts:-
4 x M4 x 14 countersunk screws (items marked 1 in diagram)
4 x Nylon capstans (items marked 2 in diagram)
1 x Cradle assembly c/w catches
Assemble the cradle as per the diagram below:-
Cable assembly - Barrett P/N BCA90021
Universal mounting cradle - Barrett P/N BCA90001
A
B
BARRETT 950 HF TRANSCEIVER
PAGE 133
