Barrett 950 HF - Accessories; Accessory Interface - Barrett P;N BCA90016

Accessories
Accessory interface - Barrett P/N BCA90016
The BCA90016 accessory interface is provided to allow multiple interconnection to the 950
transceiver of items such as the 910 automatic tuning mobile antenna and an external GPS
receiver whilst still giving access for the use of CW keys, external speakers and external

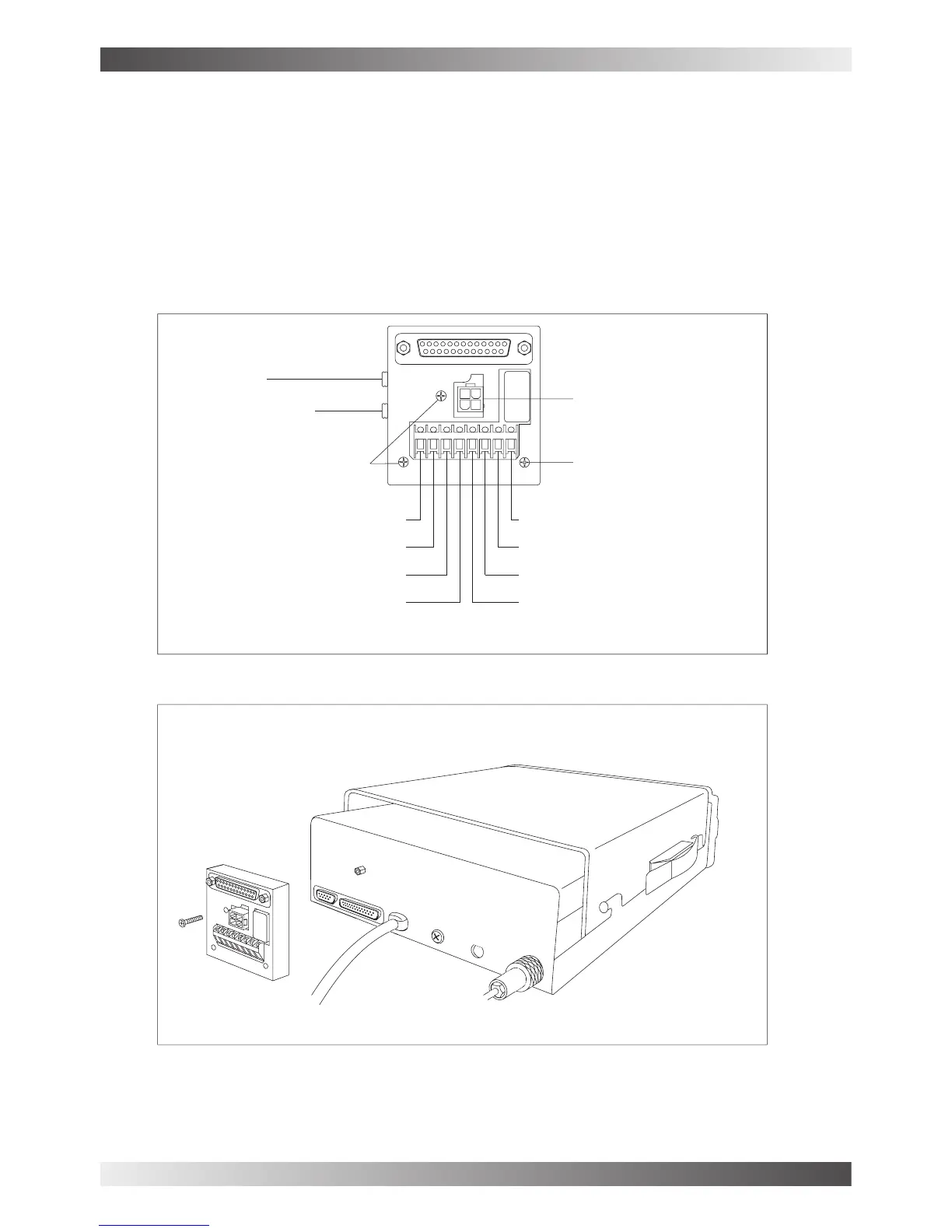

alarms. The diagram below describes the pin functions of the connectors used on the
accessory interface.
Headphones
Automatic antennas
or tuners, 510/910
511/911
CW Key
+13VDC-2Amps max
Ground
EXT. GPS NMEA HIGH
EXT. GPS NMEA LOW
Securing Screws
Securing Screws
EXT. SPEAKER
CW KEY
EXT.ALM N/O
EXT. ALM.COMMON
BARRETT 950 HF TRANSCEIVER
PAGE 132
