Display
Channel number Channel frequency Mode of operation Channel usage
Local characteristics
Global characteristics
The Barrett 950 uses a supertwist 2 line by 16 character liquid crystal display (LCD).

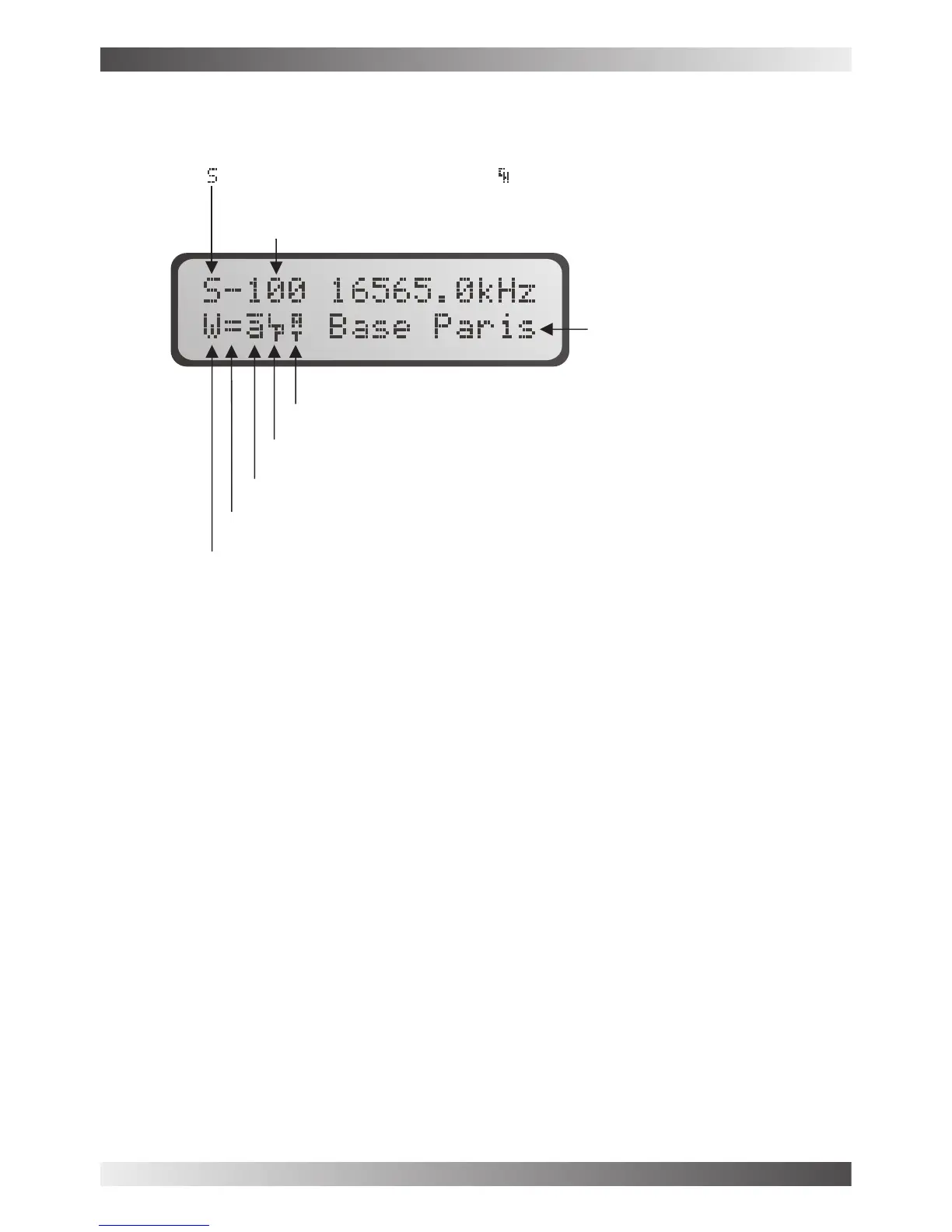

The LCD provides the user with current status information of the transceiver including :-
(parameters unique to the channel in use.)
(parameters that affect all channels.)
“ ” if scrambler option enabled, “ ” (channel)normally shown
Channel Number
Channel usage label
Automatic tuning antenna selected
RF power output section (low power shown)
Mute type (audio mute shown)
Scan table (this channel is assigned to scan table 2)
Selcall format (CCIR 493 format selected)
