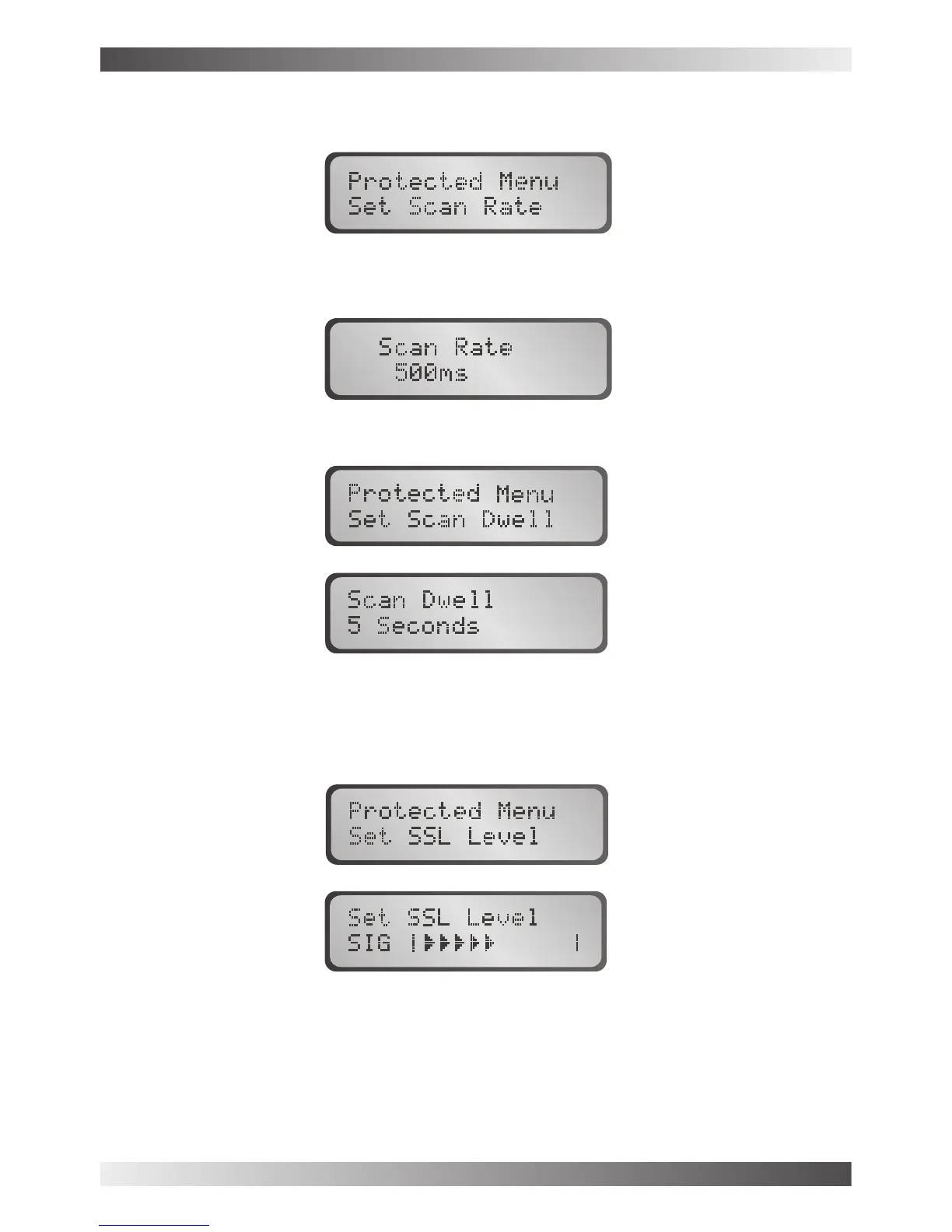

Set Scan Rate
Set Scan Dwell
Set Signal Strength threshold Level (SSL)
... selects the scan rate applicable to non-selcall scan channels, selectable between 100mS
and 5 seconds per channel - the example below selects 500mS.
... selects the length of time the transceiver dwells on a channel after scan has been
stopped by signal strength level (if signal strength level mute is set) or voice activity (if audio
mute is set). The dwell time can be set from 1 to 10 seconds - example selects 5 seconds.
... select the level at which scan stop is activated during SSL scan. The level is set by
adjusting the number of signal strength arrows on the display - example selects 5 signal
strength arrows. Note:- setting this to high will prevent the mute from opening unless a very
high level signal is received.
BARRETT 950 HF TRANSCEIVER
PAGE 54
