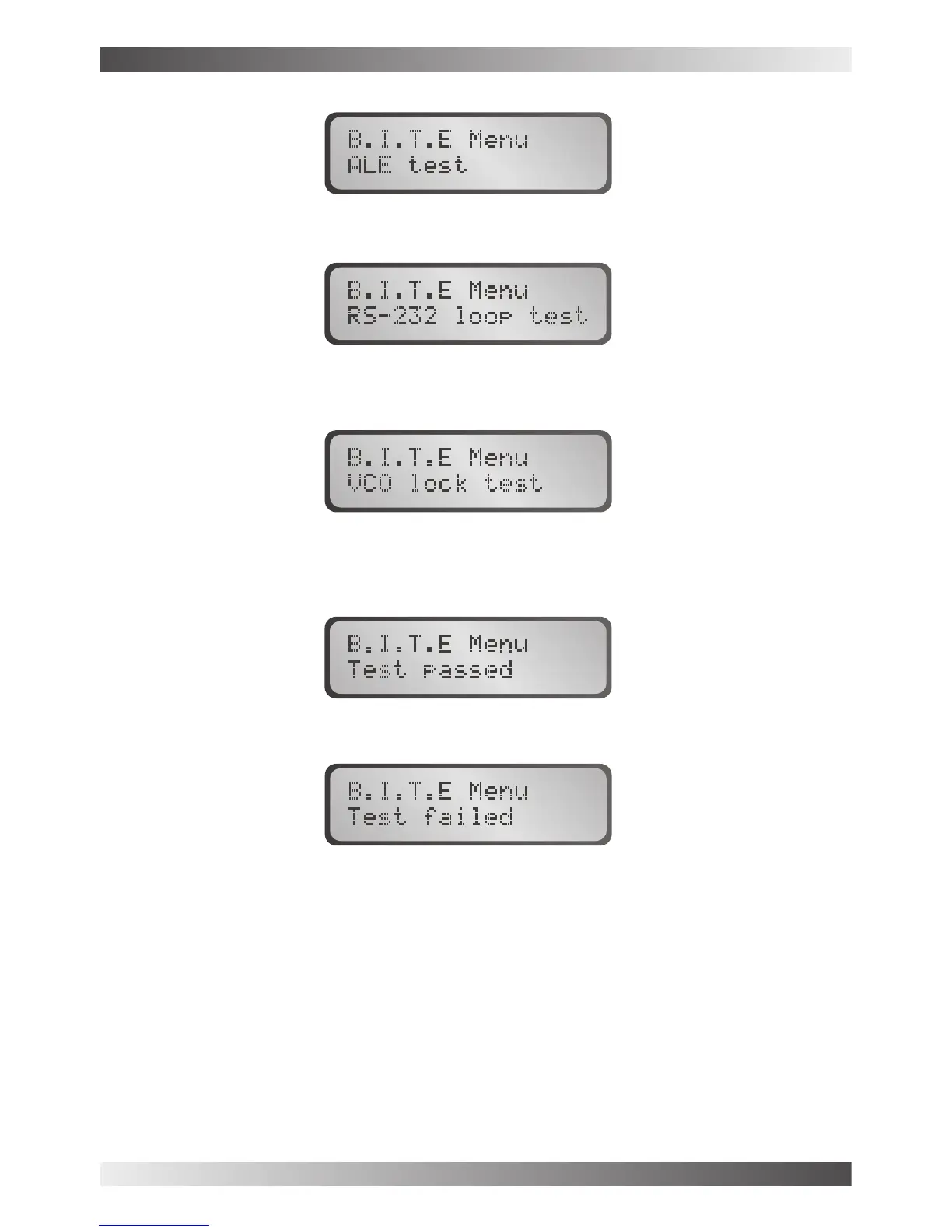

... ALE test, if the ALE option is fitted, the test checks communications to the ALE processor.
... RS-232 test, a plug must be fitted to the auxiliary connector with pins 2 and 3 connected
together. This test checks that the RS-232 port is operational.
... VCO lock test checks that the VCO remains in lock to a channel frequency of 30.5MHz
If the above tests pass the following is displayed :-
If the tests fail the following is displayed :-
BARRETT 950 HF TRANSCEIVER
PAGE 68
