BARRETT 900 SERIES TRANSCEIVERS

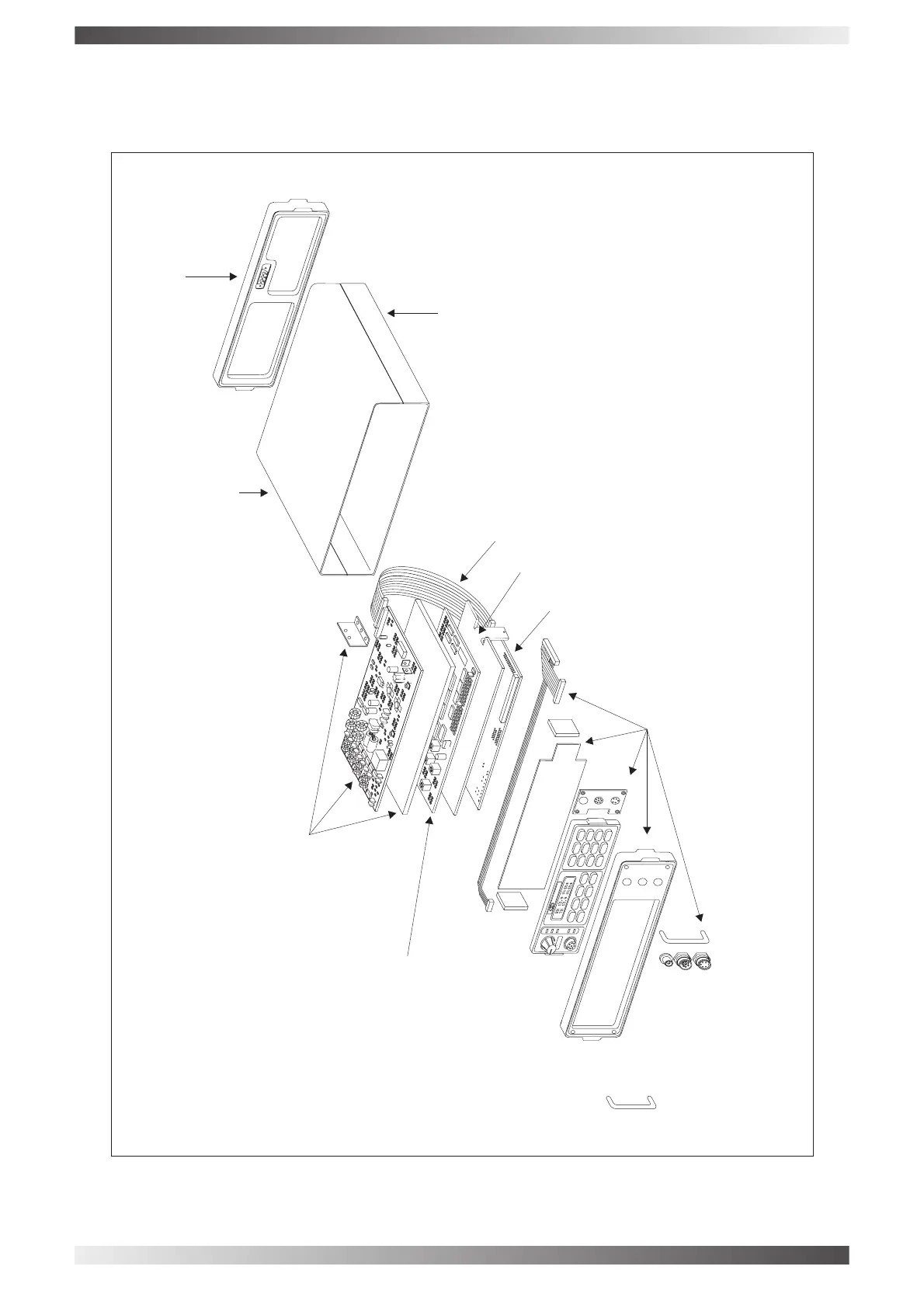

940 Chassis Exploded Diagram
O
N
-
VOL
U
S
B
A
M
L
S
B
R
X
T
X
BARRETTBARRETT
940
Assembly: Rear panel - 9943 (Drab Olive)
9955 (Periwinkle)
Assembly: Body top cover - 81A0T (Drab Olive)
74A0T (Periwinkle)
Assembly: Body bottom cover - 81A0B (Drab Olive)
74A0B (Periwinkle)
Assembly: PA PCB on plate complete - 9936.002
Assembly: Micro TCXO+SMPS PCB - 9932.002
Assembly: RF audio PCB complete - 9933.002
Assembly: Front Panel complete - 9946.001 (Drab Olive)
9956.001 (Periwinkle)
Loom: BC940 Audio/RF to PA 9087
RF audio/Micro Mounting Plate 940M02A6
PAGE 136
