Barrett 950 - Circuit Diagrams, Overlays and Parts Lists; Active Component Outlines

BARRETT 900 SERIES TRANSCEIVERS
12.0 Circuit diagrams, overlays and parts lists

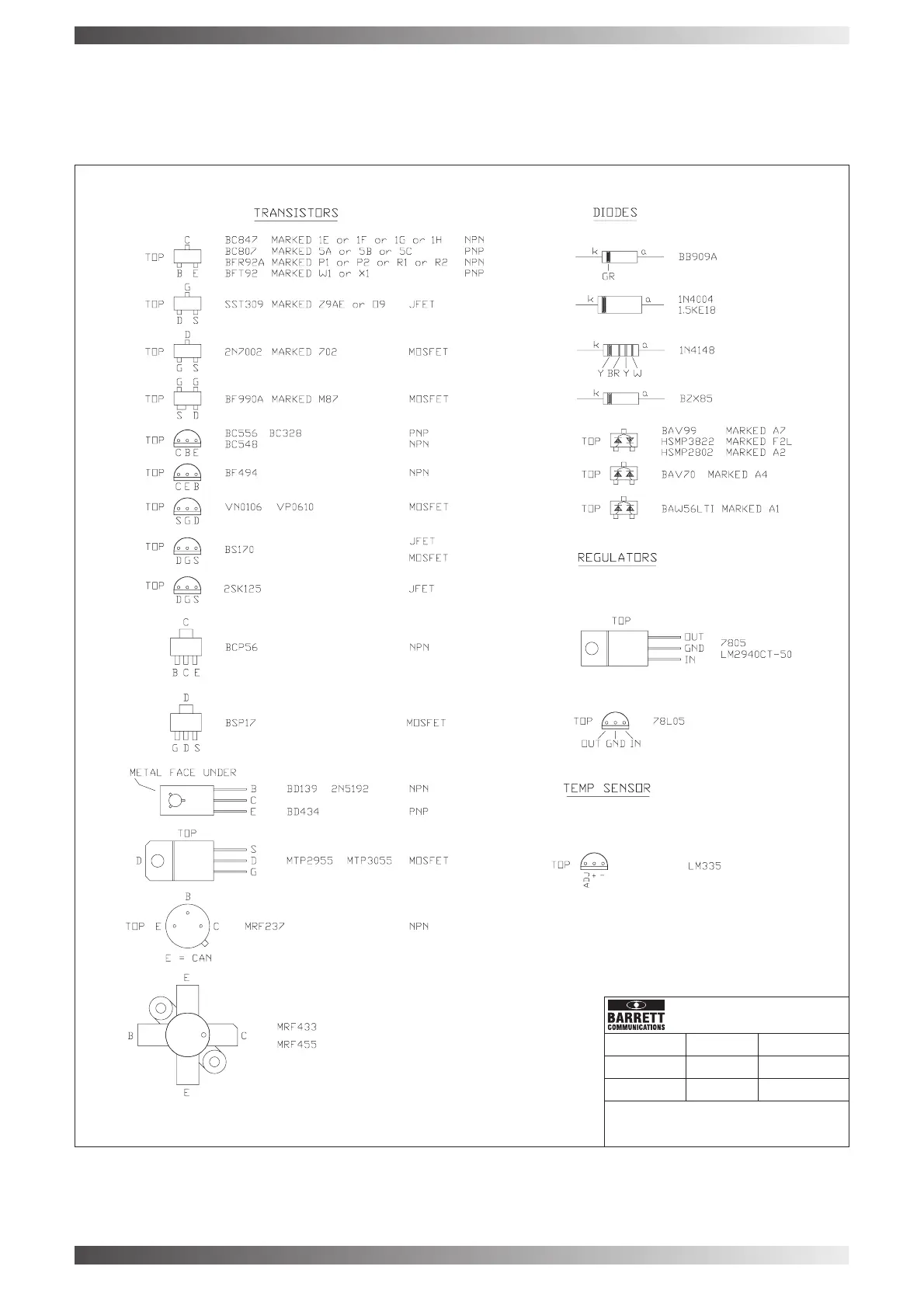

Active component outlines
PAGE 57
DISCRETE SEMICONDUCTORS
IN BARRETT 900 SERIES TRANSCEIVERS
DRAWING NUMBER
DATE
ECN REFERENCE
BARRETT PART NO
DIMENSIONING
SCALE
NTS
DRAWN
DRAWING TITLE
DESIGNED
SHEET
1OF1
DJS(PE)
900S109A0.PCB
3-2-99
RAG KAE
