BARRETT 900 SERIES TRANSCEIVERS
8.2 Internal GPS receiver option
8.3 Internal ALE option
P/N BCA90030 available for 950 and 980 transceivers
P/N BCA95001 and BCA95002 available for 950 transceiver
-

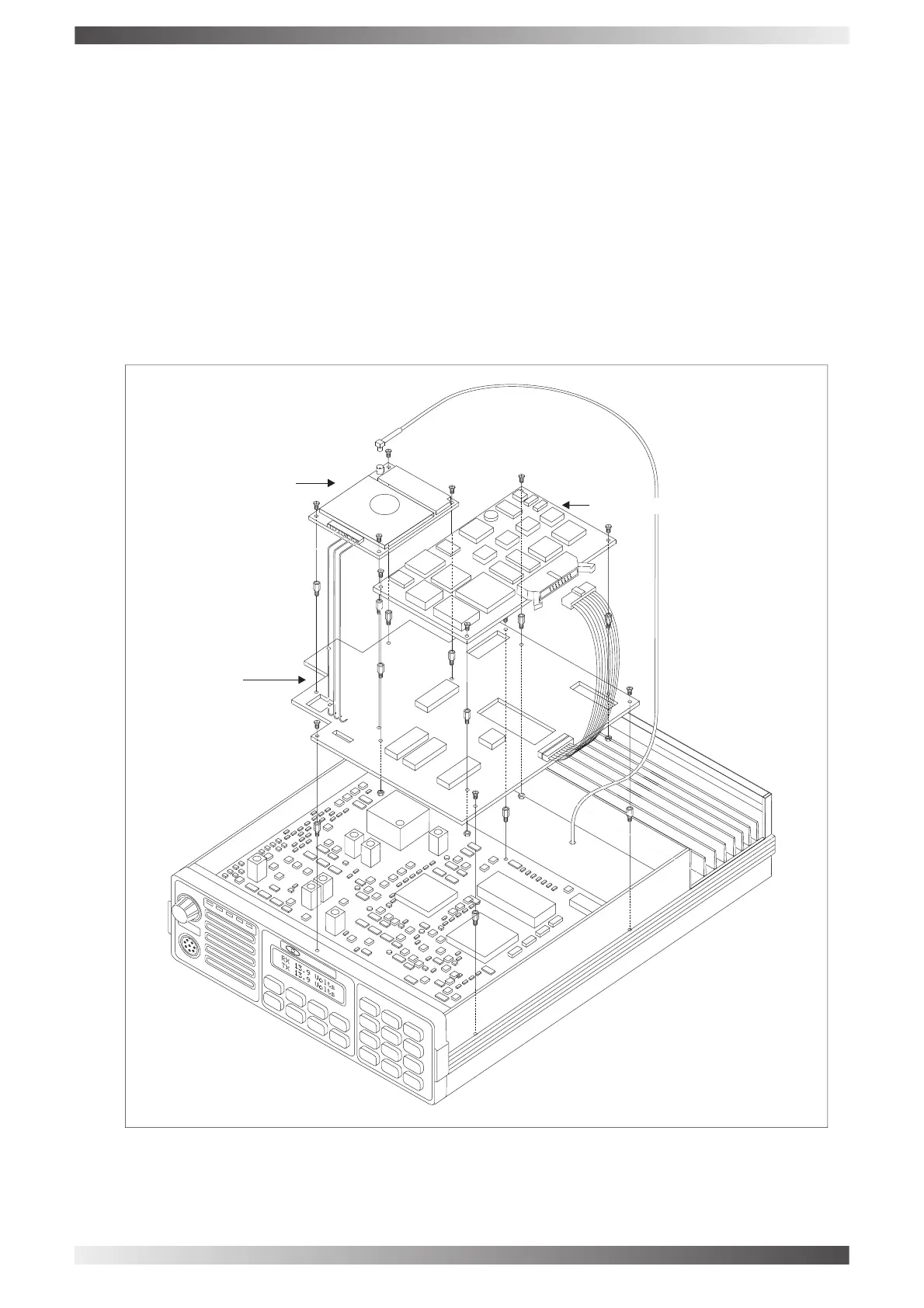

The GPS receiver is mounted on the ALE/GPS mother board which in turn is mounted on the
microprocessor PCB, using the screws and stand-offs supplied, and plugged into the 14 way connector
GPS1. The coaxial cable from the GPS receiver module is routed to the rear of the transceiver, as indicated
in the attached diagram, and terminated on the BNC connector fitted in the normally blanked hole next to the
RF connector on the rear of the transceiver. Note:- ALE option PCB is also fitted on this ALE/GPS
motherboard if required.
-
The ALE option PCB is mounted on the ALE/GPS daughter board, which in turn is mounted on the
microprocessor PCB, using the screws and stand-offs supplied, and plugged into the 14 way connector
GPS1. Note:- GPS receiver option PCB is also fitted on this ALE/GPS daughter board if required.
PAGE 48
U
S
B
A
M
L
S
B
R
X
T
X
950
O
N
-
VOL
BARRETTBARRETT
ALE/GPS Daughter Board
Assembly: 9912
GPS Receiver
Assembly: 7410
ALE Board Assembly: 7510
