BARRETT 900 SERIES TRANSCEIVERS

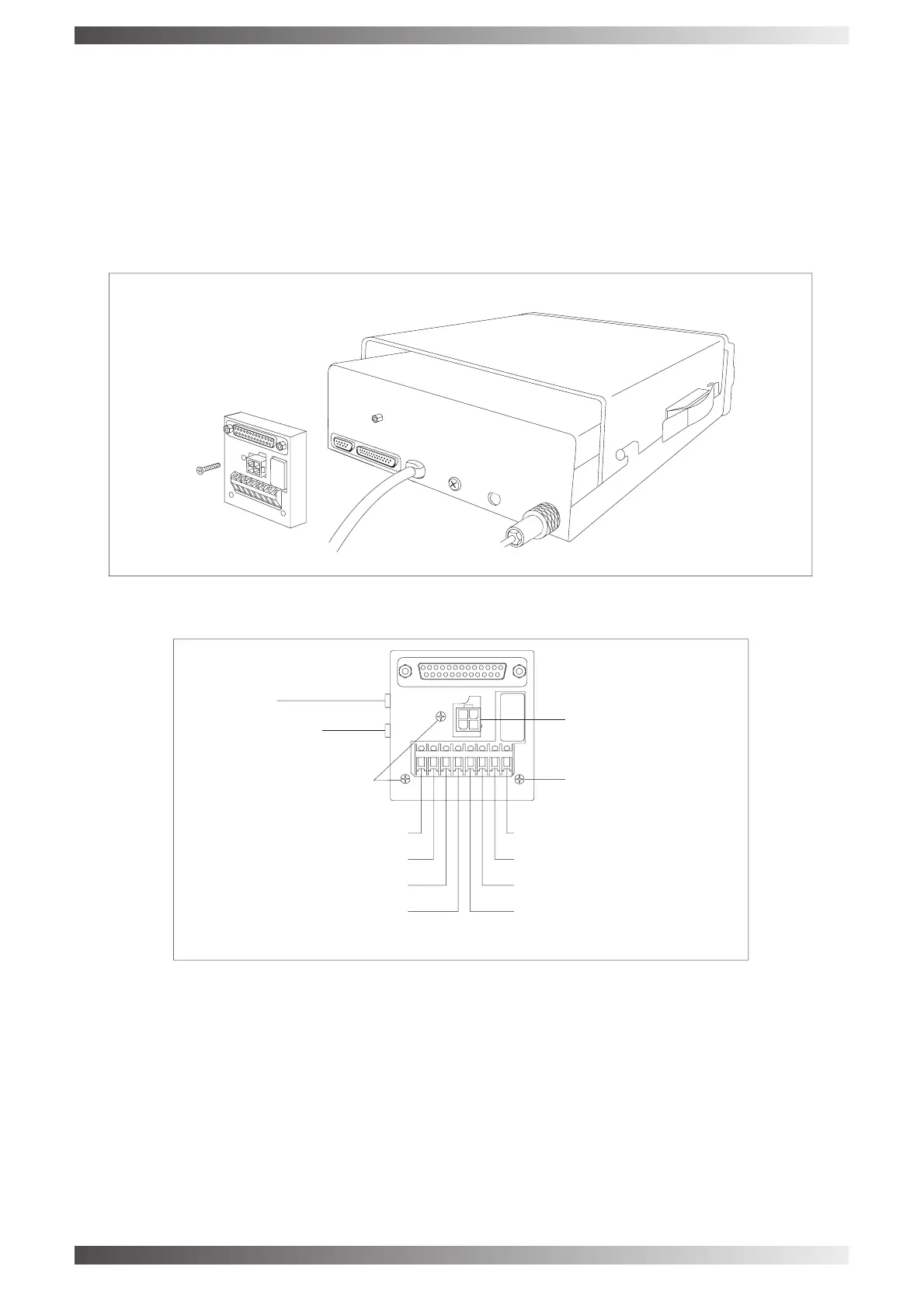

10.0 Accessory interface unit - P/N BCA90016
The accessory interface unit is used to enable easy access to various functions available on the rear
accessory connector of 930, 950 and 980 series transceivers. The unit allows access to an external speaker
or headphones and a CW key via standard 3.5 mm jack sockets. A 4 way "Minifit" socket is provided for the
910 Automatic tuning mobile antenna or 911 Automatic Antenna tuner. A set of screw terminals is provided
to allow an external GPS to be connected as well as an external alarm and cross mute connection. The full
25 way accessory connector is duplicated by the connector on the accessory interface to enable data and
other ancillary products to be connected using the standard Barrett 25 way cables (P/N BCA90021/22).
Headphones
Automatic antennas
or tuners, 510/910
511/911
CW Key
+13VDC-2Amps max
Ground
EXT. GPS NMEA HIGH
EXT. GPS NMEA LOW
Securing Screws
Securing Screws
EXT. SPEAKER
CW KEY
EXT.ALM N/O
EXT. ALM.COMMON
PAGE 53
