Barrett 950 - Page 14

BARRETT 900 SERIES TRANSCEIVERS
PAGE 14
BARRETT 900 MICRO BOARD
MICROCONTROLLER
DRAWING NUMBER
DATE
ECN REFERENCE
BARRETT PART NO
DIMENSIONING
SCALE
NTS
DRAWN
DRAWING TITLE
DESIGNED
SHEET
1OF1
GMH
900B61A2.PCB
5-8-98
PHW

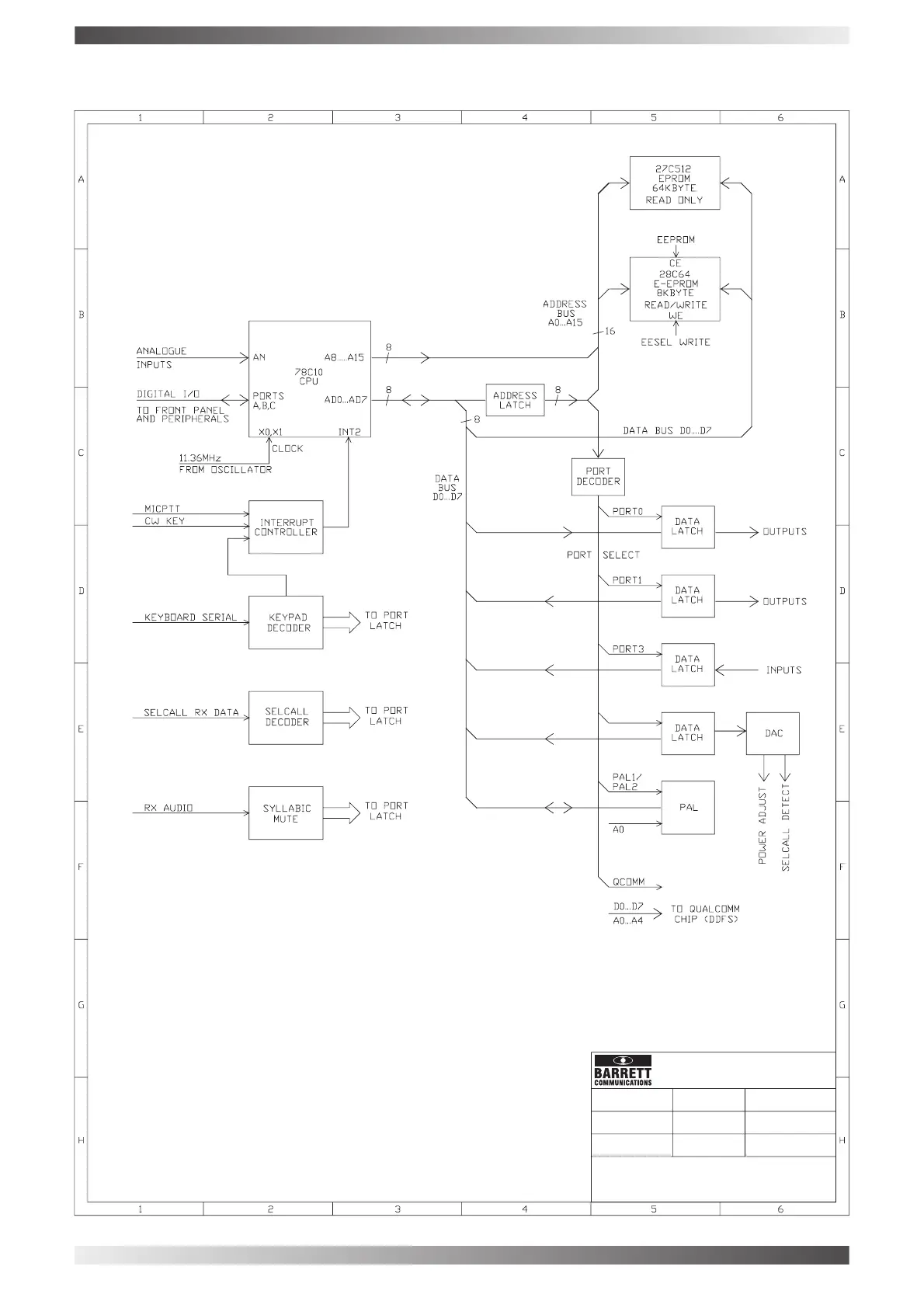

SYSTEM BLOCK DIAGRAM
