4 Product description
Handscanners
BCS 3600
ex
series
18 / 72
Subject to technical modifications
17/05/18
4.2 Possible system configurations
4.2.1 BCS 3608
ex
-NI / BCS 3608
ex
-IS wired hand-held scanners with universal supply module

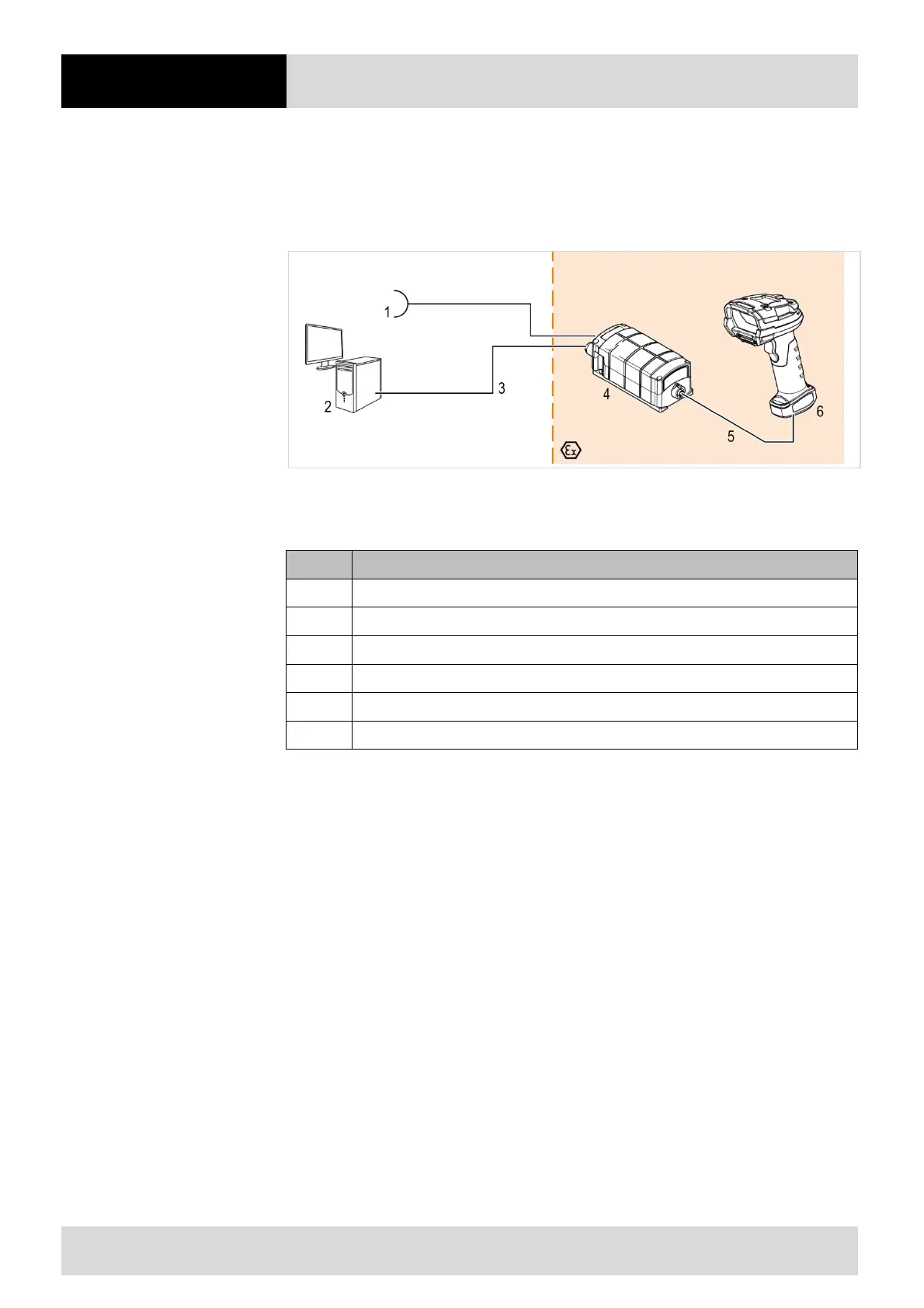

Fig. 1: BCS 3608
ex
-NI / BCS 3608
ex
-IS hand-held scanner with universal supply module in a
potentially explosive atmosphere
Pos. Description
1
Power supply (230 V
AC
or 24 V
DC
)
2
Host PC
3
Data cable host PC – universal supply module (RS 232, RS 422, RS 485 or USB)
4
Universal supply module for hand-held scanners
5
BCS 3608
ex
-NI / BCS 3608
ex
-IS connection cable
6
BCS 3608
ex
-NI / BCS 3608
ex
-IS hand-held scanners
The universal supply module can be operated in a potentially explosive atmosphere. The universal
supply module is used for data transfer and power supply. The power source for the universal supply
module and the system to which the data are to be transferred must lie outside the potentially
explosive atmosphere.
3 different cables can be used to connect the hand-held scanner to the universal supply module (see
Tab. 10, P. 23). The universal supply module and connection cables are not included with delivery.
