Handscanners
BCS 3600
ex
series
8 Operation
Subject to technical modifications
17/05/18
59 / 72
Final inspection of the universal supply module
Check points
Supply module is not damaged
Universal supply module has been certified
Universal supply module has been certified for use with the hand-held scanner
Terminal connection chamber of the universal supply module has been correctly closed
Universal supply module has been correctly connected
8.3 Scanning
During scanning, the hand-held scanners in the BCS 3600
ex
series emit a scanner beam.

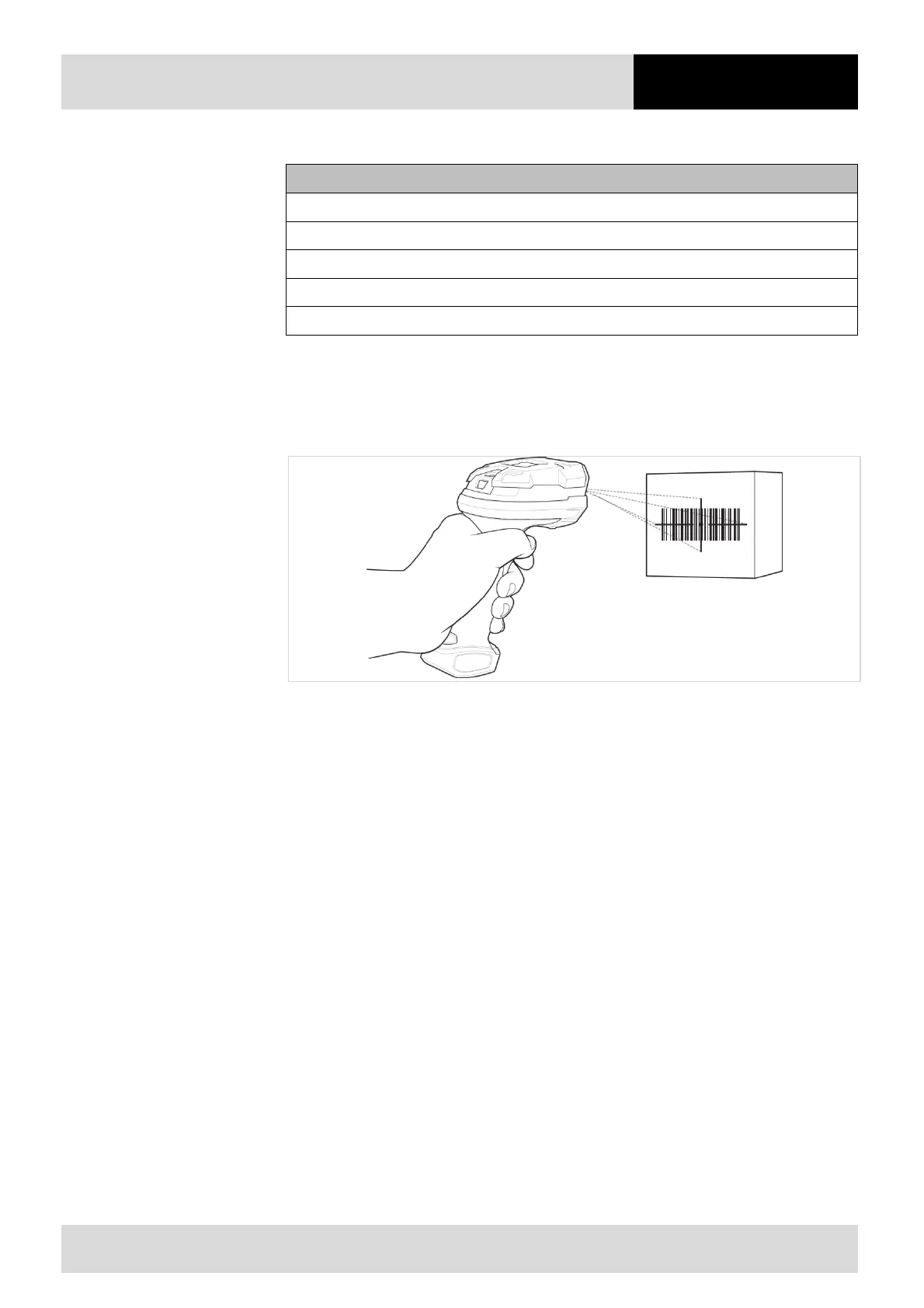

Fig. 17: Scanning
1. To scan a barcode, direct the scanner beam onto the barcode so that it captures the whole width
of the barcode. While doing so, pay attention to the optimal scan position (see Chapter 8.3.1, P.
60).
2. Align the hand-held scanner centrally on the barcode.
3. Press the trigger button.
White LEDs on the hand-held scanner are switched on to illuminate the barcode.
Scanner emits a beep to signalise the successful decoding of the barcode (see Chapter 4.5,
P. 30).
