4.4 BCS 3678
ex
-NI / BCS 3678
ex
-IS Bluetooth hand-held scanner
4.4.1 Construction of the Bluetooth hand-held scanner

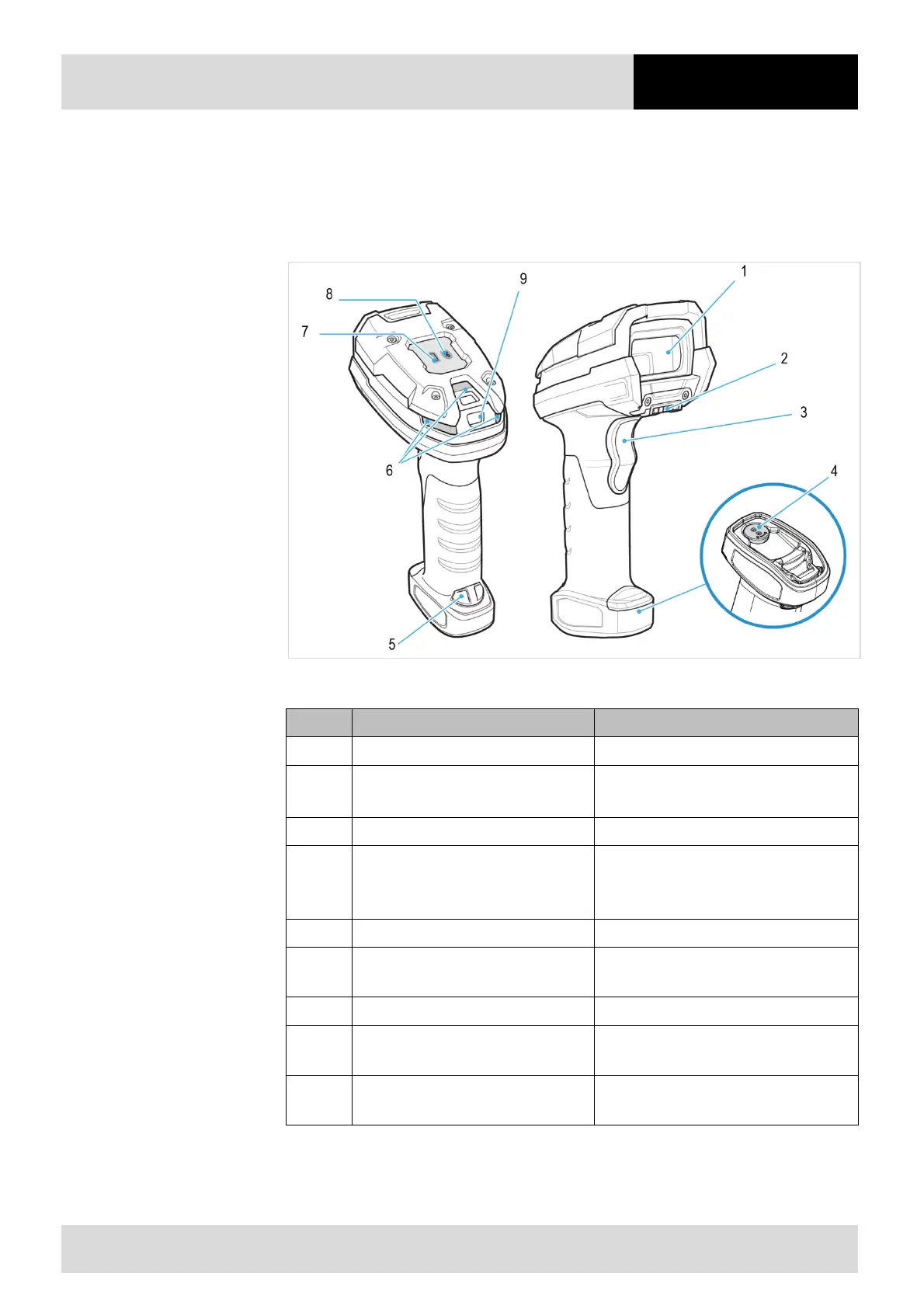

Fig. 7: BCS 3678
ex
Bluetooth hand-held scanner
Pos. Description Function
1
Scan window Scanning barcodes
2
Contact for cradle
 Charging the battery
 Transferring data to cradle
3
Trigger button Starting the scan process
4 Battery compartment cover with safety
lock
 Securing the battery to stop it falling out
 Opening only possible using special tool
(included with delivery)
5
Lug Attaching cord to the hand-held scanner
6
Status LEDs
Displaying the status of the hand-held
scanner
7
Battery LED Displaying the charge status of the battery
8
Bluetooth LED
Displaying the status of the Bluetooth
connection
9
Beeper
Transmitting beeps or sequences of beeps
indicating events
