Handscanners
BCS 3600
ex
series
4 Product description
Subject to technical modifications
17/05/18
23 / 72
4.3.2 Contacts / cables
The function is only guaranteed if the cables you connect for your configuration have been
specified by BARTEC (see system overview, Chapter 15.2, P. 70).

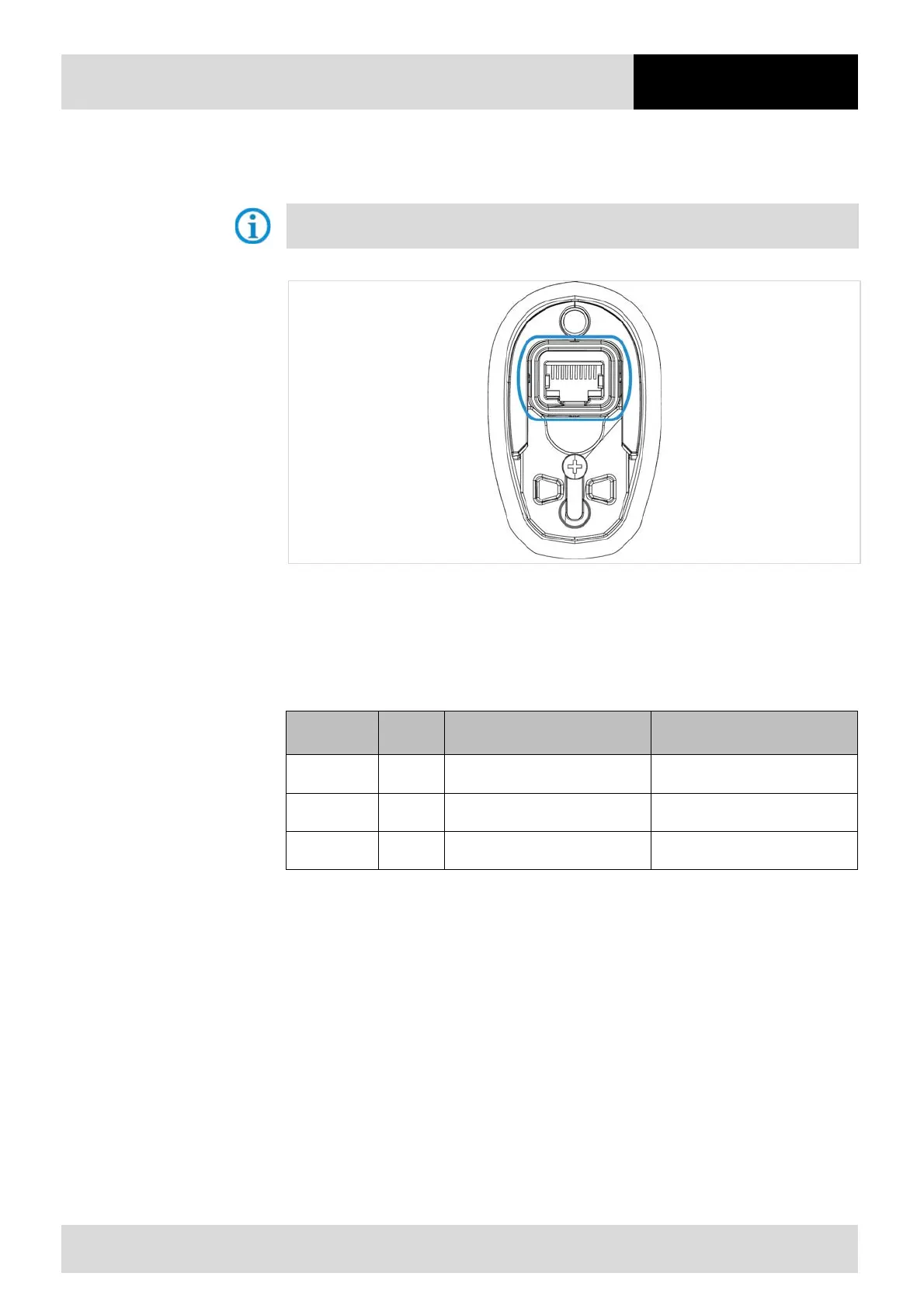

Fig. 6: External contact on wired hand-held scanner
Connection of hand-held scanners to a universal supply module
The BCS 3608
ex
-NI and BCS 3608
ex
-IS hand-held scanners can be connected by the following cables
to the universal supply module:
Version Length
BARTEC Order No.
Zone 1 / Division 1
BARTEC Order No.
Zone 2 / Zone 22
Smooth 1.9 m 17-A1Z0-0015 B7-A2Z0-0037
Smooth 4.5 m 17-A1Z0-0016 B7-A2Z0-0038
Spiral 2.7 m 17-A1Z0-0017 B7-A2Z0-0039
Tab. 10: BCS 3608
ex
hand-held scanner connection cable (assembled) to the universal supply
module
The cables set out in Tab. 10 have been modified for use in the following potentially explosive
atmospheres:
‒ ATEX/ IECEx Zone 1 and Zone 21
‒ ATEX/ IECEx Zone 2 and Zone 22
‒ Class I, II, III DIV 1
‒ Class I, II, III DIV 2
