Handscanners
BCS 3600
ex
series
4 Product description
Subject to technical modifications
17/05/18
29 / 72

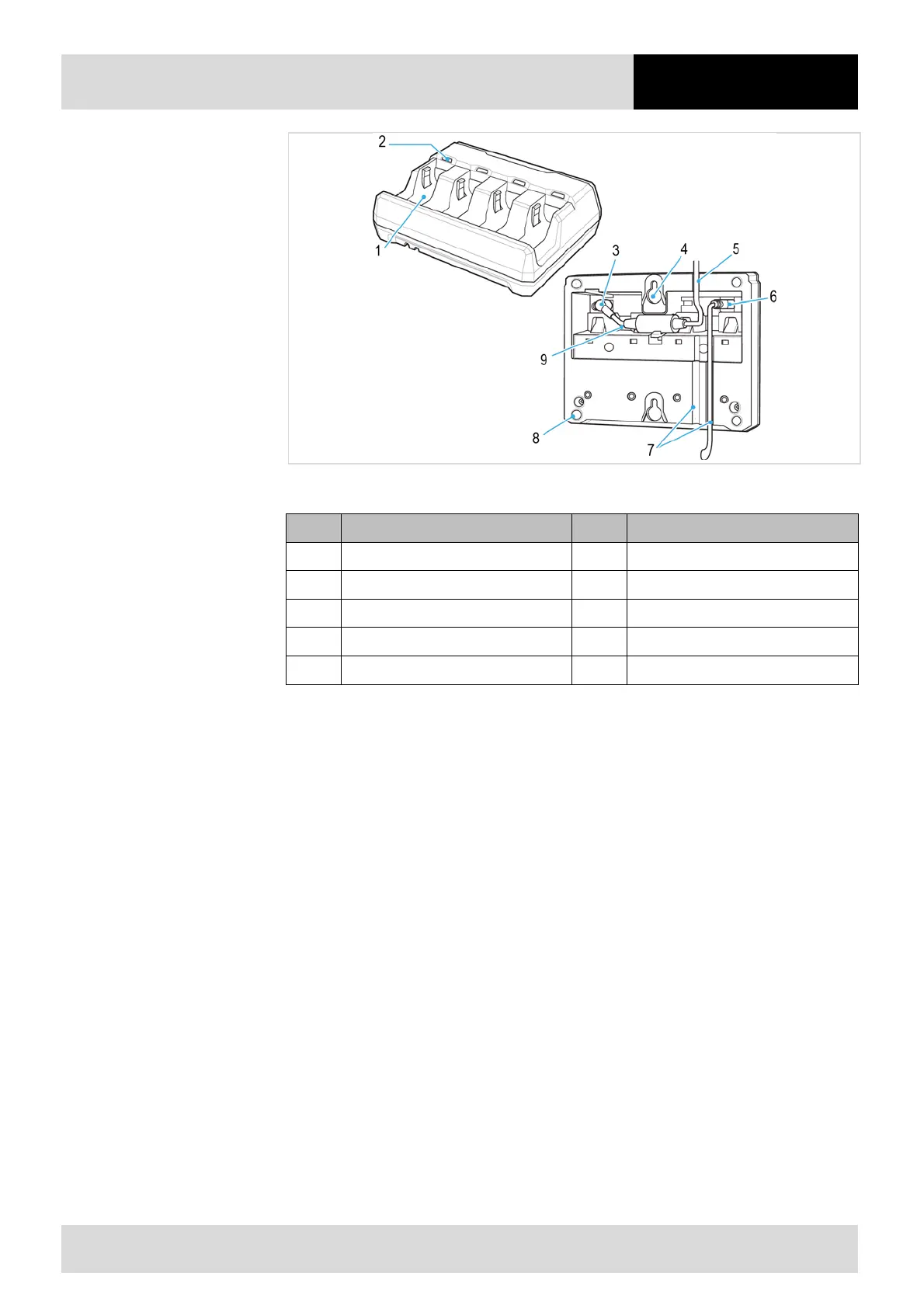

Fig. 10: Construction of the 4-slot charging station for spare batteries
Pos. Description Pos. Description
1
Battery compartments (4)
2
LEDs (4)
3
Power connection
4
Mounting holes, wall mounting (2)
5
Power cable groove
6
USB connection
7
Cable groove
8
Rubber feet (4)
9
Cable routing, power cable
