9424200996 19-3
BE1-11m Resistance Temperature Detector (49RTD) Protection

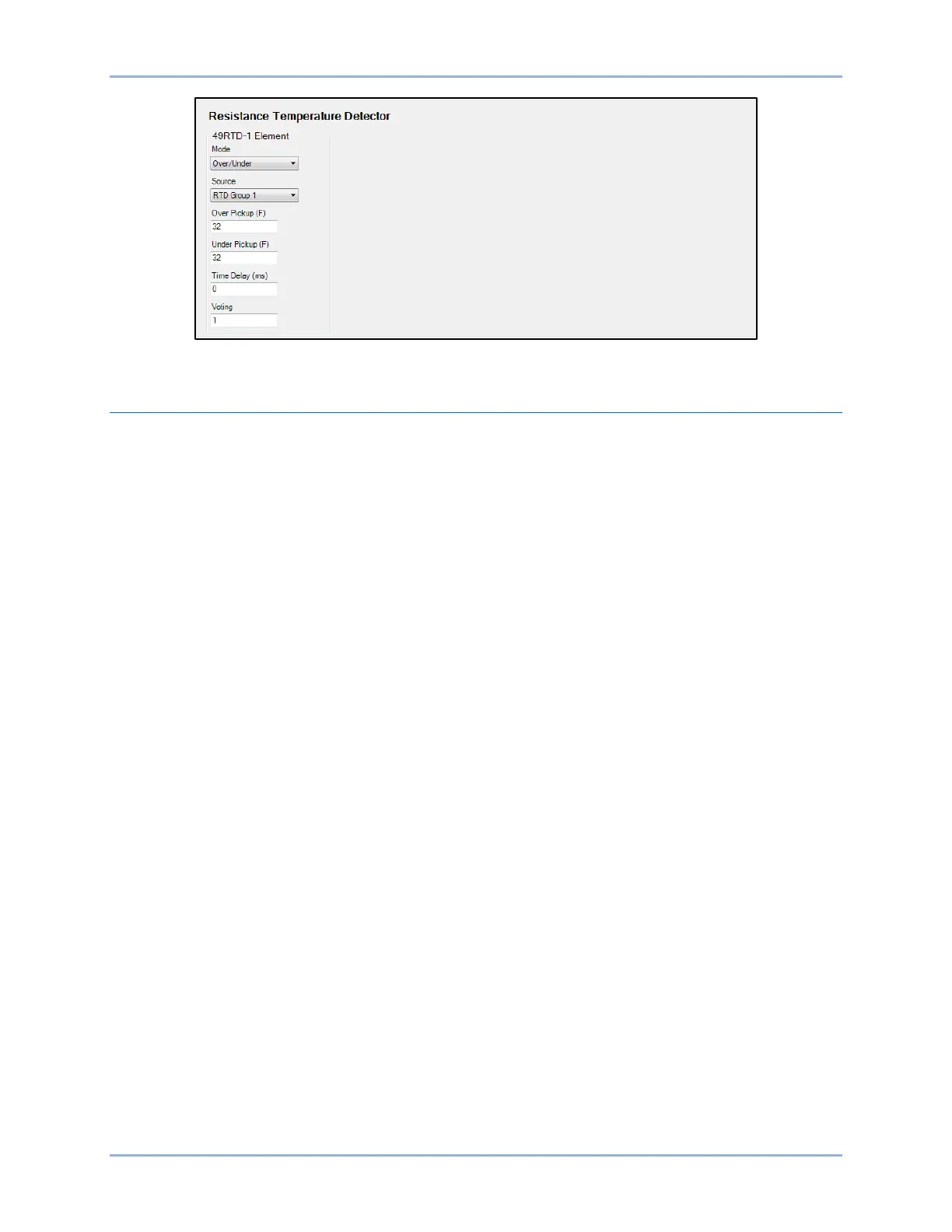

Figure 19-2. Resistance Temperature Detector Settings Screen
Remote RTD Metering
RTD metering values are obtained through BESTCOMSPlus by using the Metering Explorer to open the
Analog Metering, RTD Meter tree branch. BESTCOMSPlus must be online with the BE1-11m to view RTD
metering. Alternately, values can be obtained through the front-panel display by navigating to the
Metering, Analog Metering, RTD Meter Input screen.
