BE1-11m Metering
30 • Metering
The BE1-11m measures the voltage and current inputs, displays those values in real time, records those
values every quarter-second, and calculates other quantities from the measured inputs.
Metering Explorer
The Metering Explorer is a convenient tool within BESTCOMSPlus® that contains analog metering,
status, reports, demands, power quality, and control. Control screens include virtual switches, breaker
control switch, output override, and setting group control. Details of the Analog Metering branch and
Motor Meter are described in this chapter. Refer to the appropriate chapters in this manual for information
on status, reports, demand, power quality, and control. Metering values can be exported to a *.csv
(comma-separated values) file.
The Metering Explorer has a “docking” feature allowing the user to arrange and dock metering screens. A
blue transparent square representing the screen being moved, seven arrow buttons, and a tabs button
appear when holding down the left mouse button on a metering tab and dragging it to an arrow box used
for docking.
Holding the left mouse button down on a metering tab and dragging it anywhere other than an arrow box
will place it as a floating metering screen. This floating screen can later be closed by clicking on the in
the upper right corner.

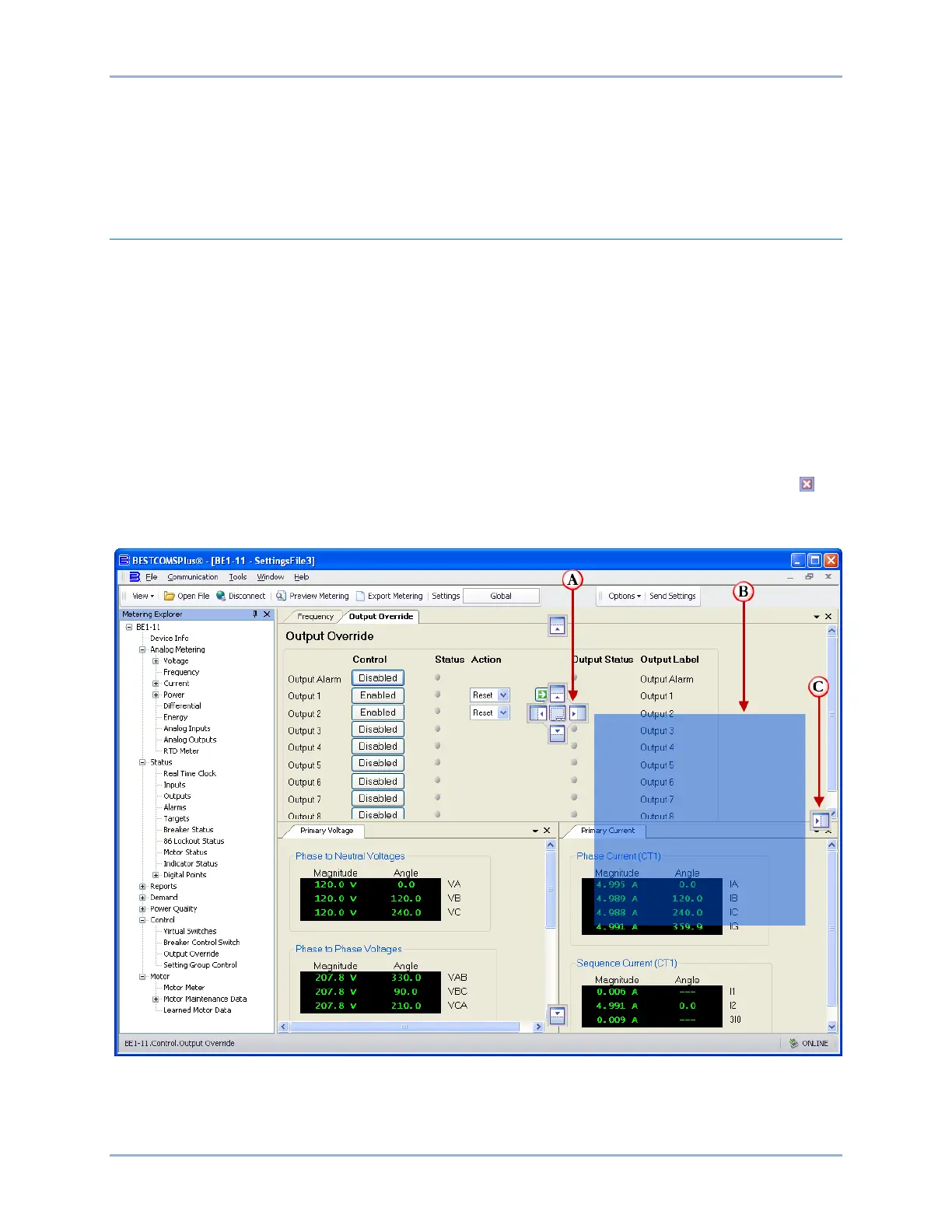

See Figure 30-1. Table 30-1 explains the call-outs in Figure 30-1.
