9424200996 44-1
BE1-11m Mounting
44 • Mounting
BE1-11m protection systems are supplied in a non-drawout, S1 size case (J option) that fits in a standard
S1 case opening. J case terminal strips are removable via two 7/64” hex screws. Extra terminal strip kits
(Figure 44-1) are available as part number 9424226100. Adapter plates are sold separately. A BE1-11m
can be mounted at any convenient angle.

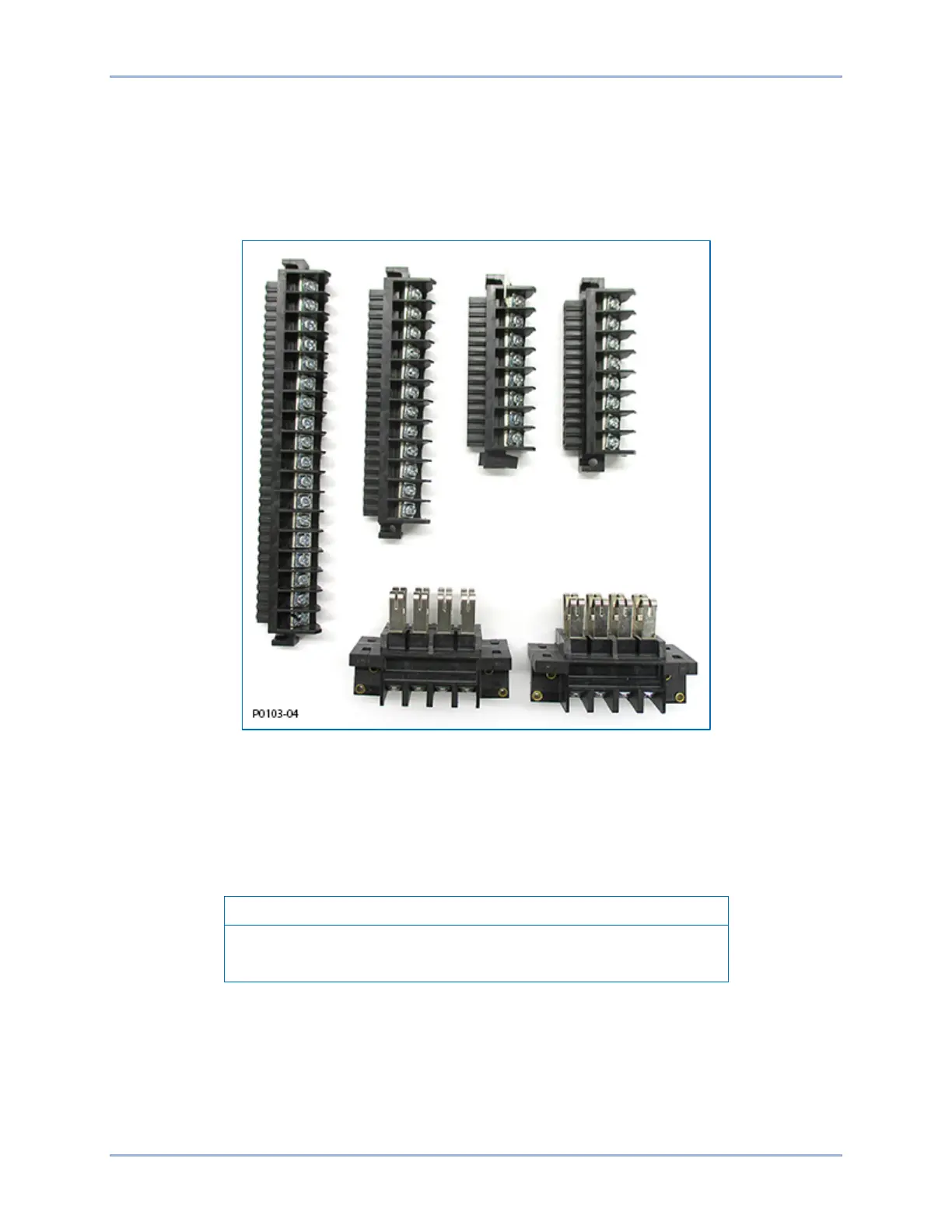

Figure 44-1. J Case Terminal Strip Kit, Part Number 9424226100
Case mounting studs are carbon steel #10-32. The torque applied to
the provided nuts should be 25 to 35 inch-pounds (2.82 to 3.95 N•m).
