9424200996 3-1
BE1-11m Controls and Indicators
3 • Controls and Indicators
BE1-11m controls and indicators are located on the front panel and include sealed membrane switches,
LED (light emitting diode) indicator lamps, and a multiple-line, alphanumeric LCD (liquid crystal display).
Illustrations and Descriptions
The HMI (Human-Machine Interface) is illustrated in Figure 3-1 and described in Table 3-1. The locators
and descriptions of Table 3-1 correspond to the locators shown in Figure 3-1.

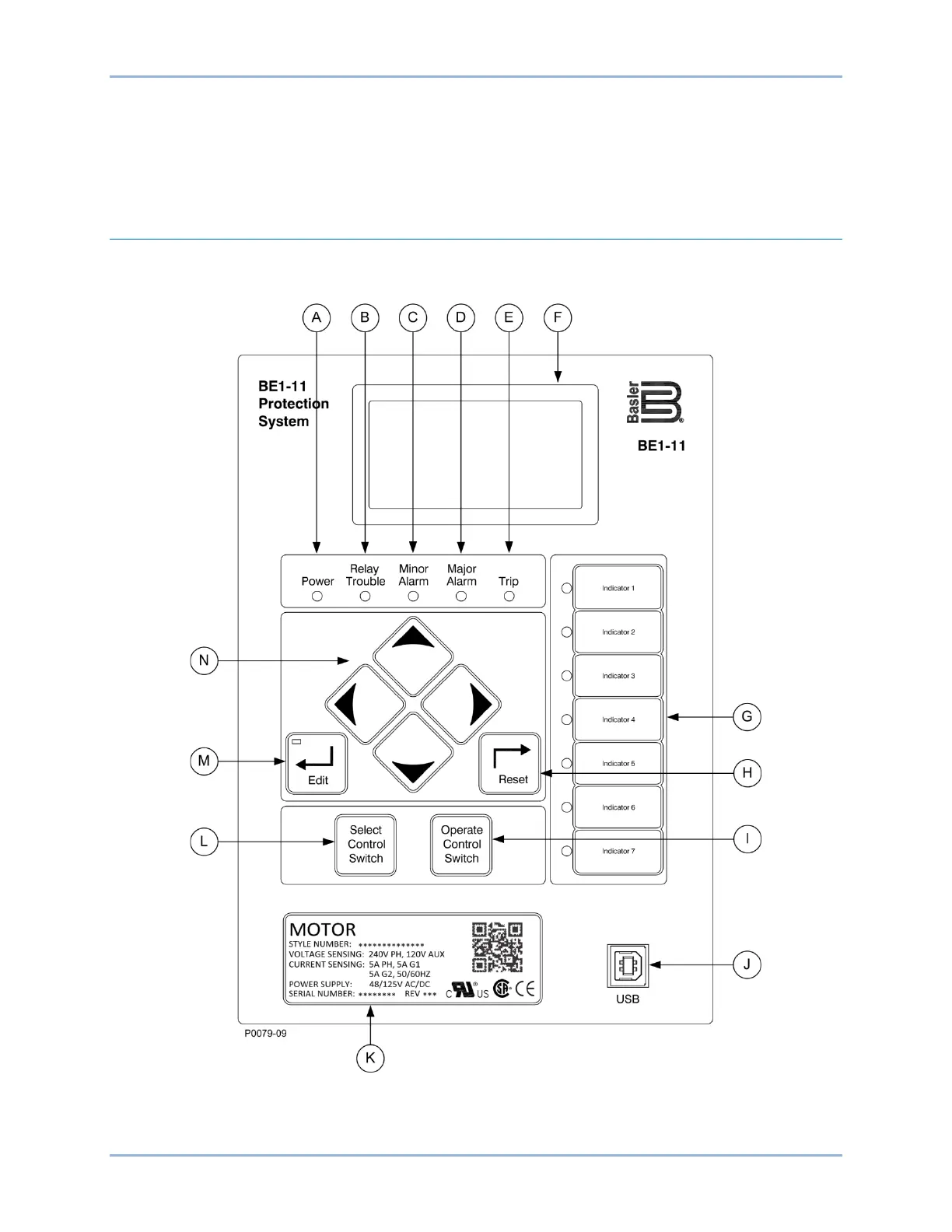

Figure 3-1. Front Panel
