Basler BE1-11m User Manual

2-12 9424200996
Quick Start BE1-11m

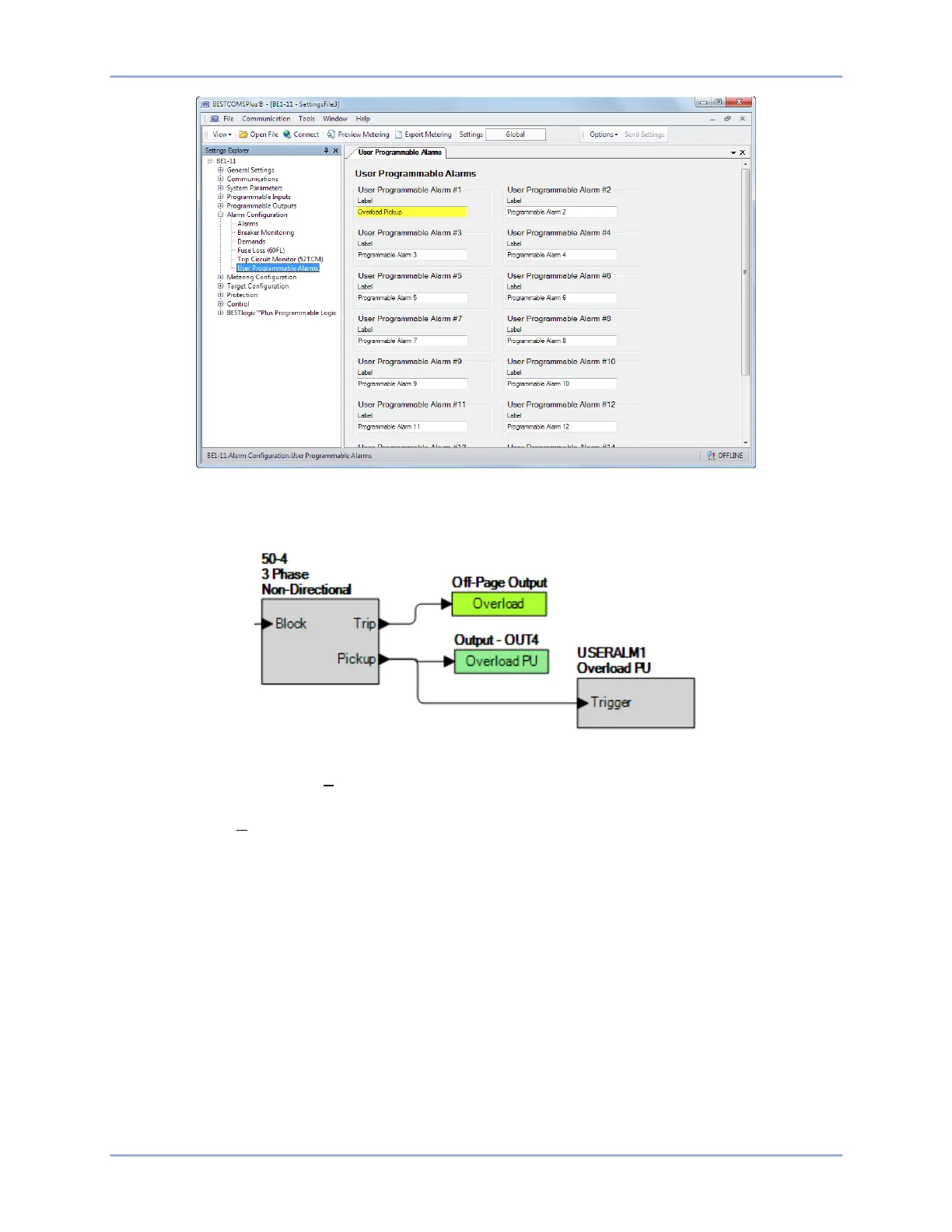

Figure 2-18. User Programmable Alarms Screen
Step 15: Figure 2-19 shows the user-defined labels of OUT4 and USERALM1 that were named in Step
13 and Step 14.
Figure 2-19. OUT4 and USERALM1 with User-Defined Labels
Step 16: Select Save from the File pull-down menu to save your new settings file.
Step 17: To make your new settings active in the BE1-11m, select Upload Settings and Logic to Device
from the Communication pull-down menu. Enter the username and password.

Basler BE1-11m Specifications

General

Brand	Basler
Model	BE1-11m
Category	Protection Device
Language	English
