9424200996 36-1
BE1-11m Differential Reporting
36 • Differential Reporting
The BE1-11m records information about the phase current differential (87) status of the BE1-11m and
creates a differential report. Only one report is stored in nonvolatile memory. When a new report is
generated, the BE1-11m discards the old report and replaces it with the new one.
To view differential reports using BESTCOMSPlus®, use the Metering Explorer to open the Reports,
Differential Report screen shown in Figure 36-1.
From this screen, you can choose to Download the latest differential report into BESTCOMSPlus, Save
the latest differential report to a file, or Trigger a new differential report.

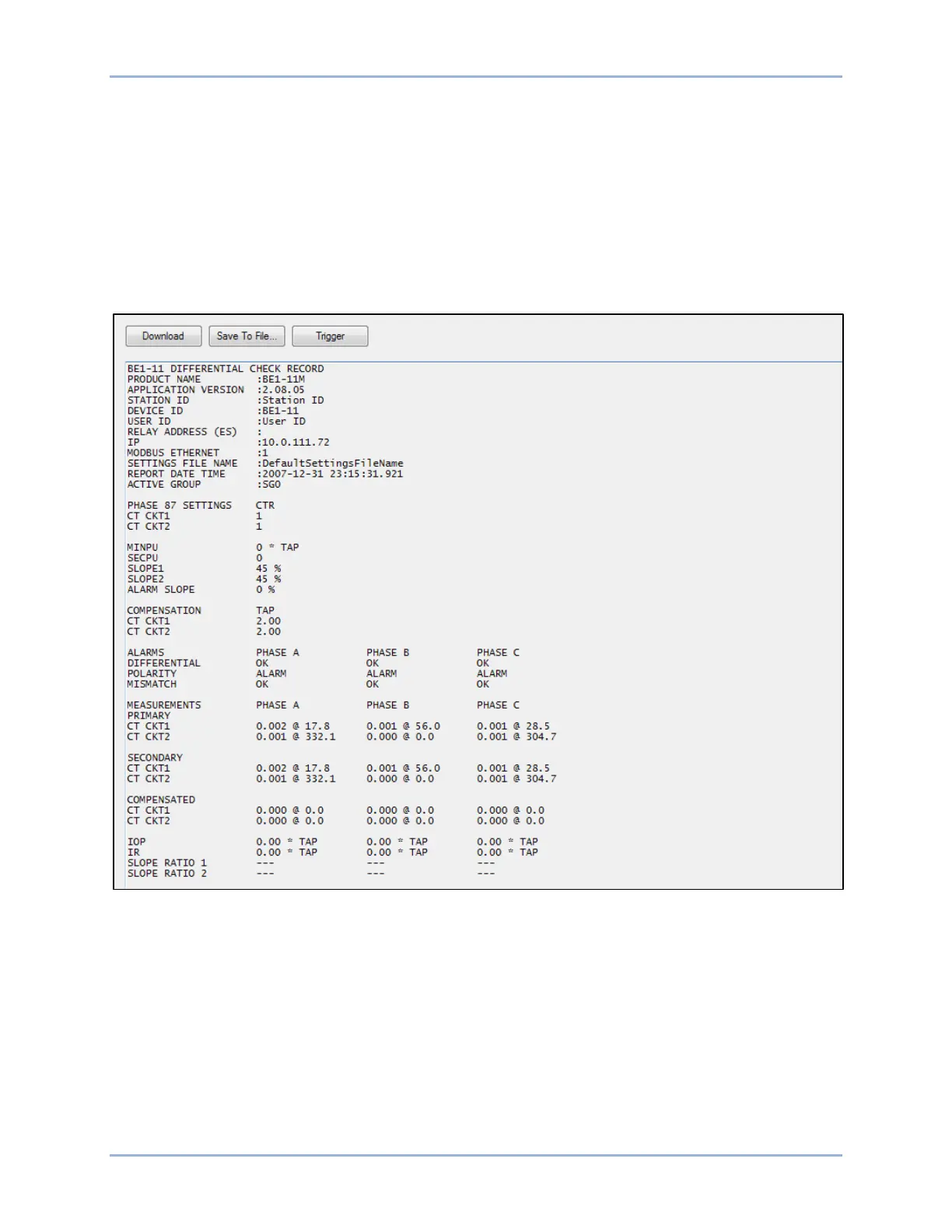

Figure 36-1. Differential Report Screen
