BE1-11m Quick Start

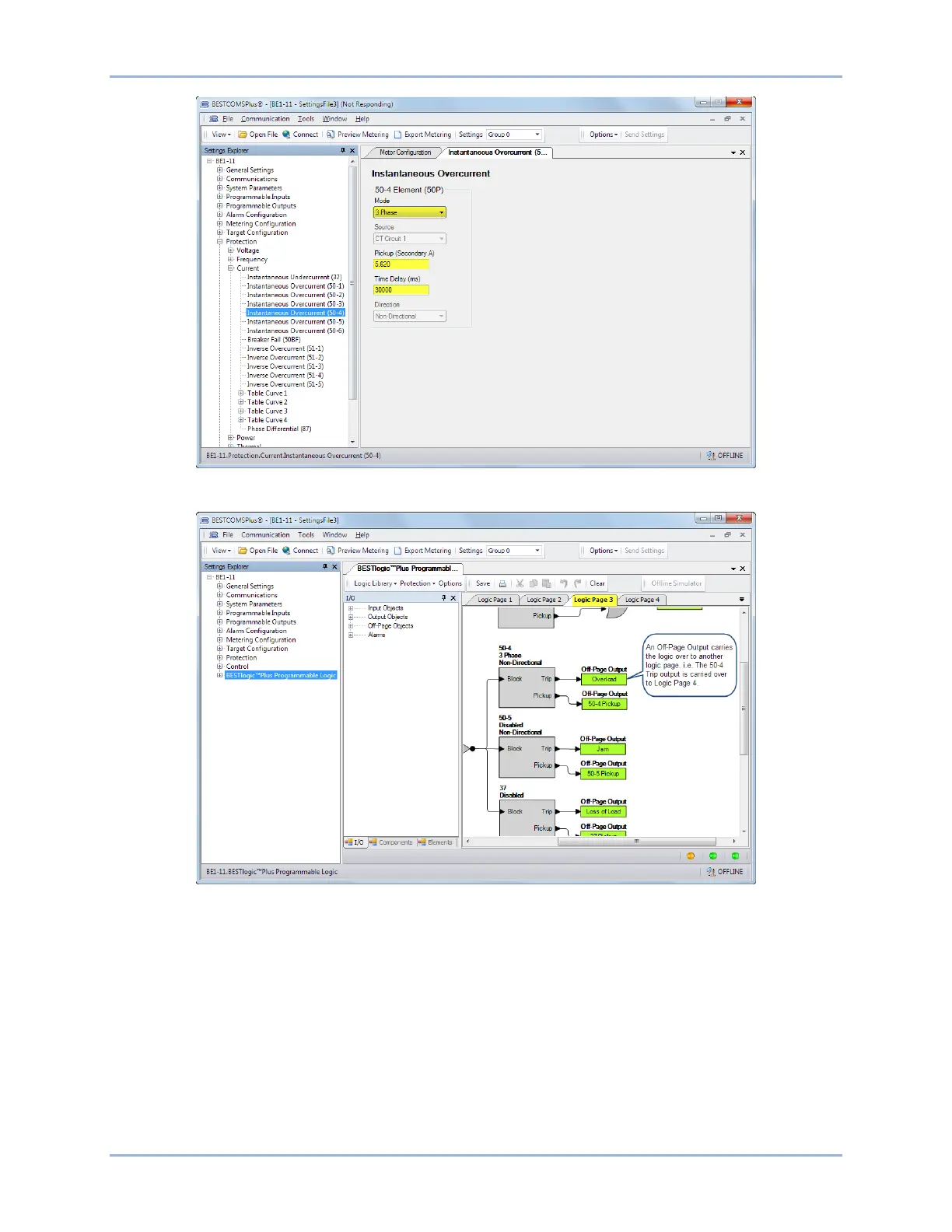

Figure 2-11. Instantaneous Overcurrent (50-4) Screen
Figure 2-12. BESTlogicPlus Logic Page 3
Step 10: In this step, the Pickup output of the 50-4 element is connected to Output 4. When the Pickup
output of the 50-4 element is true, the label of Output 4 is displayed in the fault report and/or
sequence of events report. The label is named in Step 12. Click the Logic Page 3 tab and then
click the I/O tab at the bottom. Expand Output Objects and then Physical Outputs. Click and
drag OUT4 over to the logic diagram. Click on the Pickup output of the 50-4 element and drag it
to the input of OUT4 to make a connection. Refer to Figure 2-14.
