82-28 9424200996
Time Curve Characteristics BE1-11m

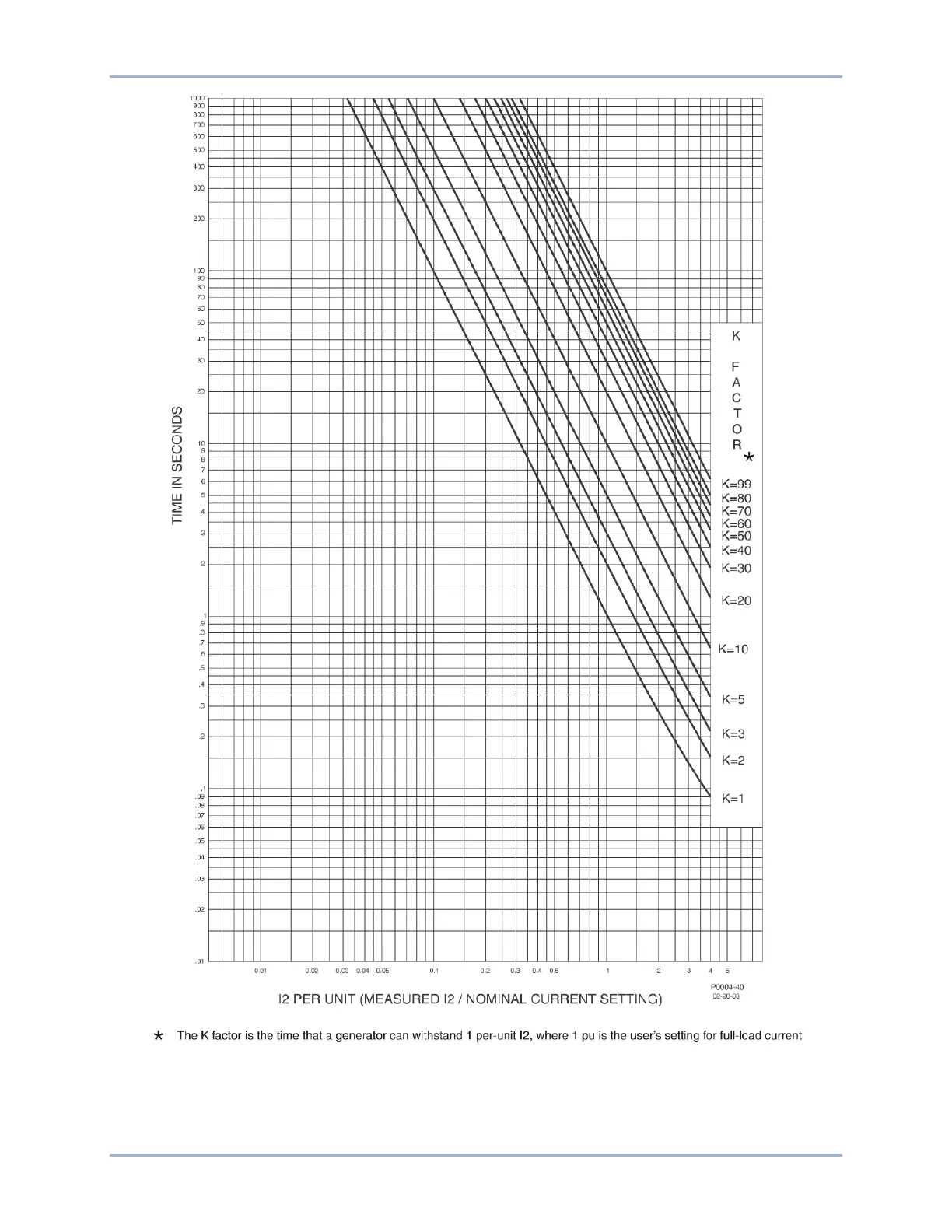

Figure 82-23. 46 Time Characteristic Curve
NOTE: Curves are shown as extending farther to the left than they will in practice. Curves stop at pickup
level. For example, if the user selects 5A FLC and a pickup setting of 0.5A, the per-unit pickup is 0.1A. The
BE1-11m will not pick up at less than 0.1 pu I2 for these settings.
