Note that if you attempt to trigger a new exposure start while the previous exposure is still in
progress (overtriggering), the trigger signal will be ignored. This situation is illustrated in Fig. 19 for
rising edge triggering.
ExLSTrig Signal Period
ExLSTrig Signal

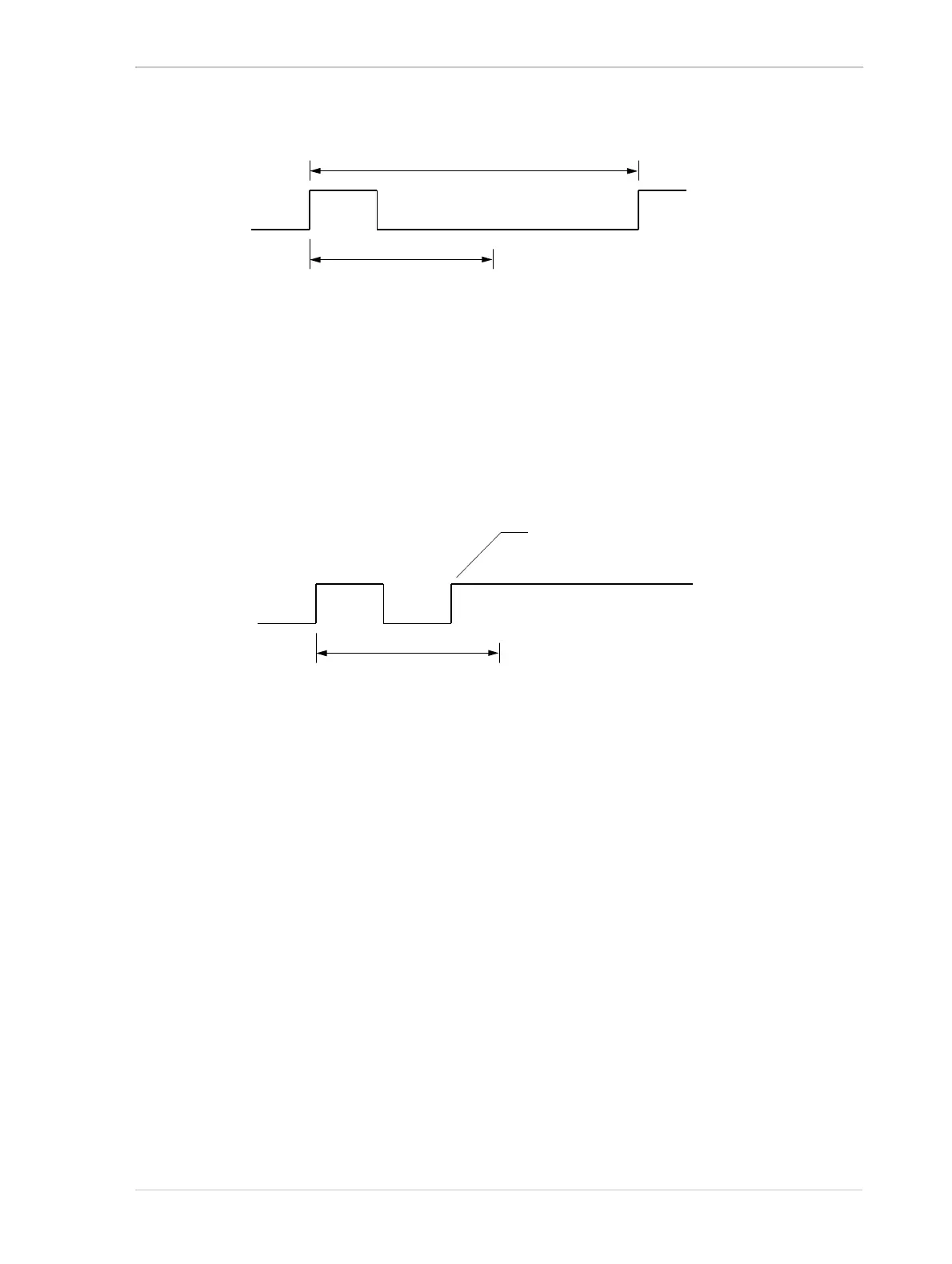

Fig. 18: Timed Exposure with Rising Edge Triggering
Exposure
(duration determined by the
exposure time parameter or
register setting)
This rise in the trigger signal will be
ignored due to overtriggering
ExLSTrig Signal
Fig. 19: Overtriggering with Timed Exposure
Exposure
(duration determined by the
exposure time parameter or
register setting)
