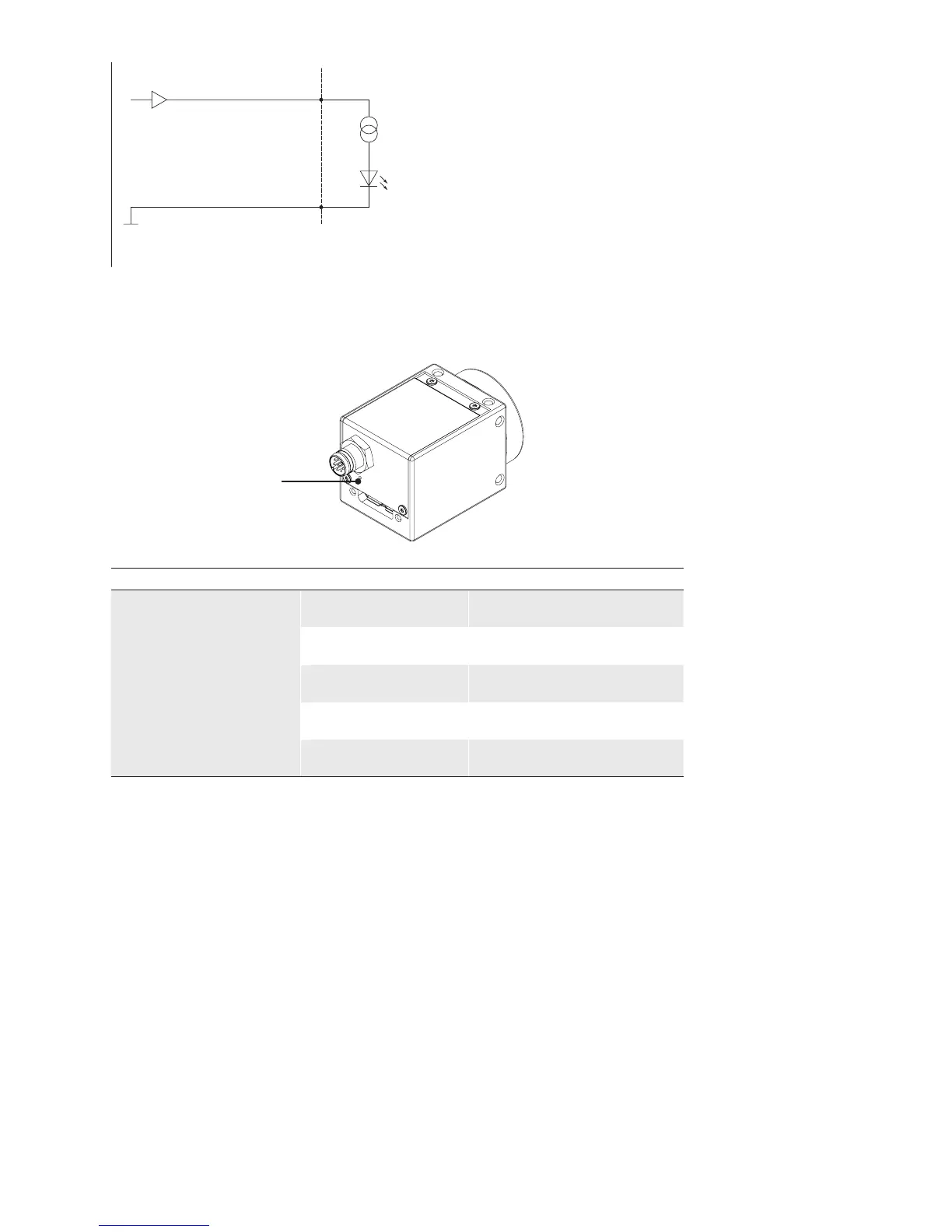

7.2.5 LED Signaling
LED
Signal Meaning
LED
green ash Power on
green USB 3.0 connection
red USB 2.0 connection
yellow Readout active
red ash Update
◄Figure3
LED position on Bau-
mer VCXU camera.
