8. ProductSpecications
8.1 Spectral Sensitivity

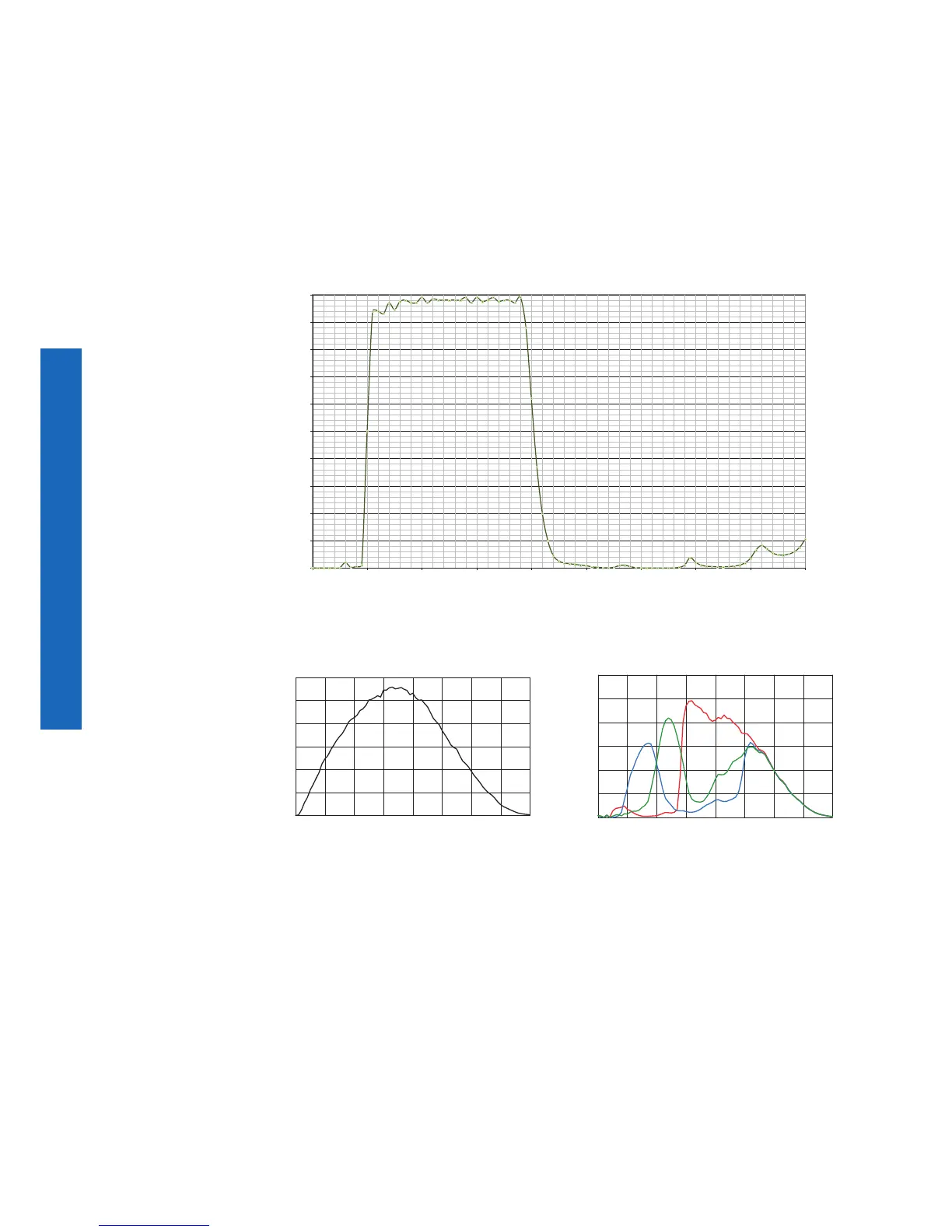

The spectral sensitivity characteristics of monochrome and color matrix sensors for cam-
eras of this series are displayed in the following graphs. The characteristic curves for
the sensors do not take the characteristics of lenses and light sources without lters into
consideration.
Values relating to the respective technical data sheets of the sensors.
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
300400 500600 700800 900100011001200
Transmission
wavelength in nm
Filter glass of color cameras
Wave Length [nm]
VCXG-53M
0
1000
2000
3000
4000
5000
6000
300 400 500 600700 800900 1000
1100
Response [V/s/W/m
2
]
Wave Length [nm]
VCXG-53C
0
1000
2000
3000
4000
5000
6000
300 400 500 600700 800900 1000 1100
Response [V/s/W/m
2
]
Figure4►
Spectral sensitivities for
Baumer cameras with
5.0 MP sensor.
