Baumer VCXG - One Push White Balance; Analog Controls: Offset and Gain; Offset; Black Level Adjustment

46
9.3.2 One Push White Balance (Once)
Here, the three color spectrums are balanced to a single white point. The correction fac-
tors of the color gains are determined by the camera (one time).
Notice
When images are acquired in trigger mode, the white balance affects on the next ac-
quired image.
non-adjusted
histogramm
histogramm after
„one push“ white
balance
9.3.3 Continuous White Balance
In the Continuous mode the white balance is automatically performed once per second.
9.4 Analog Controls
9.4.1 Offset / Black Level
On Baumer VCX cameras, the offset (or black level) is adjustable from 0 to 255 LSB (re-
lating to 12 bit).
9.4.1.1 VCXG
Camera Type Step Size 1 LSB
Relating to
Monochrome
VCXG-53M 10 bit
Color
VCXG-53C 10 bit
9.4.1.2 VCXU
Camera Type Step Size 1 LSB
Relating to
Monochrome
VCXU-23M 12 bit
VCXU-50M 12 bit
Color
VCXU-23C 12 bit
VCXU-50C 12 bit

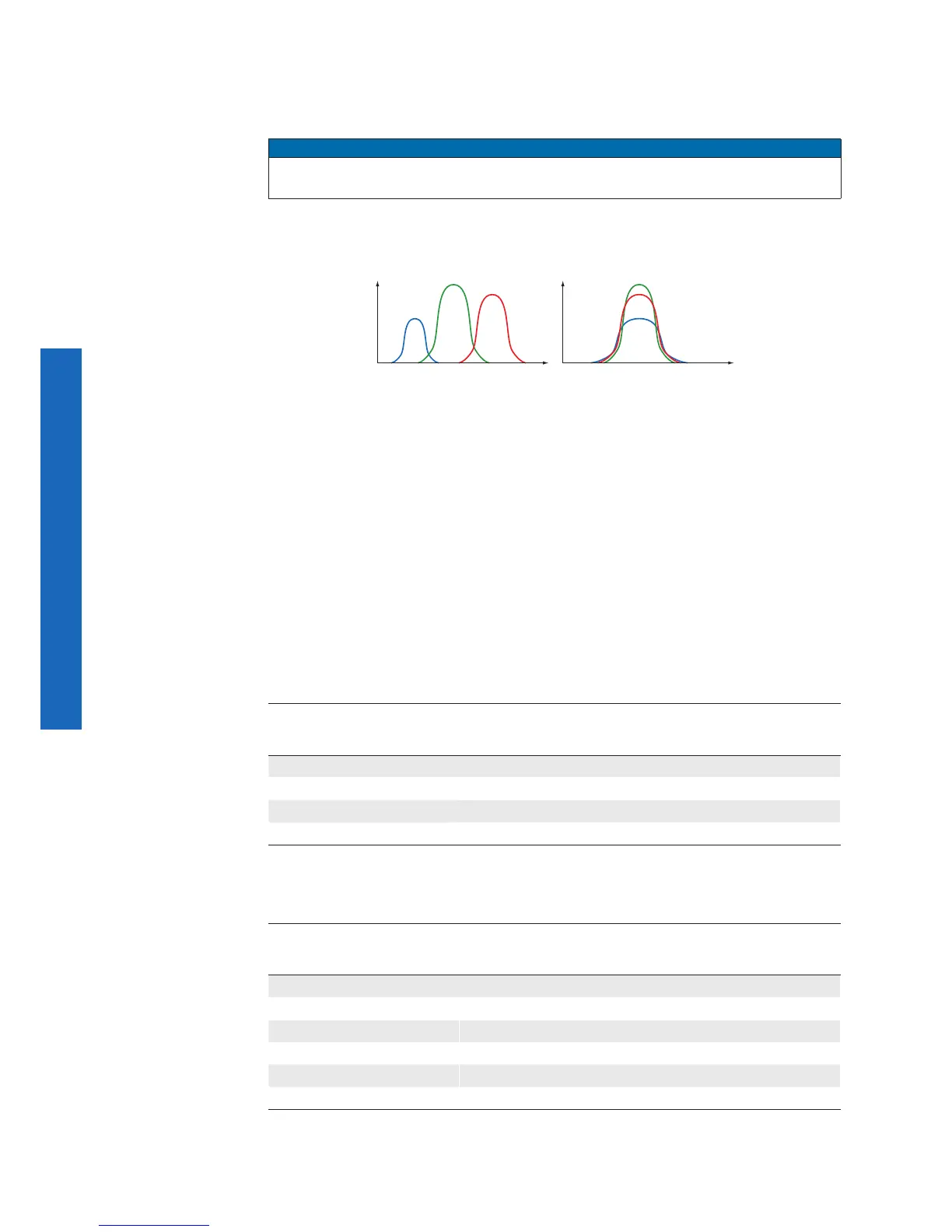

Figure35►
Examples of histo-
gramms for a non-ad-
justed image and for an
image after "one push"
white balance.
