Baumer VCXG - RAW Pixel Formats and Binning

42
RAW pixel formats
In the raw pixel formats (e.g. BayerRG8) the color values of neighboring pixels with the
same color are combined.

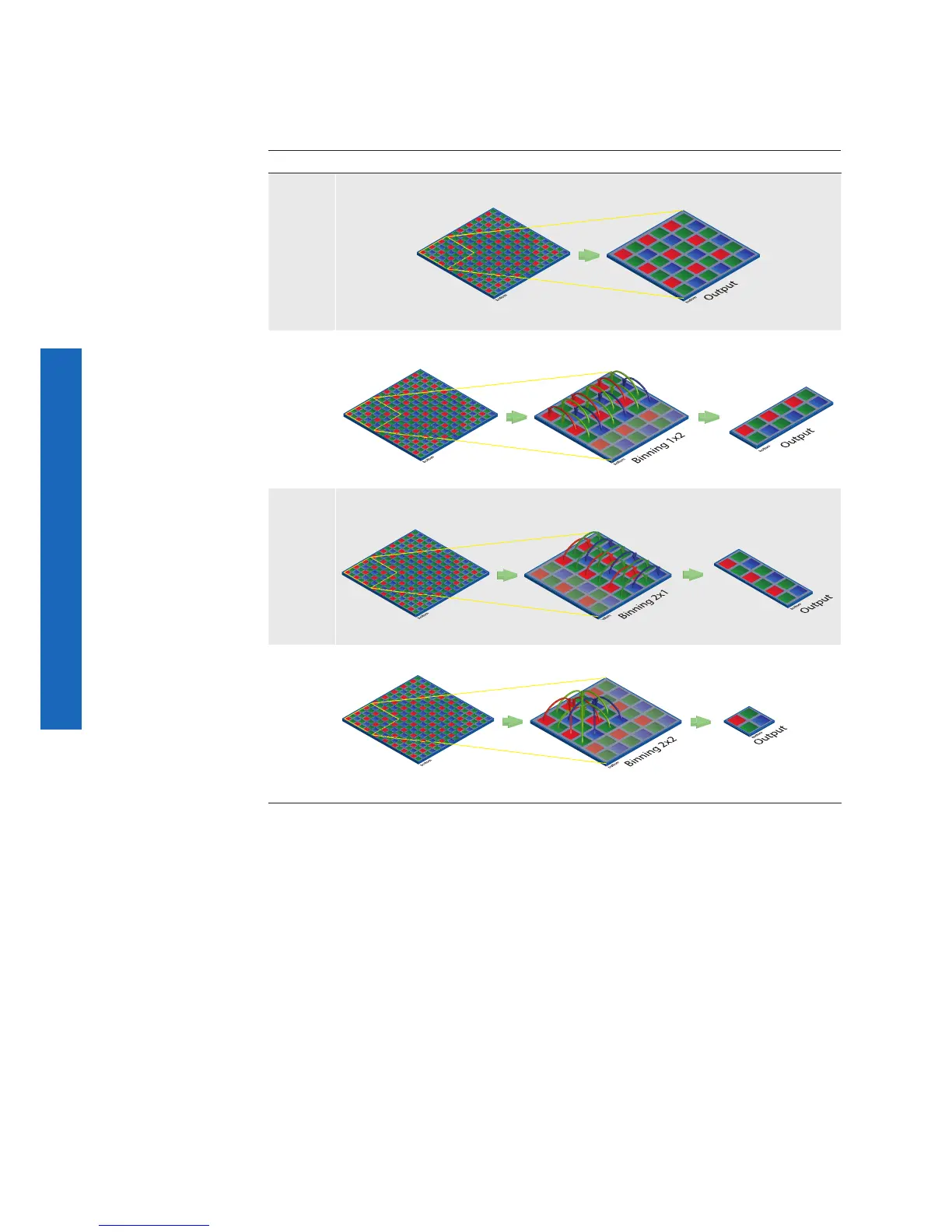

Binning Illustration
without
1x2
2x1
2x2
Figure25►
Full frame image, no
binning of pixels.
Figure26►
Vertical binning causes
a vertically compressed
image with doubled
brightness.
Figure27►
Horizontal binning
causes a horizontally
compressed image with
doubled brightness.
Figure28►
Bidirectional binning
causes both a hori-
zontally and vertically
compressed image with
quadruple brightness.
