9.6.1.3 CongurableOutputs
With this feature, Baumer gives you the option to wire the output connectors to internal
signals that are controlled on the software side.
On CX cameras, the output connector can be wired to one of the provided internal signals:
Signals
Off UserOutput1
TriggerReady Timer1
ExposureActive ReadoutActive
(Output) Line 0
state high
state low
(Output) Line 1*
state high
state low
(Output) Line 2*
state high
state low
IO Matrix
state selection
(inverter)
signal selection
(software side)
Signals
* Example, if the two GPIO's are used as Output.

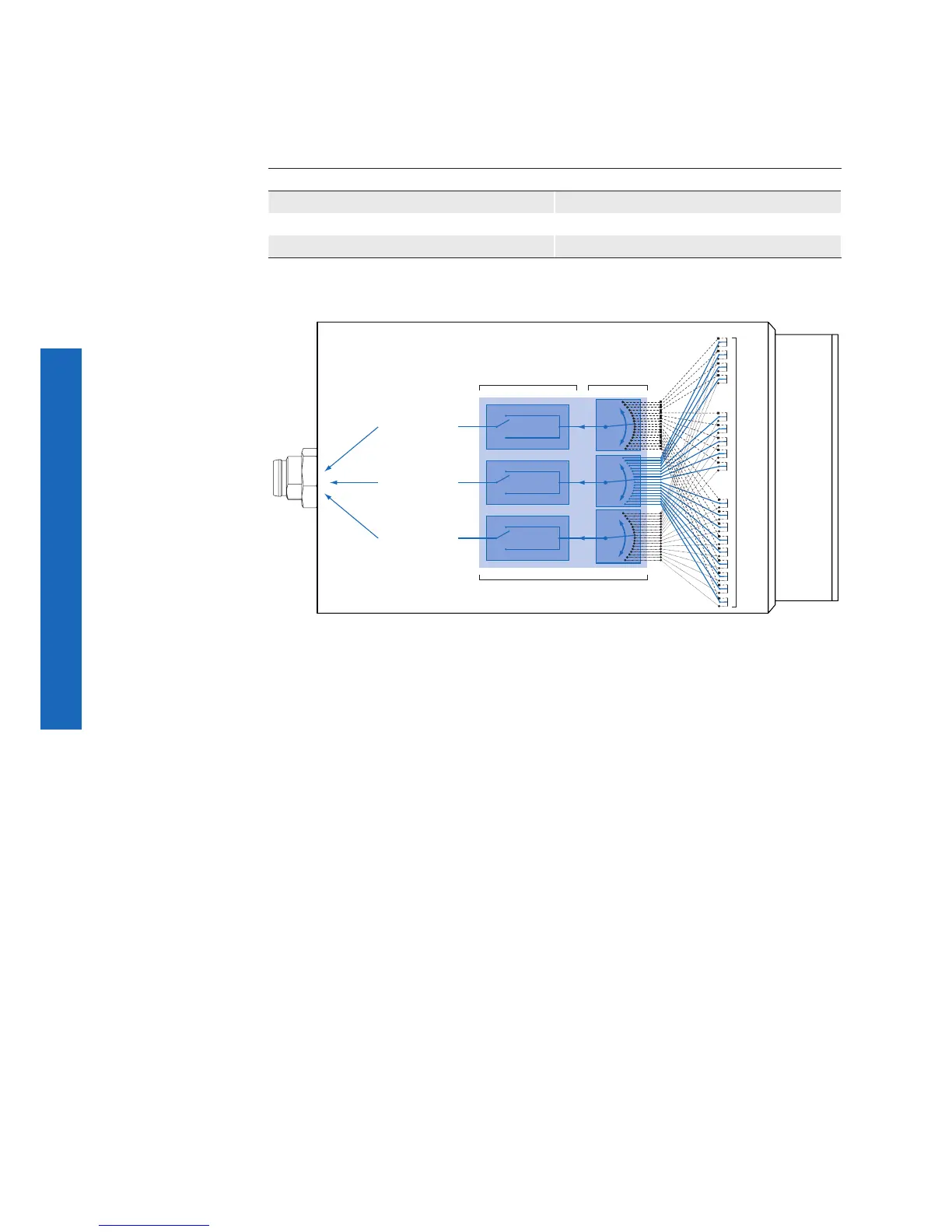

Figure39►
IO matrix
