Baumuller b Maxx Series User Manual

t

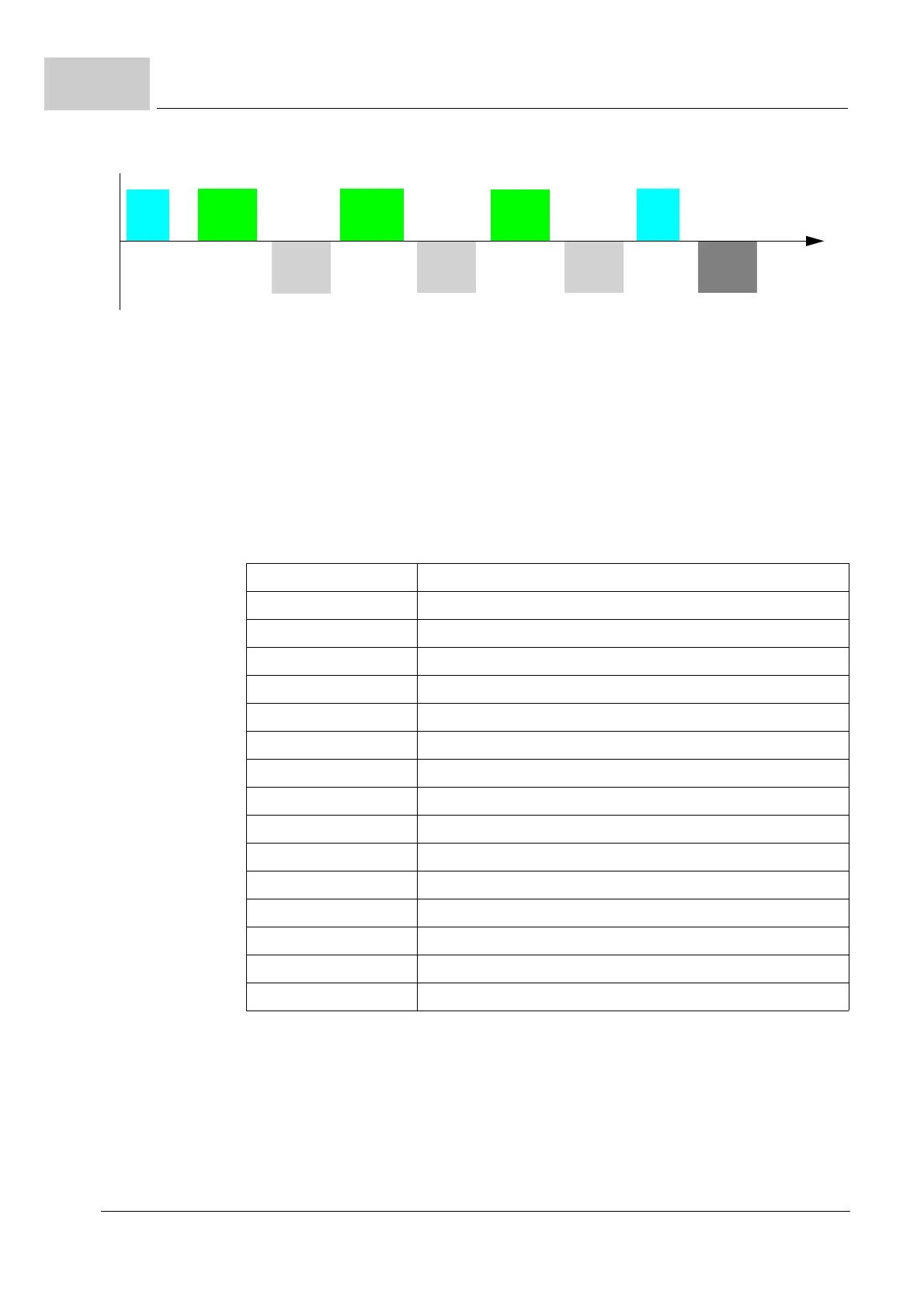

SOC PReq PReq PReq SoA
PRes
PRes
PRes
ASnd
Basic principles POWERLINK
Application Manual POWERLINK Controlled Node
Document no. 5.13013.04 Baumüller Nürnberg GmbH
12
of 80
3.2
Device profile POWERLINK supports the CANopen device profiles. These profiles describe application-
specific and device-specific definitions, meaning of the data with regard to contents and
device functionality. Amongst others, there are device profiles for drives, I/O modules, en-
coders or programmable devices. The option module POWERLINK Co
ntrolled Node for
the b maXX 4000 controller is implemented according to the device profile DSP402
(Drives and Motion Control).
Object directory The main element of a device profile is the object directory.
The basis for this is the CANopen object directory:
Index (hex) Object
0x0000 Not used
0x0001 - 0x001F Static data types
0x0020 - 0x003F Complex data types
0x0040 - 0x005F Manufacturer specific complex data types
0x0060 - 0x007F Device profile specific static data types
0x0080 - 0x009F Device profile specific complex data types
0x00A0 - 0x03FF Reserved
0x0400 - 0x041F POWERLINK specific static data types
0x0420 - 0x04FF POWERLINK specific complex data types
0x0500 - 0x0FFF Reserved
0x1000 - 0x1FFF Communication profile area
0x2000 - 0x5FFF Manufacturer specific profile area
0x6000 - 0x9FFF Standardized device profile area
0xA000 - 0xBFFF Standardized interface profile area
0xC000 - 0xFFFF Reserved
The objects are always addressed by means of an
index (16 bit) and additionally a sub-
index (8 bit).

Baumuller b Maxx Series Specifications

General

Control Voltage	24 V DC
Protection Class	IP20
Series	b Maxx
Category	Controller
Communication Interfaces	Ethernet, CANopen, PROFIBUS
Feedback Systems	Resolver, Incremental encoder, Absolute encoder
Operating Temperature	0°C to +45°C
Relative Humidity	5% to 95% (non-condensing)
