Baumuller b Maxx Series User Manual

Configuration Example with B&R X20 PLC
Application Manual POWERLINK Controlled Node
Document no. 5.13013.04
43
of 80
6

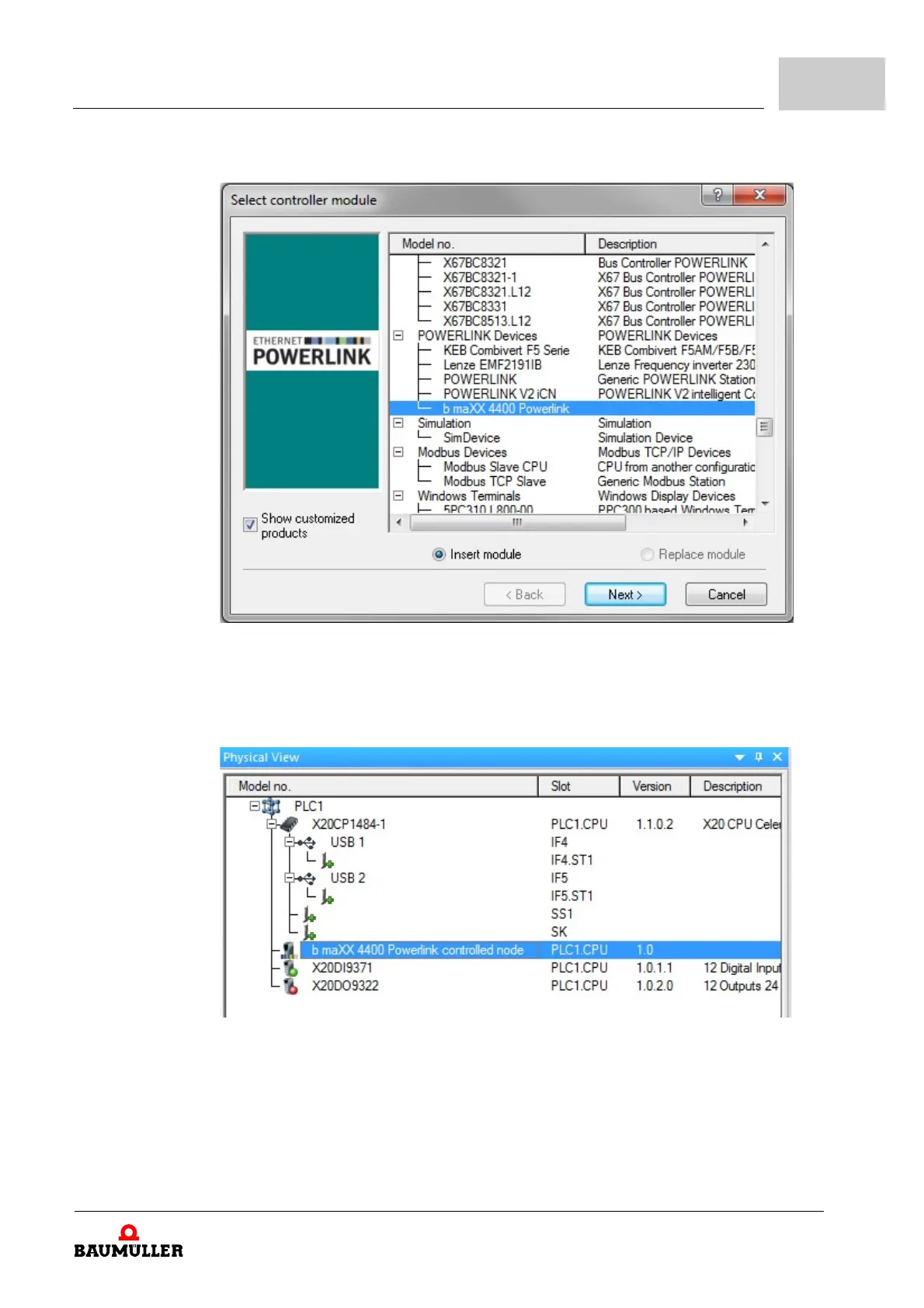

Figure 5: Configuration - Select controller module
Following a successful import, the option module appears in the Automation Studio Phys-
ical View.
Figure 6: Configuration - option module in Physical View

Baumuller b Maxx Series Specifications

General

Control Voltage	24 V DC
Protection Class	IP20
Series	b Maxx
Category	Controller
Communication Interfaces	Ethernet, CANopen, PROFIBUS
Feedback Systems	Resolver, Incremental encoder, Absolute encoder
Operating Temperature	0°C to +45°C
Relative Humidity	5% to 95% (non-condensing)
