BBK DK2810HD - Page 44

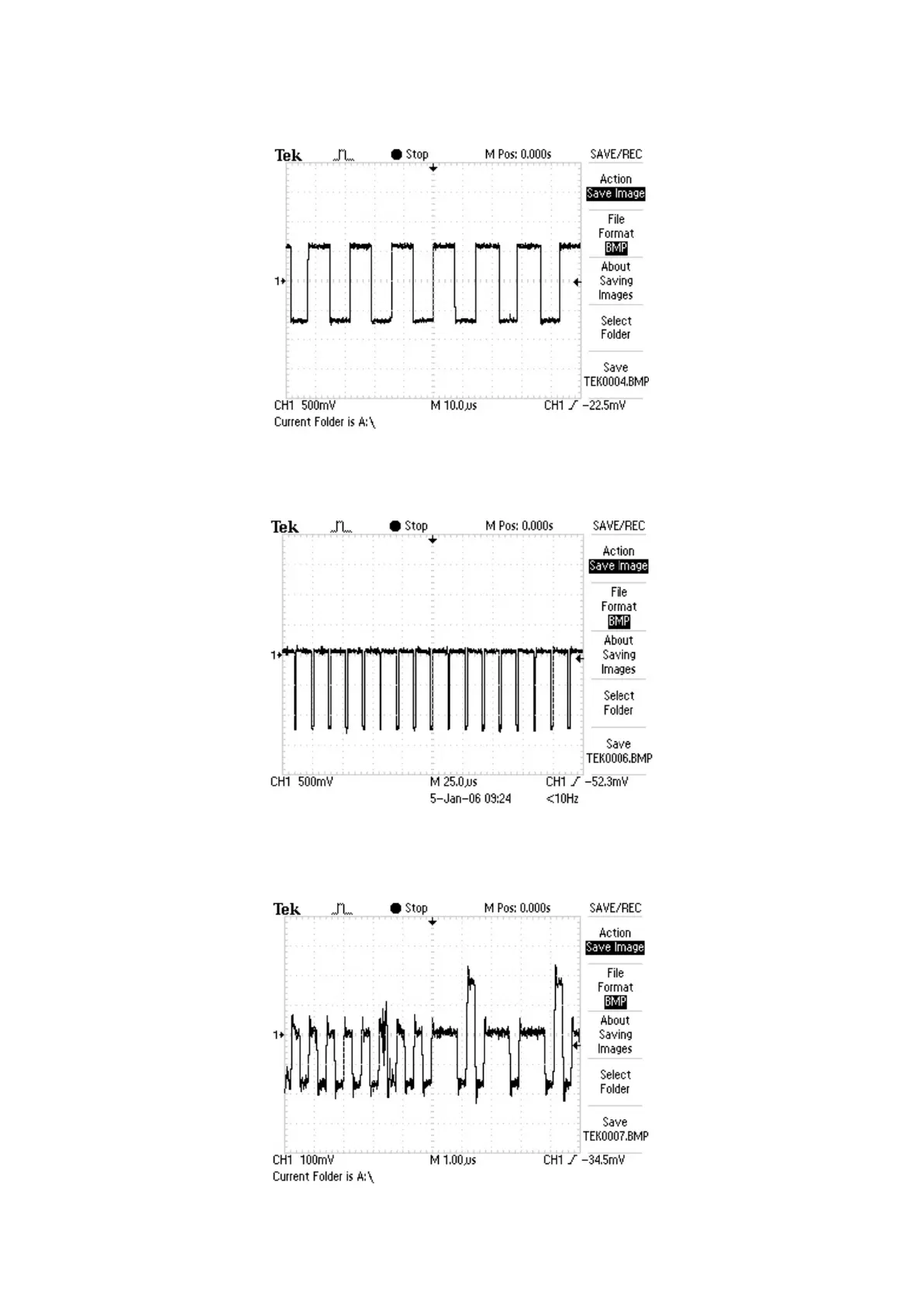

3. DMO signal (when there is main axis rotation) waveform diagram of pin 36 of N3 (MT1389)
4. FMO signal (when there is feed) waveform diagram of pin 37 of N3 (MT1389)
5. TRO signal (when there is trace) waveform diagram of pin 40 of N3 (MT1389)
- 40 -
