Device Configuration
Access Management – Packet Filter (IP & MAC Filter)
88
BEC MX-210NP User Manual

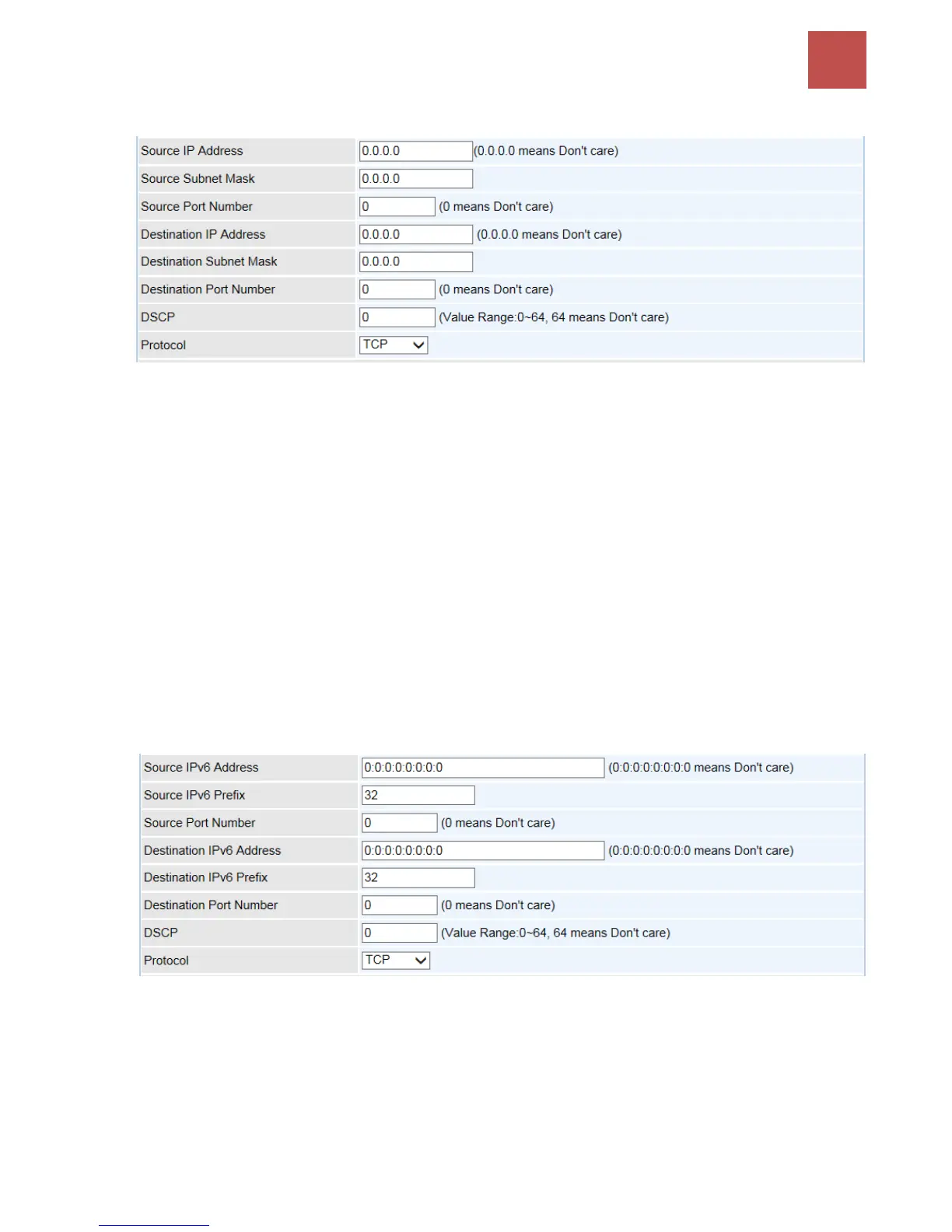

 IPv4
Source IP Address: The source IP address of packets to be monitored. 0.0.0.0 means “Don’t
care”.
Source Subnet Mask: Enter the subnet mask of the source network.
Source Port Number: The source port number of packets to be monitored. 0 means “Don’t
care”.
Destination IP Address: The destination IP address of packets to be monitored. 0.0.0.0
means “Don’t care”.
Destination Subnet Mask: Enter the subnet mask of the destination network.
Destination Port Number: This is the Port that defines the application. (E.g. HTTP is port 80.)
DSCP: DSCP: Differentiated Services Code Point, it is recommended that this option be
configured by an advanced user or keep 0. (0 means Don’t care.)
Protocol: Specify the packet type (TCP, UDP, ICMP, and ICMPv6) that the rule applies to.
 IPv6
Source IP (IPv6) Address/ Prefix: The source IP address or range of packets to be monitored.
Source Port Number: The source port number of packets to be monitored.
Destination IP (IPv6) Address/ Prefix: The destination subnet IP address.
Destination Port Number: This is the Port or Port Ranges that defines the application.
DSCP: show the set DSCP.
Protocol: It is the packet protocol type used by the application. Select either TCP or UDP or
