Beckhoff AX5000 Series Function Manual

Power Management
Function description70
Version: 1.5
16 Power Management
Note
Power management reference values:
P-0-0201; P-0-0202; P-0-0203; P-0-0214
The AX5000 is normally operated with a 3-phase AC voltage. This is rectified in the device with the aid of a
bridge rectifier and charges the DC link. Furthermore, there is an option to input a DC voltage.
Parameterization:
• Mains voltage with P-0-0201
• Tolerances with P-0-0202 and P-0-0203
• DC link connection with P-0-0214
The further basic parameterization then takes place according to the following criteria:
• Voltage on X01:
AC 3-phase or single -phase or DC input.
All monitors are activated (default parameterization).
The phase monitoring must be deactivated in the case of “AC single-phase” or “DC”.
• DC voltage on X02:
In P-0-0204, activate the commands “DisableUmainMonitoring” and “DisableUmainLossMonitoring”.
There is NO LONGER ANY DEVICE PROTECTION via X01! Further information in the section DC
input.
16.1 Mains voltage monitoring
The servo drive monitors the connected mains voltage for minimum and maximum values. To this end the

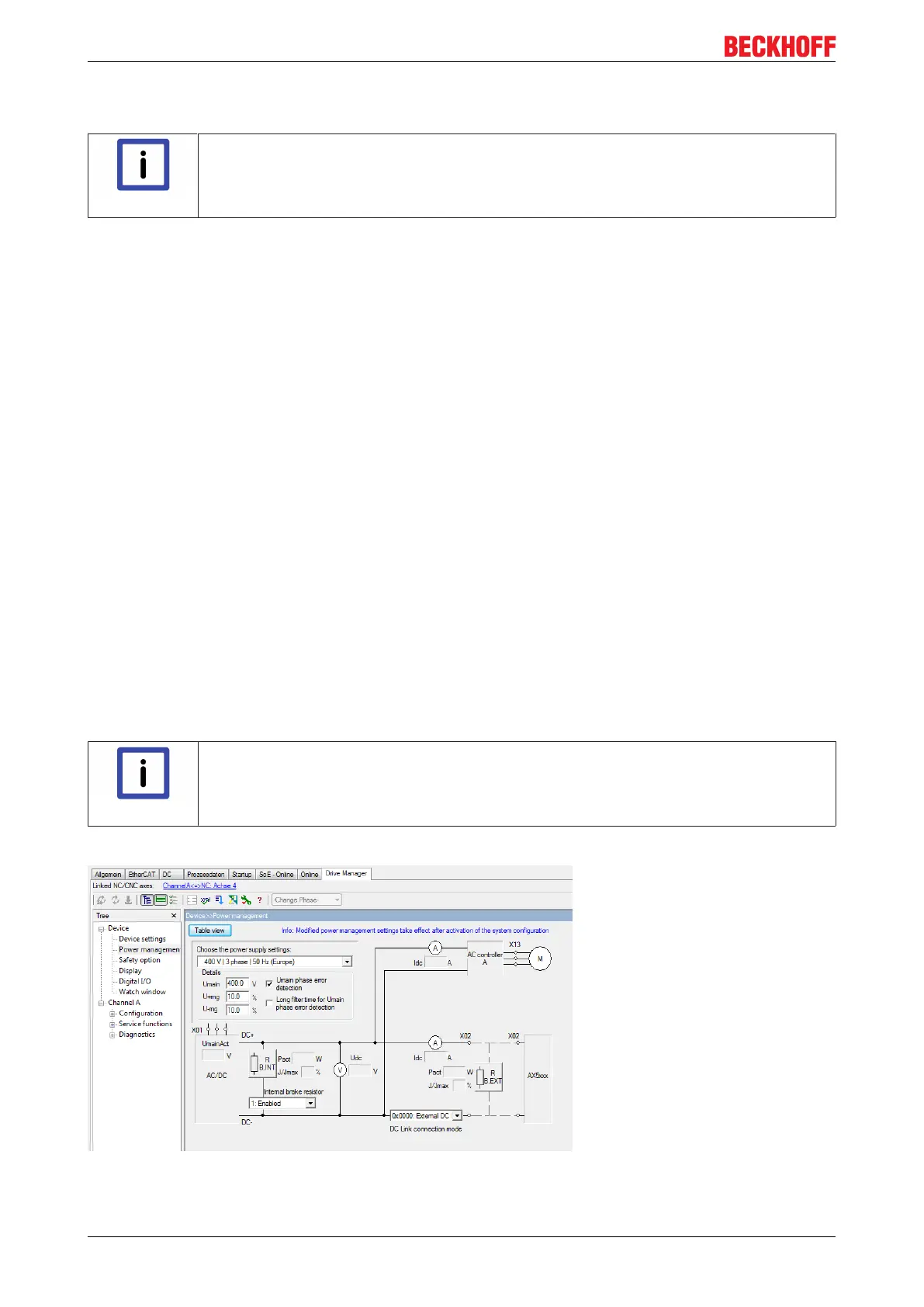

value of the connected voltage and the permitted tolerance values are specified. The diagram below shows
the TCDriveManager configuration option. The section outlined in red is used for configuring the mains
voltage with min./max. values. Mains phase monitoring is activated or deactivated in the section outlined in
purple. Phase monitoring is always based on 3-phase mains.
Note
phase monitoring
Phase monitoring must be disabled for single-phase mains supply, to facilitate commission-
ing of the servo drive.

Beckhoff AX5000 Series Specifications

General

Control	EtherCAT
Protection Class	IP20
Feedback	Resolver, EnDat, Hiperface, SSI
Safety	STO (Safe Torque Off)
Relative Humidity	5% to 95%, non-condensing
Certifications	CE, UL, cUL
Operating Temperature	0…+45 °C
