Beckhoff AX5000 Series Function Manual

Comissioning a Generic Encoder with BISS-C Interface
Function description 29
Version: 1.5

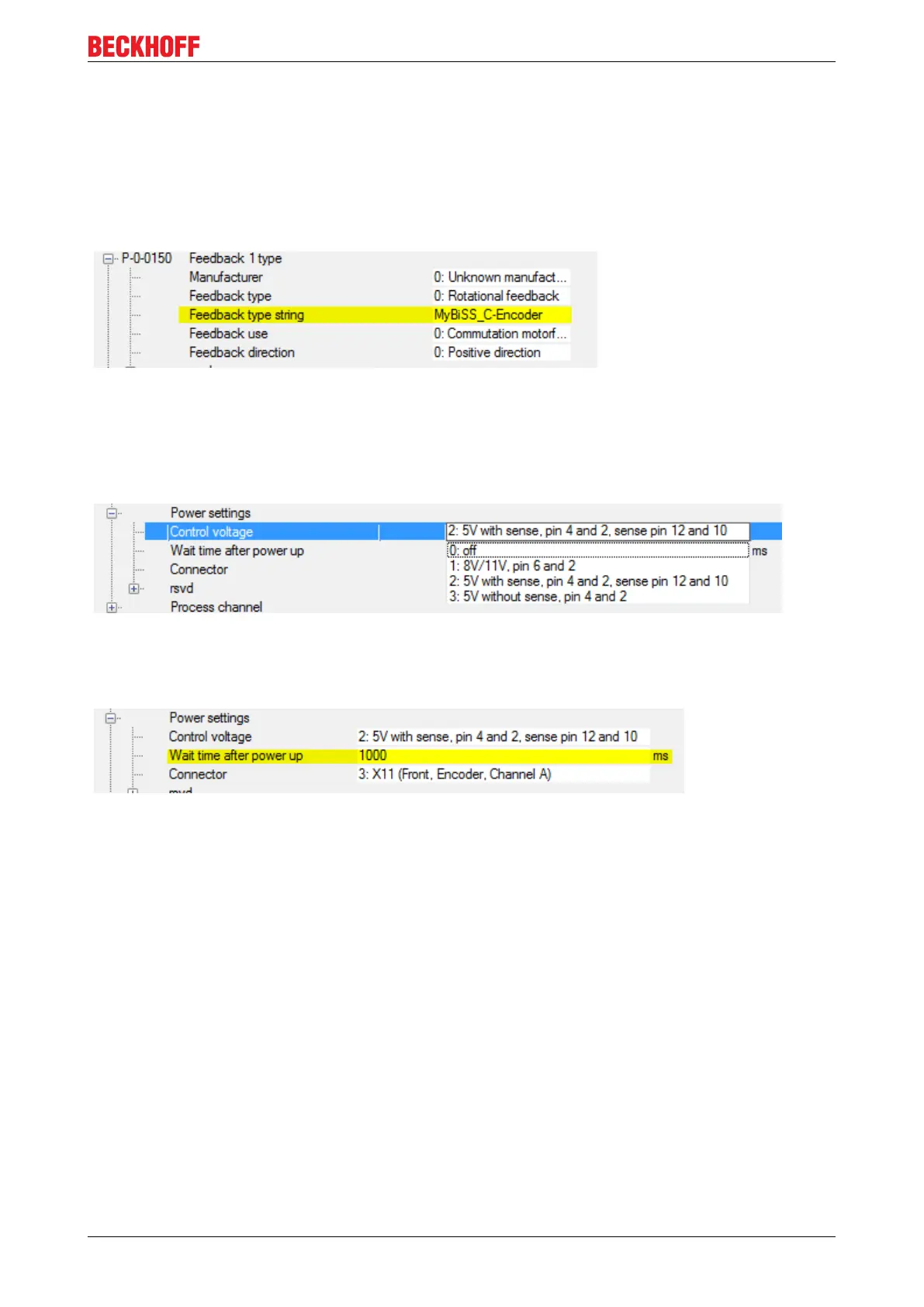

7.7 Definition of Parameter P-0-0150
7.7.1 Feedback Type string
The name of the encoder is not important for operation. It may be changed to remember what encoder you
are using:
7.7.2 Power Settings
Please choose the correct power supply accoding to the datasheet of your encoder. Correct voltage and
"sense" setting is essential.
"Wait time after power up" is a delay after switching the power supply on, before the AX5000 starts
communicating with the encoder. If you do not know the correct value, keep the default.
The "Connector" should be correct if the correct encoder has been chosen. If not, please correct!
