Product overview
C6030 13Version: 2.7
3.2.4 DisplayPort
The Industrial PC has two DisplayPorts (X110, X111) that enable connection of devices with DisplayPort. It
facilitates transfer of image signals.
In addition, DVI signals can be transferred via an adapter. Please order it from your Beckhoff sales team,
quoting order identifier C9900-Z468 adapter cable DisplayPort to DVI, 40 cm.
DisplayPort signals are led out via the interface by default. With the use of a level shifter cable the board
switches the DisplayPort specification automatically to HDMI signals.
X110
X111
Port B
Port A
1
2
19
20
1
2
19
20

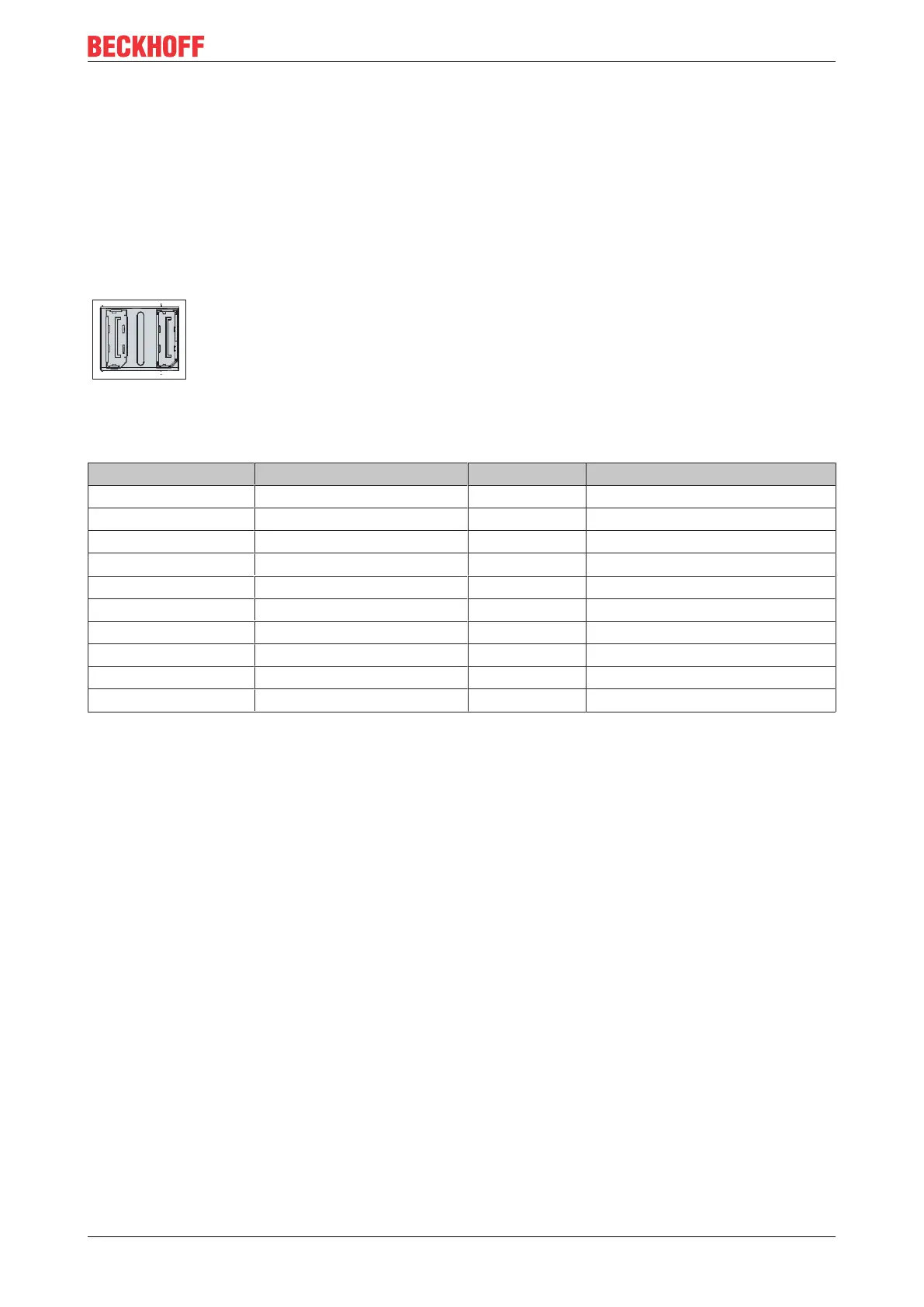

Fig.5: C6030_DisplayPort pin numbering
Table6: Pin assignment of DisplayPort
Pin Connection Pin Connection
1 LVDS lane 0 + 2 Ground
3 LVDS lane 0 - 4 LVDS lane 1 +
5 Ground 6 LVDS lane 1 -
7 LVDS lane 2 + 8 Ground
9 LVDS lane 2 - 10 LVDS lane 3 +
11 Ground 12 LVDS lane 3 -
13 Config 1 14 Config 2
15 AUX channel + 16 Ground
17 AUX channel - 18 Hot-plug detection
19 Power supply: Ground 20 Power supply: 3.3 V/500 mA
