Commissioning
C603018 Version: 2.7
4.2 Installation in the control cabinet
The C6030 Industrial PC is designed for installation in control cabinets in machine and plant technology.
Please observe the environmental conditions prescribed for the operation (see Chapter 9 Technical data
[}39]).
Using different mounting plates, you can align the cable entry based on the application requirements.

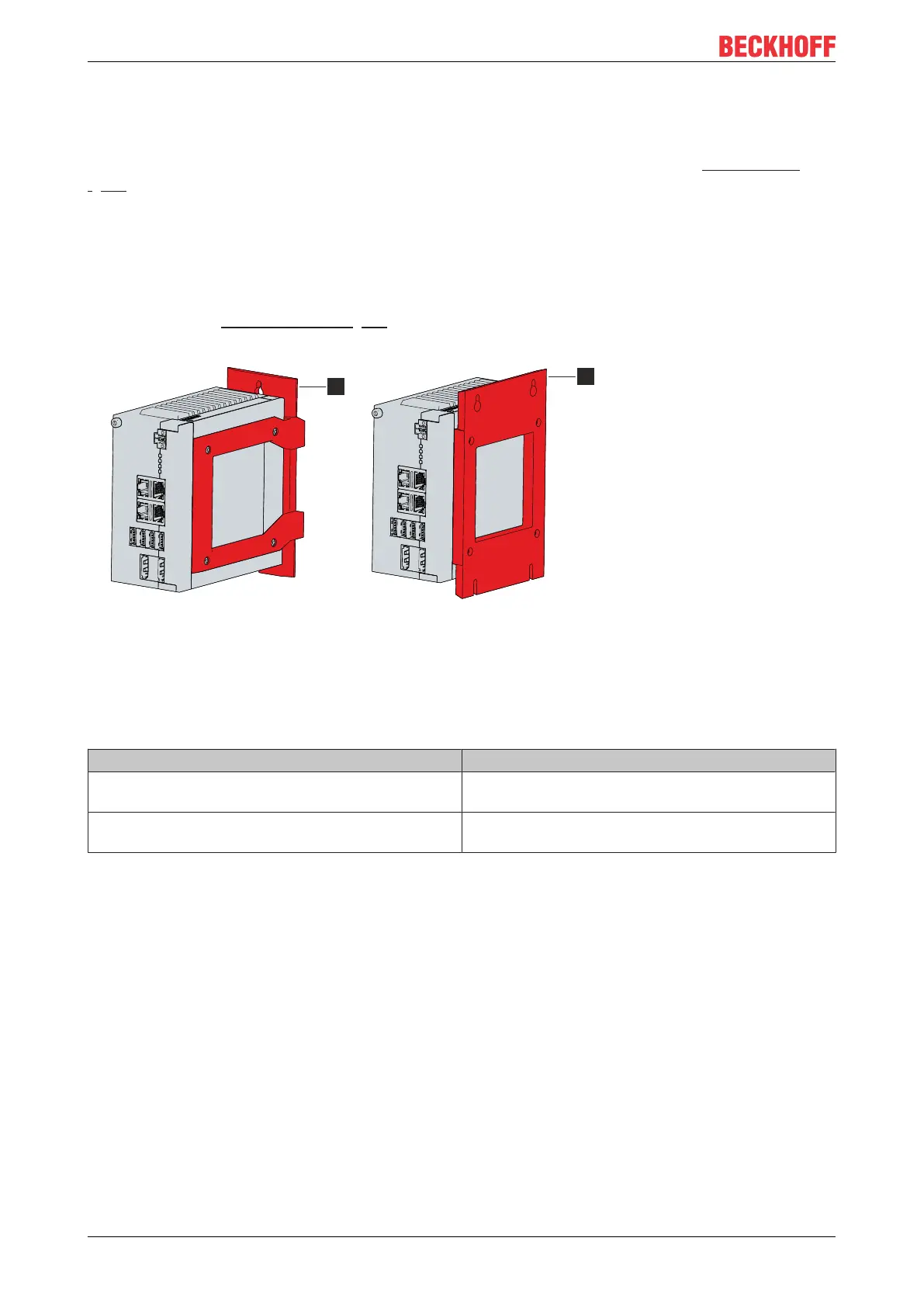

Figure 8 shows the two available mounting plates: the standard mounting plate 1 and the optional mounting
plate 2. In both cases, the plate is attached to the right-hand side wall of the Industrial PC with four Torx
TX10 screws and a tightening torque of approx. 0.5 Nm. You can turn both mounting plates before fastening
them such that the PC can be mounted in the desired orientation for the cable entry in the control cabinet
(see Chapter 4.2.1 Mounting options [}19]).
Fig.8: C6030 _Mounting plates
In the basic configuration, the Industrial PC is delivered with a standard mounting plate 1 already mounted
as shown in fig. 8. The scope of delivery does not include any further mounting plates. You can choose the
following ordering options:
Table12: Mounting plate ordering options
Order designation Execution
C9900-M668 Mounting plate on the side wall, instead of the
standard mounting plate
C9900-M669 Mounting plate for side mounting of the C603x, single
part, not mounted
