Maintenance
C6030
36
Version: 2.7
A
B
C

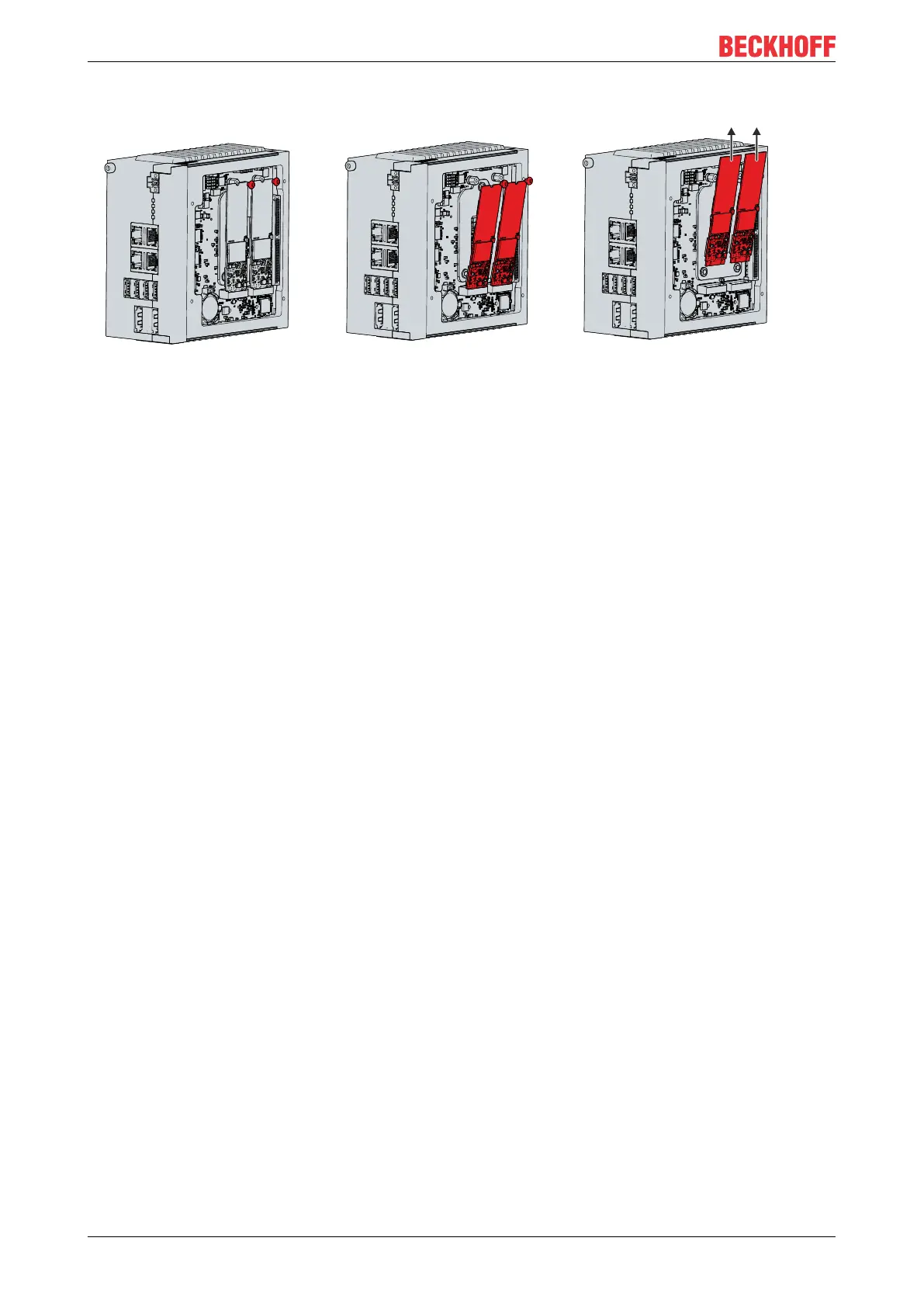

Fig.22: C6030 _Replace storage media
3.
Insert the new SSD into the slot in the same inclined position.
4.
Push down the protruding side of the SSD.
5.
Replace the bolt and the fastening screw and tighten them with a tightening torque of approx. 0.3 Nm.
ð
You have replaced the SSD.
The old SSD must be disposed of in accordance with the national electronic scrap regulations.
35
37
