Product overview
C6030 9Version: 2.7
3.1 Structure

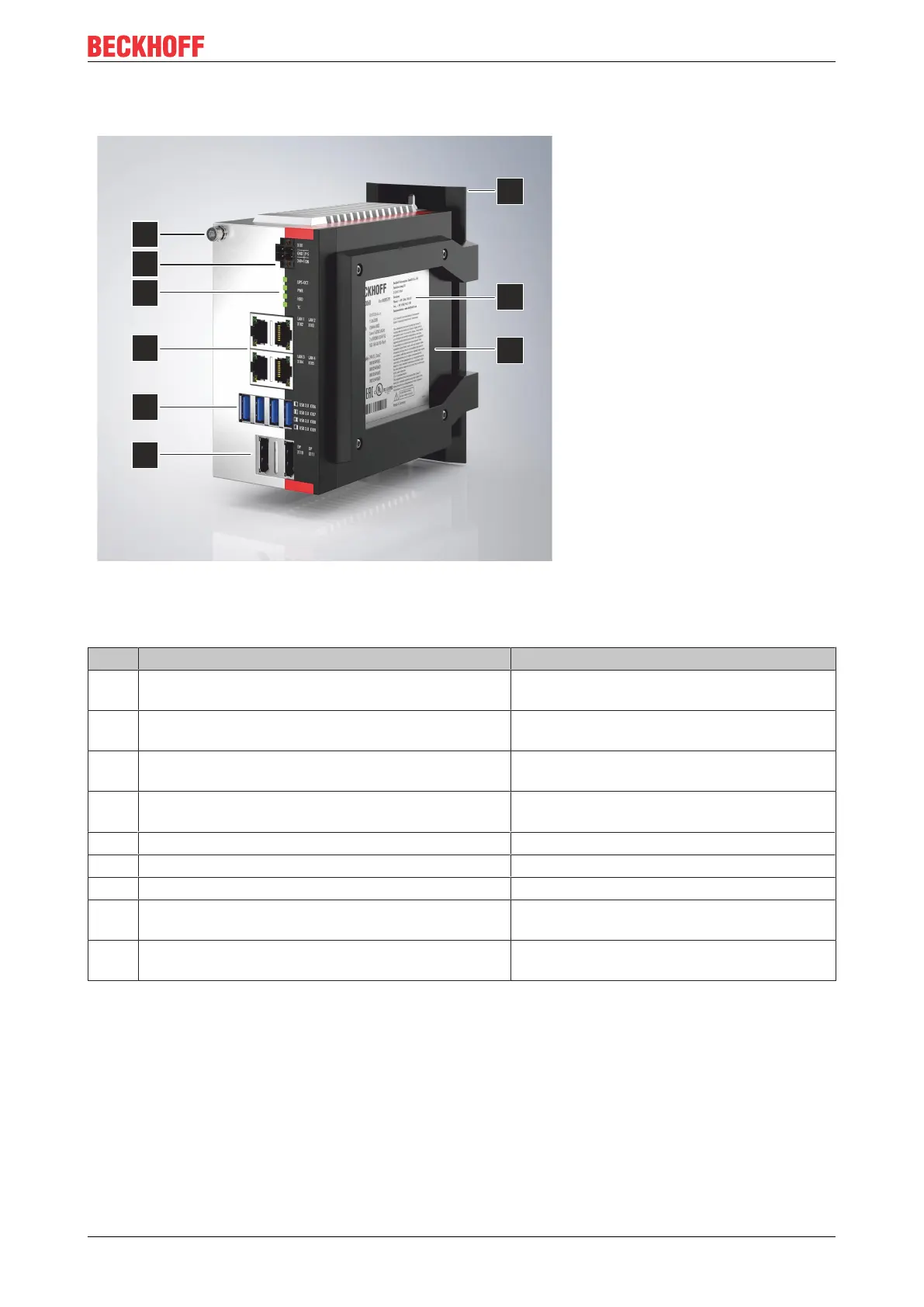

Fig.1: C6030_Structure – basic configuration
Table1: Key - C6030 structure
No. Component Description
1 Protective conductor connection PE Low-resistance protective earthing and
functional earthing of the Industrial PC
2 Power supply (X101) Connection of the power supply and external
wiring of the Industrial PC
3 Status LEDs Status display for UPS-OCT, power, hard disk,
TwinCAT
4 Ethernet interfaces RJ45 (X102 - X105) Connection of the Industrial PC to a
100/1000BASE-T network
5 USB interfaces (X106-X109) Connection of peripheral devices
6 DisplayPorts (X110, X111) Transmission of the video signal
7 Side cover Access to battery and storage media
8 Name plate Information on the equipment of the Industrial
PC
9 Mounting plate Plate for mounting the Industrial PC over the
narrow sides in the control cabinet
