Operation
EL6900
50
Version: 2.2.0
Create a new connection in the list of connections and create associated variables of the required type under
Module1 (FSoE).

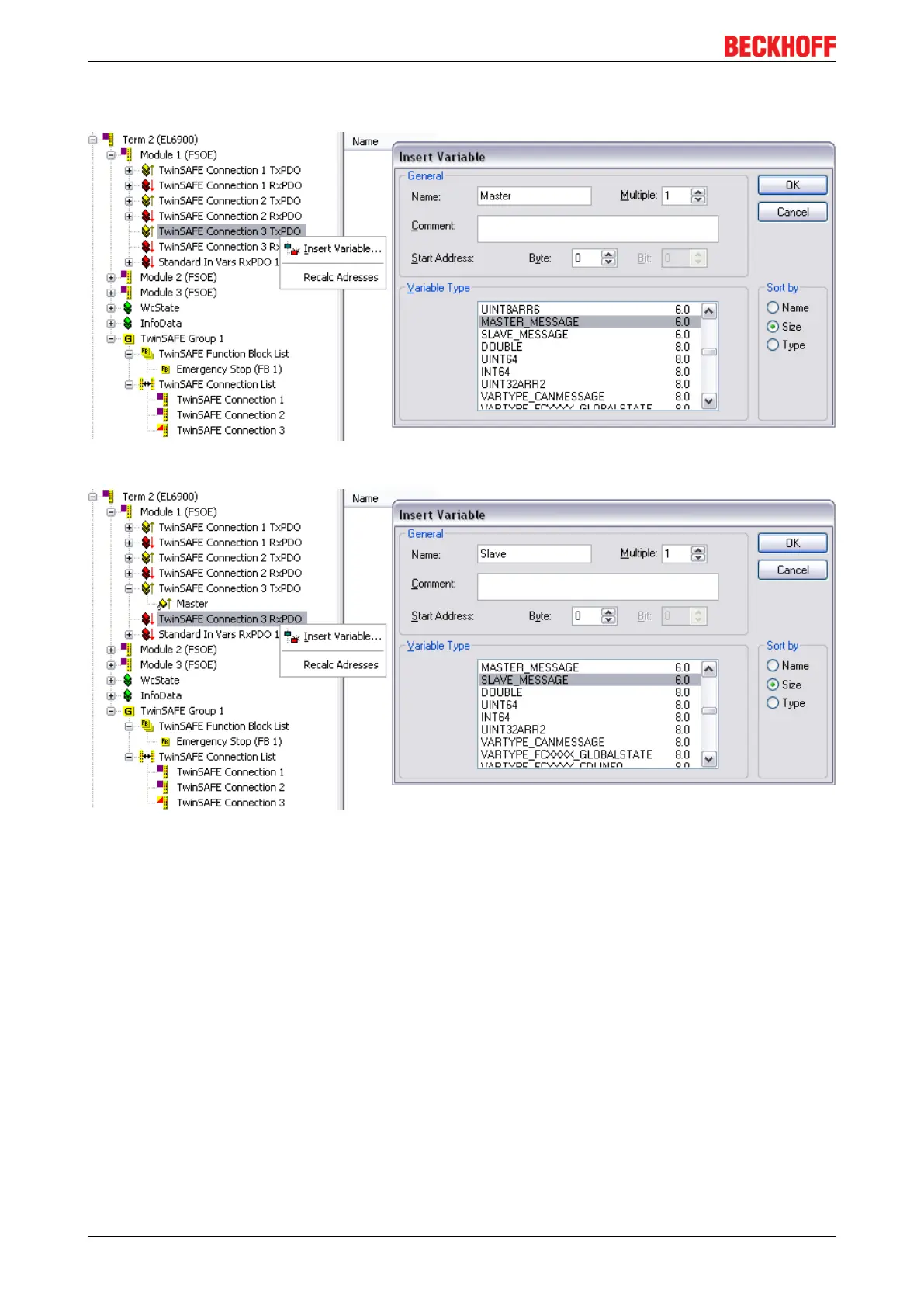

Fig.45: Creation of a variable for the master message
Fig.46: Creation of a variable for the slave message
These newly-created variables are now linked with the network variables already created. This is carried out
for both the master and the slave message.
