3.26.3.5 Scope recording of the sequence

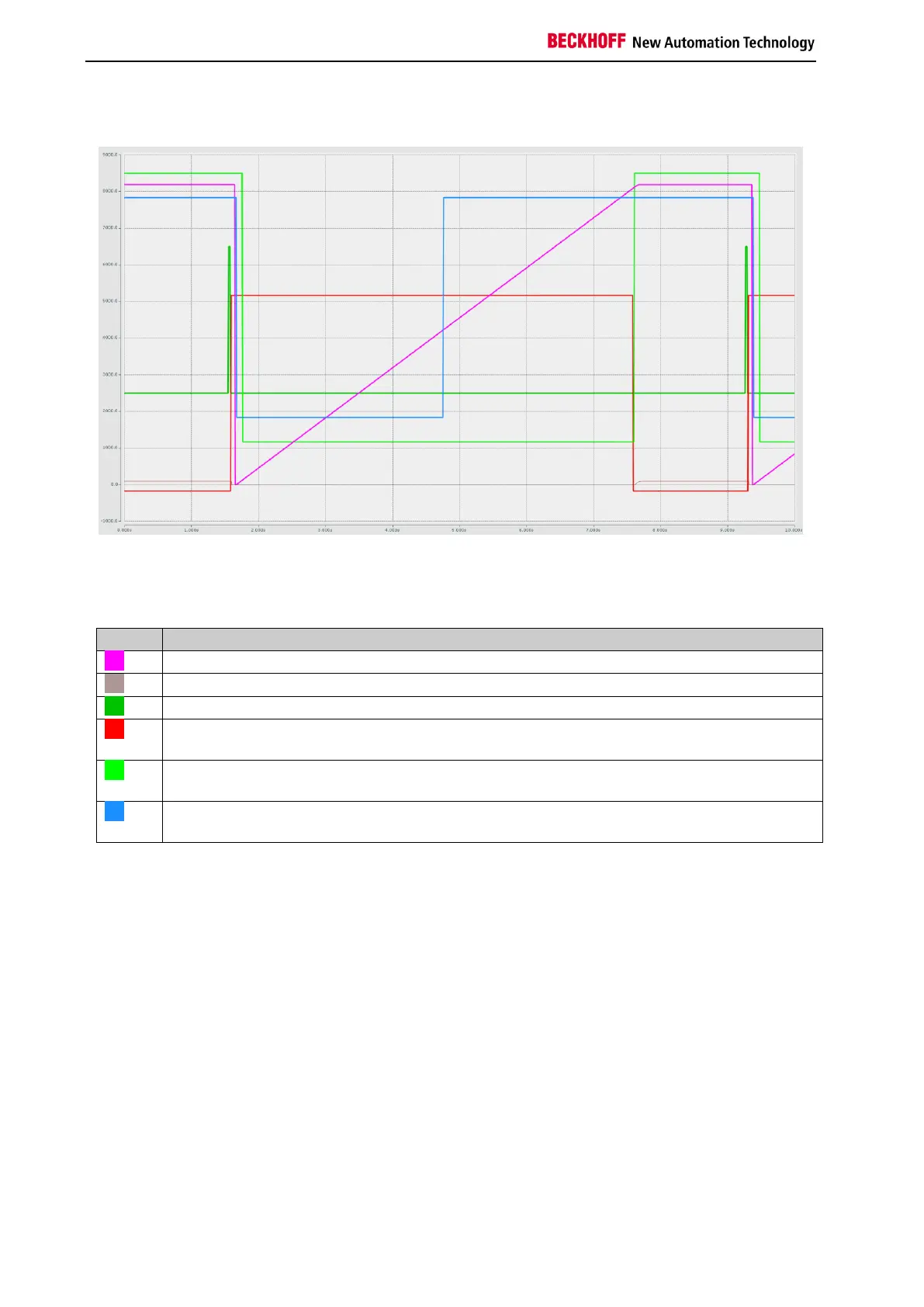

Figure 3-116: ScopeView display of the signal sequence
Color
Signal description
Current press position (here single-turn resolution 0 to 8192 increments)
OverrunTDC signal (change in position once TDC_LowerLimit is reached)
FB input CamReset (rising and falling edge before a motion may start)
FB input PressStarted (is set to 1 when the press motion is started and set to 0 when the
press is stopped.)
FB output TDC. Press is in top dead center (here set between 8092 and 100 increments).
Press 0° is 8192 or 0 increments.
FB output Upwards. Press is in upward movement. The signal is set when BDC is exited and
reset after 0° or 0 increments.
