Beckhoff TwinSAFE logic FB User Manual

Function blocks
Function blocks for TwinSAFE logic components 175
3.26.3.6 Cam Monitor function block excentric mode settings

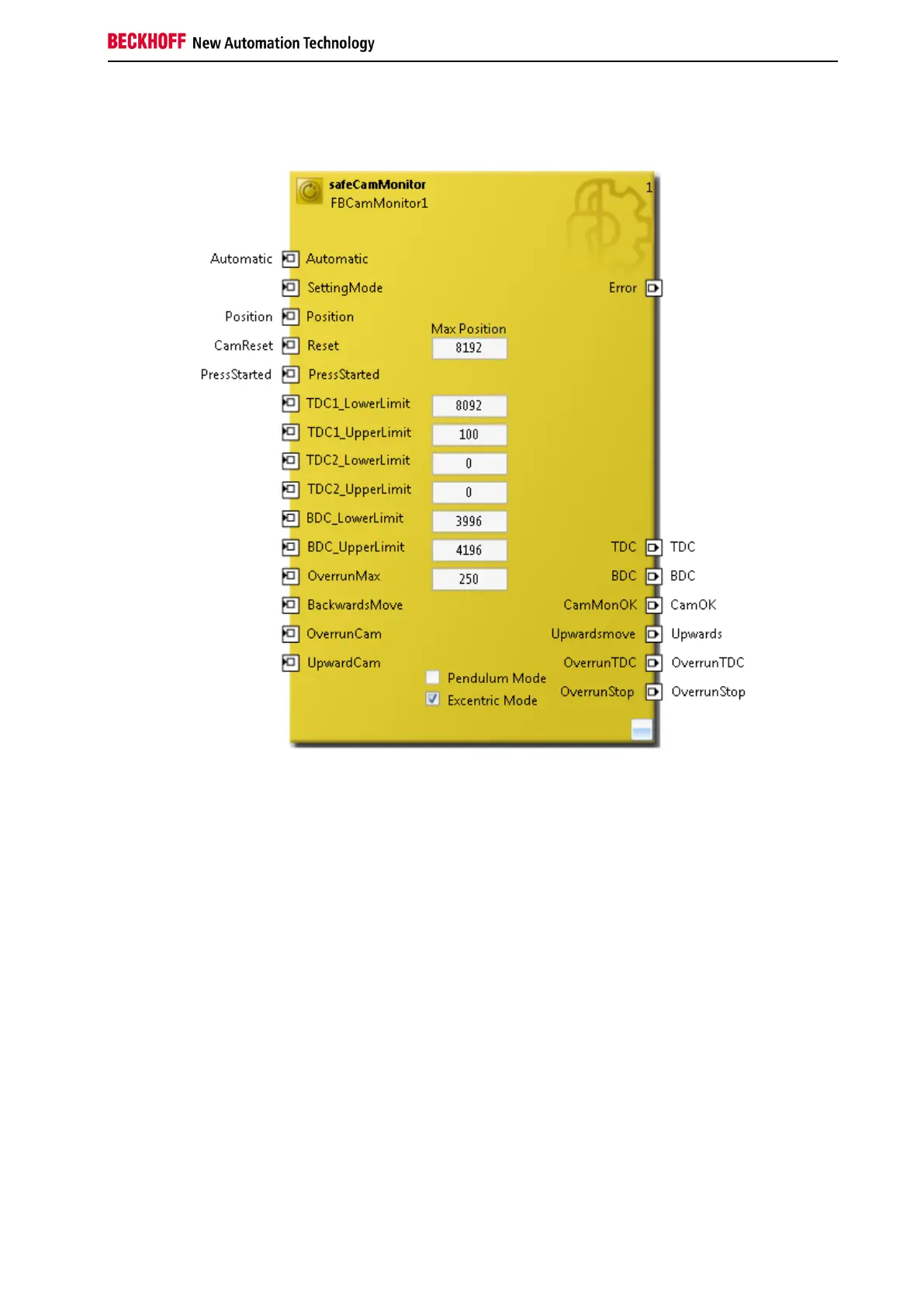

Figure 3-117: FB CamMonitor in excentric mode
Description of the fixed values of the sample configuration. The user must adjust these values according
to the hardware used.
The MaxPosition of 8192 increments is output in the event of a complete stroke by the encoder system
used. All other fixed values are derived from this MaxPosition (see schematic diagram of the ranges).
