3.26.5.5 CamMonitor function block hardware cam settings

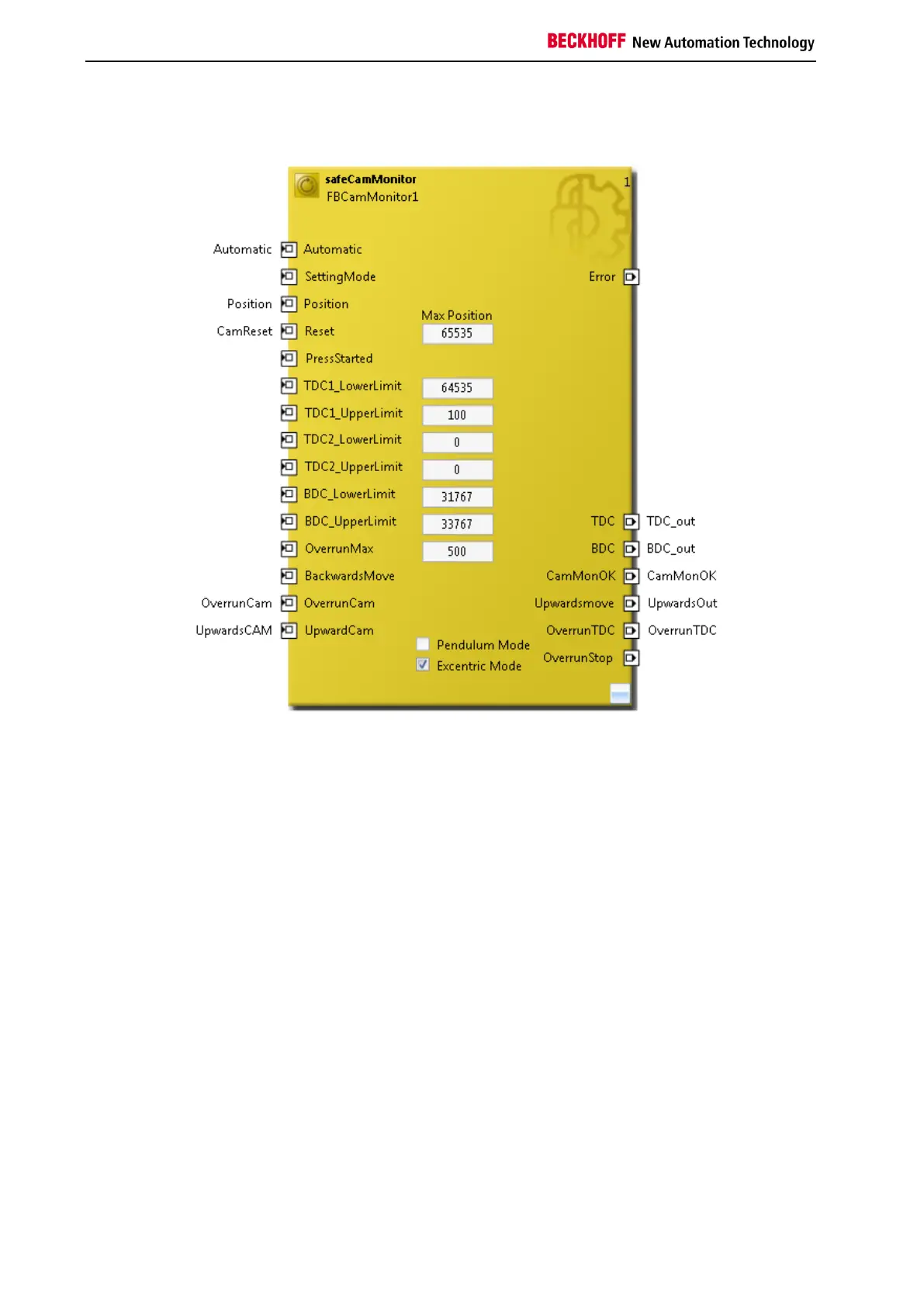

Figure 3-122: FB CamMonitor in excentric mode with hardware cams
Description of the fixed values of the sample configuration. The user must adjust these values according
to the hardware used.
The MaxPosition of 65535 increments is output in the event of a complete stroke by the encoder system
used. All other fixed values are derived from this MaxPosition (see schematic diagram of the ranges
excentric mode).
